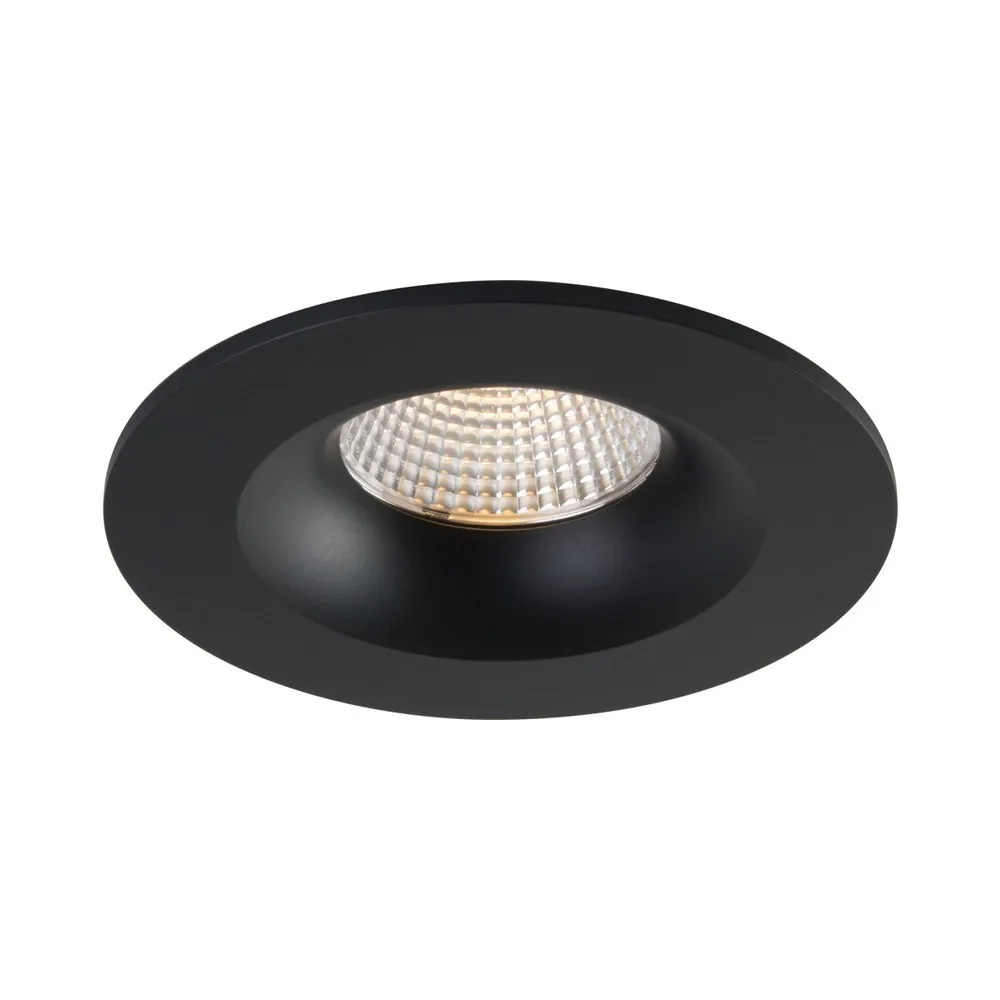

Built to last, built to breatheThe LUNA 3.5" fixed round downlight starts with a durable airtight fixed
aluminum body, a construction that keeps conditioned air where it belongs instead of leaking into the attic. An anodized blue heat sink sits directly behind the LED module to provide maximum airflow for the light source — heat management is what keeps colour stable and lumens steady over time, and it's why this
LED recessed fixture carries a projected life of 70% at 33,000 hours plus a Lifetime warranty. The black trim finish gives a low-glare, recessive look in a ceiling, especially over dark counters, stairwells or a media room.
Light quality and dim-to-warmThe 12 watt LED module maintains uniform intensity and produces up to 600 lumens, with a typical CRI of 90 for accurate, flattering colour rendering. The real signature here is
dim-to-warm: the colour temperature travels from 3000 K down to 2000 K as you lower the level, reproducing the warm candle-like glow of an incandescent on a dimmer. The lens delivers a 38° beam spread, tight enough to create defined pools on a counter or a feature wall, wide enough to lay out on regular centres for general ambient light. Efficiency lands at 57 lumens per watt with a power factor greater than 0.90.
Technical specificationsSKU: RA35-12F-90BK
Brand: LITELINE
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5⁄8" (92mm)
Class II: Yes
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus, LM79, LM80
Warranty: Lifetime
Colour: Black
Wiring, driver and installationPower comes from an extruded aluminum hardwire box housing a 300 mA dimmable Class II electronic LED driver with 100-135 V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings — handy for commercial retrofits and drop-ceiling offices. Three
Quick Connect push-in terminals make the line, neutral and ground connections fast, and two spring-loaded clips let the fixture attach to any ceiling material. The cut-out is Ø 3 5⁄8" (92 mm); overall fixture dimensions are 4 3⁄8" (111 mm) and 3 3⁄8" (85 mm), with 4 3⁄16" (106 mm), 3 1⁄16" (78 mm) and 15⁄16" (34 mm) references shown on the drawing. Because it is approved for direct contact with insulation and suitable for wet locations, it installs in insulated ceilings, showers and covered exteriors without extra enclosures. Pair it with standard TRIAC or ELV
dimmers for the full dim-to-warm effect.
Applications, compatible items and documentationThink kitchen perimeters and islands, hallways, walk-in closets, bathrooms and shower ceilings, basements, covered porches and soffits, plus offices, clinics, salons, cafés and retail displays where a 90 CRI beam makes merchandise look right. Accessories listed for this family are sold separately: the P-3520 3 5⁄8" round pre-mounting plate and P-3520NC new construction plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, RA35-XLRING-BK / BN / WH reducer rings for 3½" LUNA fixtures, VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel work, the SLM-60-FC 60" flexible connector and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V. To mix finishes or fixed colour temperatures across one project, see the
LUNA RA35-12F-DTW-90BK, the
white RA35-12F-DTW-90WH or the
3000 K RA35-12F-30K-90WH. The full technical PDF spec sheet is available in the Documentation tab for cut-out dimensions, ordering guide and installation details.
