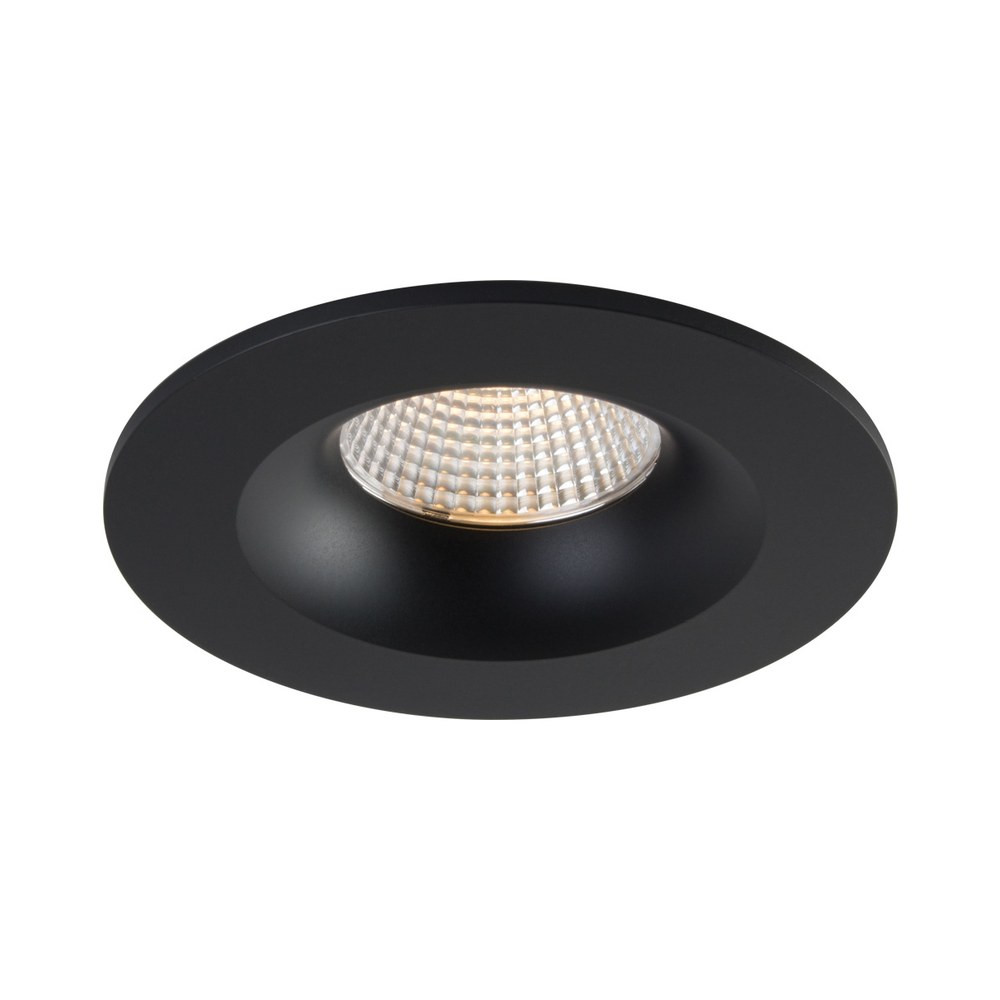

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-50K-90BK

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-50K-90BK
Brand: LITELINE
SKU: RA35-12F-50K-90BK
Price: 73.97 CAD
Availability: InStock

SKU: RA35-12F-50K-90BK

Brand: LITELINE

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture from LITELINE (SKU RA35-12F-50K-90BK) is the clean little downlight that finally makes a ceiling look finished. People call it a pot light, a recessed downlight, a round LED light or simply a can light — whatever you call it, this is the fixed, all-in-one version: aluminum body, integrated LED module, driver in its own hardwire box, and a black trim (the 90BK code) that quietly disappears into the ceiling instead of shouting for attention. It was built for real projects, residential and commercial alike, from a hallway full of dimmable LED downlights to a row of kitchen downlights over an island, a basement remodel, a retail entrance or a covered porch.

The numbers back up the good looks. A 12 watt LED module delivers up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and merchandise all read true. The fixture lens shapes a 38° beam spread, tight enough to give shape and sparkle, wide enough to layer comfortably. It runs on 100-135V AC, 50/60Hz, is dimmable with industry standard TRIAC/ELV dimmers, has a power factor greater than 0.90, and is rated for operating temperatures from -20 °C to 40 °C. The airtight body carries an anodized blue heat sink for maximum airflow around the LED, it is cETLus certified, Class II, LM79 and LM80 tested, projected at 70% output at 33,000 hours, and backed by a Lifetime warranty. Overall size is 4 3⁄8" (111 mm) with a 3 3⁄8" (85 mm) depth, and it drops into a Ø 3 5⁄8" (92 mm) hole cut.

Because it is suitable for wet locations and approved for direct contact with insulation, this one goes places smaller downlights usually can't: soffits, covered entries, bathrooms and showers, insulated ceilings in Canadian homes where every sealed penetration counts. Two spring-loaded clips grip any ceiling material, and three quick-connect push-in terminals make the wiring fast. Prefer a softer glow or a different trim colour? Compare it with the 3.5" LUNA recessed fixture RA35-12F-27K-90BK, the white RA35-12F-50K-90WH, or the dim-to-warm RA35-12F-DTW-90BK. Order your LUNA downlights and give that ceiling the finish it deserves.

Built like a tool, finished like a trim
The LUNA 3.5" starts with a durable airtight fixed aluminum body — no plastic can, no rattles. Inside, an anodized blue heat sink keeps air moving around the LED light source, which is exactly how a compact LED recessed fixture holds its output year after year instead of fading in a warm, insulated ceiling. The trim finish on this SKU is BK (black), part of a family that also includes Brushed Nickel, Silver and White. At 4 3⁄8" (111 mm) across and 3 3⁄8" (85 mm) deep, it slips into tight joist bays and low plenums where a 5 or 6 inch can simply won't go.

Light quality you can see
The 12 watt LED module produces up to 600 lumens with a uniform intensity across the lens and a typical CRI of 90, so colours stay honest under it — a real difference in kitchens, bathrooms, boutiques and galleries. The lens delivers a 38° beam spread, a controlled cone that works beautifully in rows over counters, in hallways, or aimed down a feature wall. Dimming is handled by TRIAC/ELV control with standard dimmers, and LM79 and LM80 testing means the photometric and lumen-maintenance claims are measured, not guessed. Projected life is 70% output at 33,000 hours.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Power factor: >0.90
Class II: Yes
Hole cut: Ø 3 5⁄8" (92 mm)
Dimensions: 4 3⁄8" (111 mm) x 3 3⁄8" (85 mm)
Operating temperature: -20 °C~40 °C (-4 °F~104 °F)
Certification: cETLus
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime
Trim finish: BK (Black)

Wiring and installation
The driver lives in an extruded aluminum hardwire box with a 300 mA dimmable Class II electronic LED driver, 100-135V AC input, and three "Quick connect" push-in terminals that turn wiring into a few seconds of work. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings — handy for commercial retrofits. Two spring-loaded clips hold the housing in any ceiling material, making this a true retrofit downlight for a Ø 3 5⁄8" (92 mm) hole. Accessories are sold separately: the P-3520 round pre-mounting plate and the P-3520NC new construction plate (both with driver attachment clip, for 3½" LUNA LED fixtures), the P-NCMK-1 new construction mounting kit with hanger bars, the RA35-XLRING-BK reducer ring for 3½" LUNA fixtures, and VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel work.

Where to use it, and what to read
Think tight, purposeful light: a grid of downlights over a kitchen island, a soffit line on a covered porch, shower and vanity lighting in a bathroom, corridor lighting in a condo, accent runs in a café or clinic. Because it is suitable for wet locations and approved for direct contact with insulation, it handles humid and insulated ceilings that defeat lesser fixtures. Match finishes across a project with the RA35-12F-90WH or the RA35-12F-40K-90BN in brushed nickel, or pair with the dim-to-warm RA35-12F-DTW-90WH in living spaces. The full technical PDF spec sheet is in the Documentation tab — check the hole cut, dimensions and dimmer compatibility before you cut a single ceiling.
