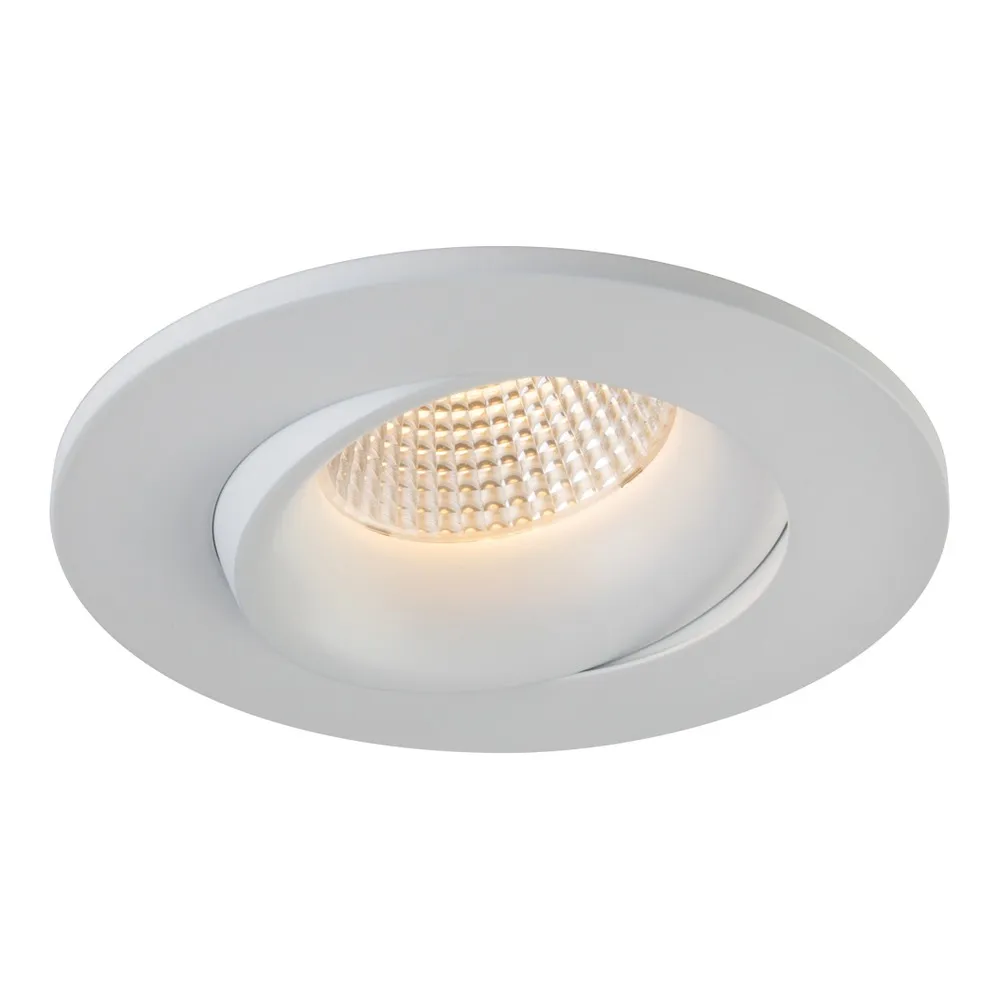

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-DTW-90WH

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-DTW-90WH
Brand: LITELINE
SKU: RA35-12G-DTW-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12G-DTW-90WH

Brand: LITELINE

Warm, flattering light that dims just like an old incandescent bulb — that's the promise of the 3.5" LUNA LED Round Recessed Fixture, model RA35-12G-DTW-90WH. This is the small-aperture recessed light people search for as a pot light, LED downlight or luminaire encastré: a round, gimbal-style LUNA housing in a clean white trim finish that sits nearly flush in the ceiling and puts the light exactly where you want it. It's a complete, easy-to-install downlighting solution for retrofit and new work alike, ideal when you want dimmable LED downlights that disappear into the ceiling and let the room — not the fixture — do the talking.

Under the hood, a 12 watt LED module delivers up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and food all look true. The dim-to-warm engine shifts the colour temperature from 3000 K down to 2000 K as you lower the dimmer, for that cozy candle-glow effect at night. A 38° beam spread keeps the light controlled and glare-free, and the fixture runs on a 300 mA dimmable Class II electronic driver with 100-135V AC, 50/60 Hz input, compatible with industry-standard TRIAC/ELV dimmers. The body is durable airtight aluminum with an anodized blue heat sink for maximum airflow, it fits a Ø 3 5⁄8" (92 mm) hole cut, measures 4 3⁄8" (111 mm) across and comes with an 18" (457 mm) FT6-rated cable. Power factor is greater than 0.90, projected life is 70% @ 33,000 hrs, it's cETLus certified, LM79 and LM80 tested, suitable for wet locations, approved for direct contact with insulation, and backed by a Lifetime warranty.

That combination makes it a natural in kitchens, hallways, bedrooms, living rooms, stairwells and finished basements, and just as comfortable in boutiques, restaurants, clinics and offices. Because it's wet-location rated and IC-approved, Canadian homeowners can run the same trim from the living room into the shower, over a soaker tub, or out under a covered porch or soffit. Operating temperature range is -20°C~40°C (-4°F~104°F). Pair it with matching black or brushed nickel LUNA fixtures like the 3.5" LUNA LED round recessed fixture RA35-12G-DTW-90BK or the 3.5" LUNA LED round recessed fixture RA35-12G-DTW-90BN, or add the fixed white version 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90WH to your layout. Plan your ceiling grid and order your LUNA downlights today.

Built to last, built to breathe
The LUNA 3.5" starts with a durable airtight aluminum body — no flimsy plastic — paired with an anodized blue heat sink that maximizes airflow around the LED light source. Cooler LEDs mean steadier lumen output and colour over time, which is why this LED pot light carries a projected life of 70% @ 33,000 hrs and a Lifetime warranty. Two spring-loaded clips are included so the fixture grips any ceiling material, and the whole assembly slips into a Ø 3 5⁄8" (92 mm) hole cut with a 4 3⁄8" (111 mm) overall diameter, 3 3⁄8" (85 mm) and 3 1⁄16" (78 mm) body dimensions and a 4 3⁄16" (106 mm) / 15⁄16" (34 mm) hardwire box profile.

Light quality and the dim-to-warm effect
The 12 watt LED module produces up to 600 lumens with a typical CRI of 90, so colours read honestly — an important detail above a kitchen island, a retail display or a bathroom mirror. What sets this SKU apart is dim-to-warm: the colour temperature travels from 3000 K down to 2000 K as you dim, mimicking the warm glow of a halogen or incandescent source at low levels. The lens delivers a controlled 38° beam spread, tight enough for accenting a counter or artwork, soft enough for general room lighting when the fixtures are spaced properly.

Electrical, driver and installation
Power comes from an extruded aluminum hardwire box housing a 300 mA dimmable Class II electronic LED driver with 100-135V AC, 50/60 Hz input and a power factor greater than 0.90. An 18" (457 mm) FT6-rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast — a real time-saver when you're installing a dozen recessed downlights in one afternoon. Dimming is TRIAC/ELV; for compatible dimmers, consult the manufacturer's LUNA dimmer list. Operating temperature range is -20°C~40°C (-4°F~104°F).

Technical specifications
Model: RA35-12G-DTW-90WH
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K (dim-to-warm)
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Class II: Yes
Power factor: >0.90
Hole cut: Ø 3 5⁄8" (92mm)
Trim finish: White (WH)
Projected life: 70% @ 33,000 hrs
Certification: cETLus, LM79, LM80
Warranty: Lifetime

Applications, accessories and documentation
Wet-location rated and approved for direct contact with insulation, this downlight works above a shower, over a tub, in a covered entry or soffit, and straight through the rest of the house — kitchens, corridors, stairs, bedrooms, basements — as well as in restaurants, salons, clinics, offices and boutiques where warm dimming sets the mood. Liteline lists accessories sold separately for the 3½" LUNA platform: the P-3520 round pre-mounting plate and P-3520NC new construction plate with driver attachment clip, the P-NCMK-1 new construction mounting kit with hanger bars and brackets, RA35-XLRING-BK / BN / WH reducer rings, VBE-1 to VBE-4 vapour barrier extenders and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V. Building a mixed-finish layout? See the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90BK, the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90BN or the non-dim-to-warm 3.5" LUNA LED round recessed fixture RA35-12G-90WH. The full technical PDF spec sheet for RA35-12G-DTW-90WH is in the Documentation tab.
