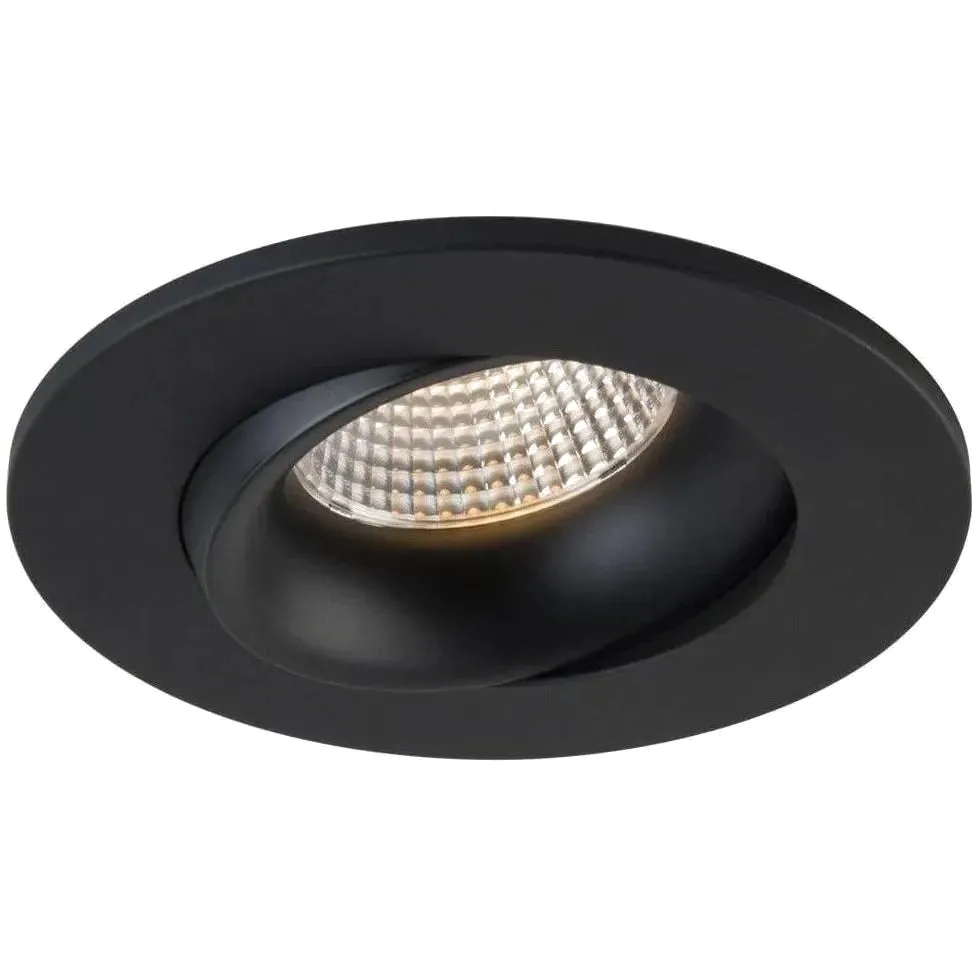

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-DTW-90BK

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-DTW-90BK
Brand: LITELINE
SKU: RA35-12G-DTW-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12G-DTW-90BK

Brand: LITELINE

Warm, candle-like light at the turn of a dimmer — that's the magic of the LUNA 3.5" round recessed fixture RA35-12G-DTW-90BK from LITELINE. Call them what you like: pot lights, recessed downlights, round LED lights or simply dimmable LED downlights — this compact black-trim downlight is the small-aperture solution homeowners, renovators and contractors keep coming back to. Its dim-to-warm LED module glows at 3000 K when you need bright, clean light and drops all the way down to 2000 K as you dim, mimicking the cozy amber of an incandescent bulb. Perfect for kitchens, living rooms, hallways, bathrooms and any space where you want one fixture to handle both everyday tasks and late-evening ambiance.

Under the trim, this fixture packs a 12 W LED module delivering up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and food all look true. The lens produces a controlled 38° beam spread, ideal for clean, repeatable ceiling layouts. The airtight fixed aluminum body includes an anodized blue heat sink for maximum airflow around the LED source, and the extruded aluminum hardwire box holds a 300 mA dimmable Class II electronic driver with 100-135V AC, 50/60 Hz input and a power factor greater than 0.90. It comes with an 18" (457 mm) FT6-rated cable with DC 2.1 connector approved for plenums and suspended ceilings, plus three quick-connect push-in terminals for fast wiring. Dimming is TRIAC/ELV compatible. It is cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for -20°C~40°C operation, projected at 70% @ 33,000 hrs and backed by a lifetime warranty.

This little black downlight shines over kitchen islands and counters, in en-suite showers, covered porches and three-season rooms, in condo hallways, boutiques, cafés, clinics and offices — anywhere a discreet 3.5" aperture beats a bulky 6" can. Its wet-location and insulated-ceiling approvals suit Canadian builds where airtight ceilings and vapour barriers matter. Cut hole is Ø 3 5/8" (92 mm) and two spring-loaded clips grip any ceiling material. Need a different look or a different feel? The same fixture is offered in 3.5" LUNA LED round recessed fixture - RA35-12G-DTW-90WH and 3.5" LUNA LED round recessed fixture - RA35-12G-DTW-90BN, or in a fixed 3000 K version with 3.5" LUNA LED round recessed fixture - RA35-12G-90BK. Order your RA35-12G-DTW-90BK today and give your ceiling the warm glow it deserves.

Built to last, built to disappear into the ceiling
The LUNA 3.5" recessed downlight is built around a durable airtight fixed aluminum body — no plastic housing, no rattles, no air leaks through the ceiling plane. Inside, an anodized blue heat sink keeps air moving around the LED source, which is exactly what protects long-term light output and colour stability. The trim is finished in black (BK), a favourite for contemporary ceilings, dark accent walls and spaces where you want the aperture to read as a quiet dot rather than a bright ring. Two spring-loaded clips are included and grip any ceiling material, so the fixture sits tight to drywall, plaster or panel without fuss.

Dim-to-warm light quality
This is a dim-to-warm fixture: colour temperature travels from 3000 K down to 2000 K as you lower the dimmer, so a room that feels crisp and functional at dinner prep becomes candle-soft by the end of the night. The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, a high-fidelity rendering level that flatters wood, stone, textiles and skin tones. The lens delivers a 38° beam spread — tight enough to create clean pools of light on a counter or island, wide enough to layer comfortably at standard ceiling heights. Dimming is compatible with industry-standard TRIAC/ELV dimmers.

Technical specifications
SKU: RA35-12G-DTW-90BK
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming tech: TRIAC/ELV
Class II: Yes
Power factor: >0.90
Hole cut: Ø 3 5/8" (92mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime

Wiring and installation
The extruded aluminum hardwire box houses a 300 mA dimmable Class II electronic LED driver with 100-135V AC input, and three "Quick connect" push-in terminals make the line, neutral and ground connections in seconds — a real time-saver when you're running a dozen pot lights down a hallway. An 18" (457 mm) FT6-rated cable with DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. The fixture is approved for direct contact with insulation and suitable for wet locations, so it can go in a shower ceiling or a covered exterior soffit. Overall fixture dimensions are 4 3/8" (111 mm) and 3 3/8" (85 mm), with a 4 3/16" (106 mm) and 3 1/16" (78 mm) hardwire box and a 15/16" (34 mm) profile — plan a Ø 3 5/8" (92 mm) hole cut.

Accessories, matching fixtures and documentation
Liteline lists a range of accessories for this platform (sold separately): the P-3520 pre-mounting plate and P-3520NC new construction plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, RA35-XLRING-BK, RA35-XLRING-BN and RA35-XLRING-WH reducer rings for 3½" LUNA fixtures, VBE-1 through VBE-4 vapour barrier extenders for new construction and remodel work, the SLM-60-FC 60" flexible connector and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V. To mix finishes in the same layout, pair it with 3.5" LUNA LED round recessed fixture - RA35-12G-DTW-90WH or 3.5" LUNA LED round recessed fixture - RA35-12G-DTW-90BN; for fixed colour temperature in the same black trim, see 3.5" LUNA LED round recessed fixture - RA35-12G-90BK or 3.5" LUNA LED round recessed fixture - RA35-12F-27K-90BK. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit packages.
