3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-40K-90WH

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-40K-90WH
Brand: LITELINE
SKU: RA35-12F-40K-90WH
Price: 73.97 CAD
Availability: InStock

SKU: RA35-12F-40K-90WH

Brand: LITELINE

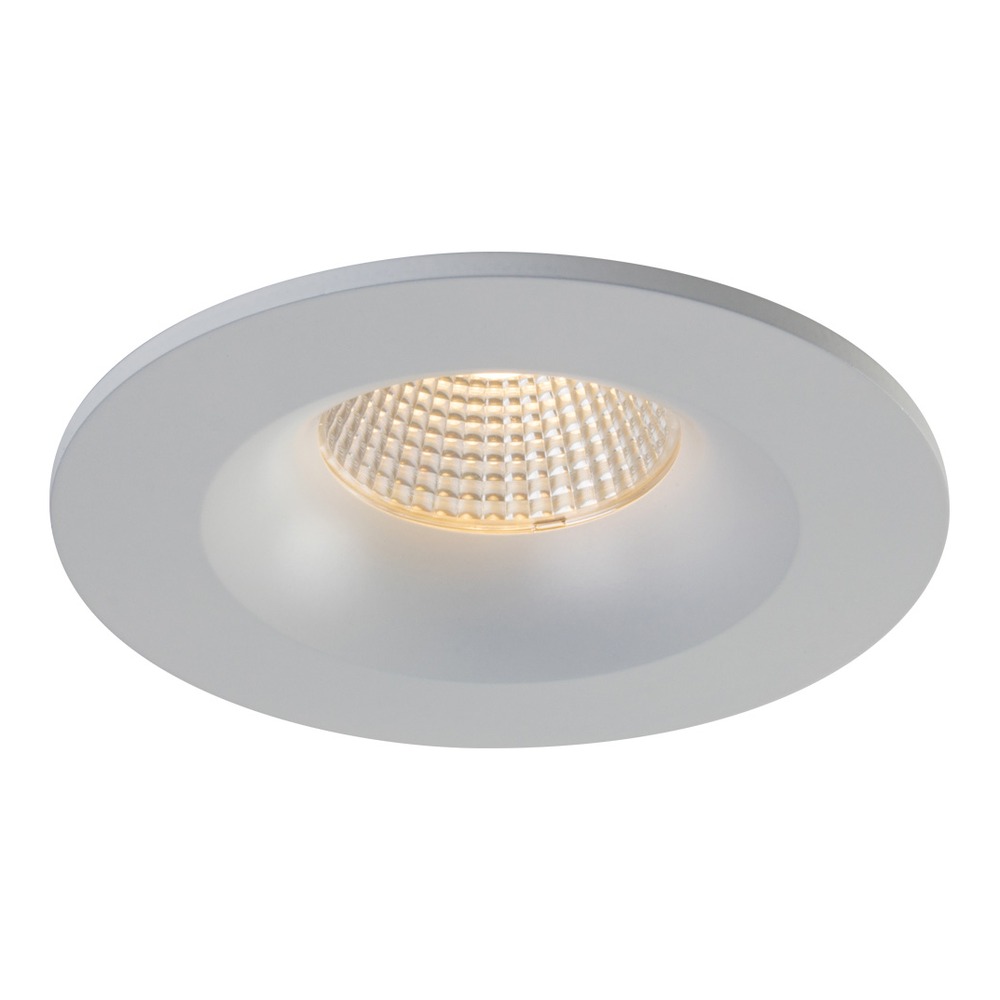

Small aperture, big impact: the 3.5" LUNA LED round recessed fixture RA35-12F-40K-90WH is the discreet LED pot light that finally lets your ceiling breathe. People call them recessed lighting, downlights, round LED lights or simply pot lights — whatever name you use, this is the fixed round LUNA downlight from LITELINE in a clean white trim, built for retrofit and new work alike. It slips into a 3 5/8" hole, disappears into the ceiling and leaves only a crisp circle of light behind, which makes it a favourite for kitchen downlights, hallways, bedrooms, offices and retail ceilings where a 6" can would simply look too heavy.

This is a 12W LED downlight producing up to 600 lumens, a real 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and merchandise all look the way they should. The 38° beam spread gives you controlled, comfortable pools of light instead of glare. It runs on 100-135V AC, 50/60Hz through a 300mA Class II electronic driver, and it is a dimmable LED downlight compatible with industry standard TRIAC/ELV dimmers. The airtight aluminum body carries an anodized blue heat sink, the fixture measures 4 3/8" (111mm) across with a 15/16" (34mm) profile above the ceiling, and it is cETLus certified, suitable for wet locations and approved for direct contact with insulation (IC). Power factor is greater than 0.90, projected life is 70% at 33,000 hours, and it is backed by a Lifetime warranty.

Because it is rated for wet and insulated ceilings and operates from -20°C to 40°C (-4°F to 104°F), this LUNA works in a Québec bathroom ceiling, a covered porch, a basement reno under blown insulation or a shop soffit. Two spring-loaded clips grab any ceiling material and three quick-connect push-in terminals make the wiring fast — ideal for contractors doing a full floor of pot lights in a day. Matching trims are available across the family, including the 3.5" Luna LED round recessed fixture RA35-12F-40K-90BN in brushed nickel, and warmer options such as the 3.5" Luna LED round recessed fixture RA35-12F-30K-90WH. Plan your layout and order your LUNA downlights today.

Built to last, built to install fast
The LUNA 3.5" fixed round downlight is made around a durable airtight fixed aluminum body with an anodized blue heat sink that keeps airflow moving across the LED light source — the simplest way to protect lumen output and colour over the years. The white trim finish blends into painted drywall ceilings, and the compact footprint of 4 3/8" (111mm) overall with a 3 3/8" (85mm) trim face keeps the visual clutter down. Above the ceiling it only needs 15/16" (34mm) of height at the fixture, so it fits tight joist bays and low plenums where a traditional can never would.

Light quality you can see
The 12 watt LED module maintains uniform intensity and delivers up to 600 lumens with a typical CRI of 90, which means truer reds, richer woods and no washed-out faces in the bathroom mirror. The lens produces a 38° beam spread, a controlled distribution that layers nicely on 4 ft centres over counters, islands and hallways without hot spots on the walls. Efficiency lands at 57 lumens per watt with a power factor greater than 0.90, and both LM79 and LM80 testing are on file for this platform — real data for spec-driven projects.

Electrical and installation details
An extruded aluminum hardwire box houses a 300mA dimmable Class II electronic driver with 100-135V AC input, joined to the fixture by an 18" (457mm) FT6 rated cable with a DC 2.1 connector approved for use in plenums and suspended ceilings. Three quick-connect push-in terminals make wiring fast on site, and two spring-loaded clips let the fixture mount to any ceiling material. The hole cut is Ø 3 5/8" (92mm). Dimming is TRIAC/ELV, so it pairs with the standard wall dimmers most homes already have.

Technical specifications
SKU: RA35-12F-40K-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Hole cut: Ø 3 5/8" (92mm)
Power factor: >0.90
Projected life: 70% @ 33,000 hrs
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, Class II
Warranty: Lifetime

Applications, accessories and documentation
Use it over a kitchen island, in a walk-in closet, along a hallway, in a condo entryway, in a showroom or in a shower ceiling — it is approved for wet locations and for direct contact with insulation, so bathrooms, covered entries and insulated attic ceilings are all fair game across Canadian climates. Accessories are sold separately and include the P-3520 round pre-mounting plate and the P-3520NC new construction plate with driver attachment clip for 3 1/2" LUNA fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, RA35-XLRING reducer rings in black, brushed nickel or white, and VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel work. Want the same housing with colour temperature dimming? Look at the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90WH or the black 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BK. The full technical PDF spec sheet for RA35-12F-40K-90WH is in the Documentation tab for your submittals.
