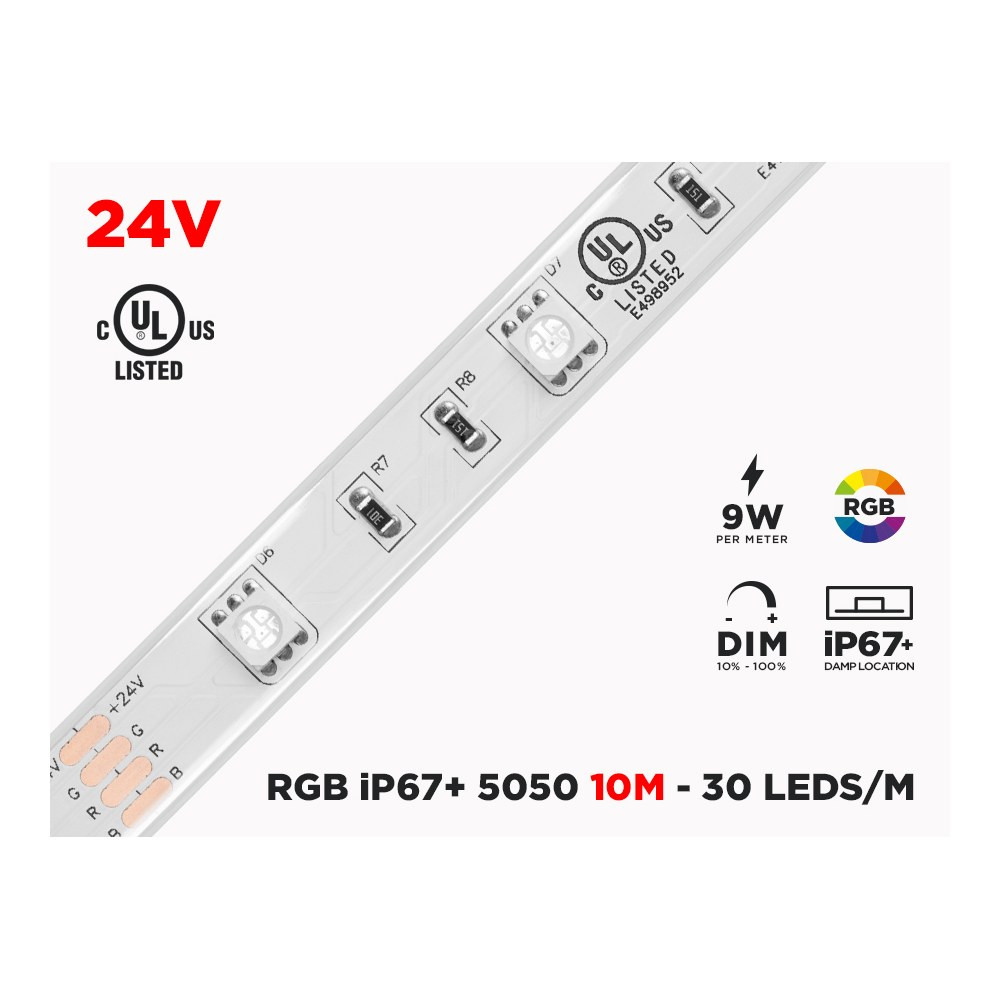

24V 10M IP67 RGB 5050 LED STRIP - 30 LEDS/M (STRIP ONLY)

Name: 24V 10M IP67 RGB 5050 LED STRIP - 30 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: UL24RGB10M
Price: 127.97 CAD
Availability: InStock

SKU: UL24RGB10M

Brand: LED MONTREAL

Turn any room, deck or gazebo into a colour show with the 24V 10M IP67 RGB 5050 LED STRIP - 30 LEDS/M (STRIP ONLY), SKU UL24RGB10M by LED MONTREAL. If you have been searching for led strip lights, led light strips, led strip lighting or simply a long run of colour-changing tape light, this is the continuous 10-meter roll that does the job without splices in the middle. Built on the CDNLUX platform (model MTL-FP10AGIWM-30ARGB), it uses Epistar 5050 RGB SMD chips that mix red, green and blue inside every single chip, so one strip gives you a full palette of colours instead of a single fixed shade. It is sold as the strip only, which is exactly what you want when you already own a low voltage power supply and an RGB controller, or when you are planning your own custom system.

The numbers behind the glow: 24V DC low voltage operation, 30 LEDs per meter, 7.2W per meter of power consumption with a recommended power supply sized at 9W/m, and a wide 120° lighting angle that spreads colour evenly instead of leaving hot spots. The roll measures 10 meters long, 12mm wide and only 5mm high, so it hides beautifully in a cove, a channel or under a cabinet lip. It is rated iP67 and suitable for dry and humid environments, indoor and protected outdoor use, with an operating range of 40C to -10C. A 2-ounce circuit board helps it run cool, the 3M self-adhesive backing sticks where you put it, and it is cULus certified for Canada and USA (E498952) with a rated lifespan of 50 000+ hours. It can be cut every 6 LEDs (165.5mm) and it is dimmable with a low voltage controller/remote combo.

This strip is made for Canadian homes and businesses: gazebos, covered terraces, the awning of an RV, basement ceilings, bar fronts, retail displays, gaming rooms and accent coves. Because it is a 24V low voltage RGB tape, it pairs with any compatible low voltage RGB power supply, RGB controller and remote, plus aluminum profiles or extrusions if you want a finished, protected look. It ships with a 4 pin male connector (17cm) on one end and a 4 pin female connector (17cm) on the other, so extending or linking runs stays simple. Plan your run, add your controller and power supply, and light your space in the colours you actually want.

Sold separately
To complete the installation, add:
Power supply: PWR24V05A, PWR24V1A, PWR24V36W, PWR24V2A, PWR24V3A, PWR24V4A, PWR24V5A

Built for long, clean runs
This is a continuous 10-meter roll, not several short pieces you have to join. The flexible circuit board is 12mm wide and just 5mm high, with a 2-ounce copper circuit board that helps carry current and manage heat over a long run. The iP67 encapsulation seals the 5050 RGB chips against dust and moisture, which is why this led strip lighting is rated for dry and humid environments, indoor and protected outdoor use. The 3M self-adhesive backing lets you press the strip directly onto a clean, dry surface, and heat dissipation is not necessary unless the strip is used in a commercial environment, where an aluminum channel is the smart move.

Colour, not just light
Each Epistar 5050 RGB SMD chip holds a red, a green and a blue emitter. By mixing those three at different levels, the strip produces a huge range of colours — how many exactly depends on the RGB controller you choose. The 120° lighting angle spreads that colour wide and smooth, ideal for coves, valances and backlighting where you do not want visible dots of light. One thing to keep in mind: an RGB chip does not create a true white. If you want both colour effects and a clean ambient white on the same run, plan for an RGBW solution instead, or add a separate white strip alongside this one.

Technical specifications
SKU: UL24RGB10M
Brand: CDNLUX
Model: MTL-FP10AGIWM-30ARGB
Certification: cULus for Canada and USA E498952
Chip: Epistar 5050 RGB SMD
Circuit board: 2 Ounces
Chip density: 30 LEDs per meter
Can be cut: all 6 LEDs (165.5mm)
Length: 10 meters
Width: 12mm
Height: 5mm
Voltage: 24V DC
Power consumption: 7.2W/m
Recommended power supply: 9W/m
Color: RGB (Red, Green, Blue)
Lighting angle: 120°
Lifespan: 50 000+ hours
Self-adhesive: 3M
iP rating: iP67
Operating temperature: 40C to -10C
Dimmable: yes, with a low voltage controller/remote combo

Electrical and installation notes
The strip runs on 24V DC, so you need a low voltage power supply sized for your run: at 7.2W/m consumption, the recommended sizing is 9W/m, which gives the driver headroom. An RGB controller with remote sits between the power supply and the strip and handles both the colours and the dimming. Connections are already made easy: a 4 pin male connector (17cm) is fitted on one end and a 4 pin female connector (17cm) on the other. You can shorten the strip at the marked cut points every 6 LEDs (165.5mm) — cut only on the line, and re-seal any cut end used outdoors. Wipe the mounting surface before sticking the 3M adhesive, and for ceilings, commercial installs or any surface where adhesive alone may let go over time, mount the strip in an aluminum profile with clips.

Where it works and what to read
Think gazebo perimeters, covered patios and terraces, the awning of an RV, basement and garage ceilings, staircases, toe-kicks, home theatres, bar fronts, restaurant booths, retail shelving and window displays — anywhere a colour changing led strip adds mood without a renovation. Ten meters covers a large room perimeter or a long deck edge in one shot. With a rated 50 000+ hours of life and cULus certification for Canada and USA, it is a safe pick for both residential and commercial projects. The full technical PDF for this model is available in the Documentation tab of this page — keep it handy for dimensions, cut points and power supply sizing before you start your layout.

Technical Files
