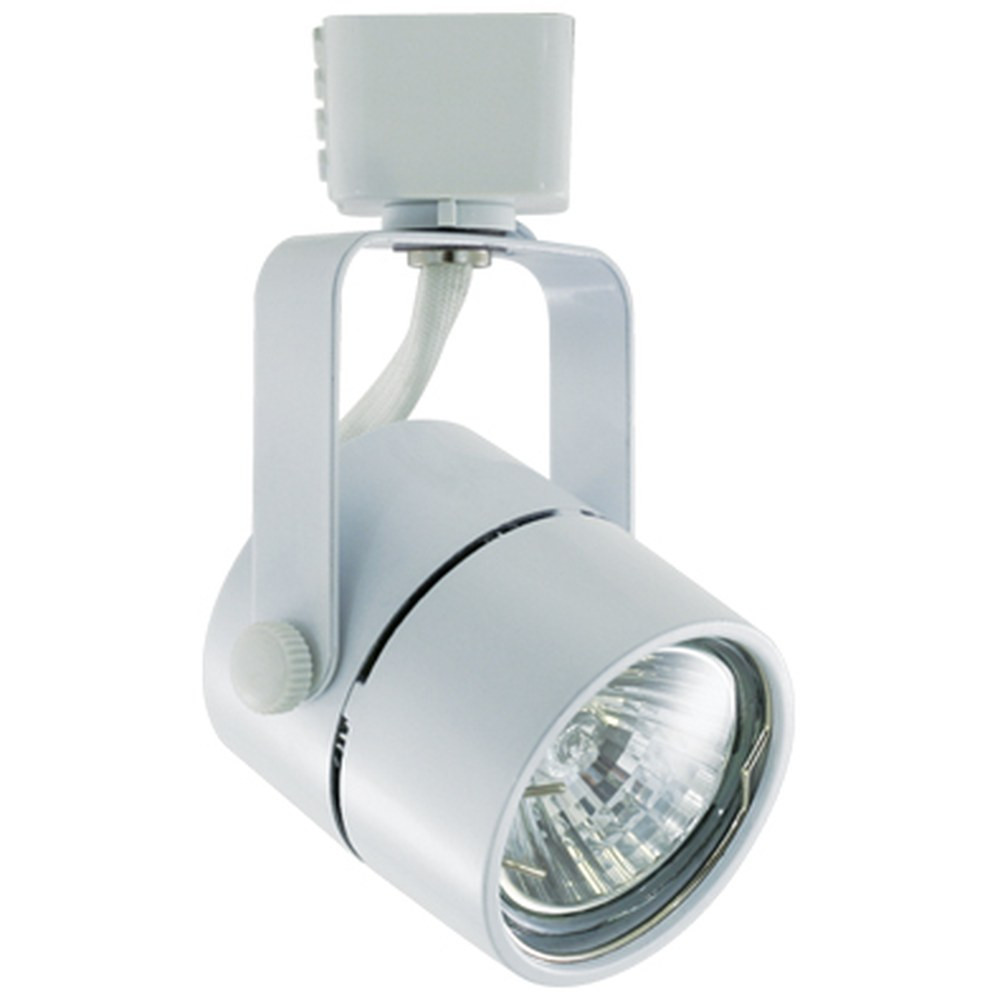

SORA TRACK FIXTURE - SO2012-WH-120V

Name: SORA TRACK FIXTURE - SO2012-WH-120V
Brand: LITELINE
SKU: SO2012-WH-120V
Price: 43.97 CAD
Availability: InStock

SKU: SO2012-WH-120V

Brand: LITELINE

Give your track a head that actually looks good and aims exactly where you want it: meet the SORA Low Voltage Track Fixture from LITELINE, in a crisp white finish. This is the classic track lighting head — also called a track light head, track spot or directional track head — with a clean cylindrical shape and a traditional look that blends into any ceiling instead of fighting it. It slides onto your existing track rail and instantly turns a flat, evenly-lit room into a space with focus: art on the wall, a kitchen island, a display shelf, a retail counter. Whether you're adding one more head to an existing run or building a whole new track system from scratch, this is the workhorse you reach for.

The body is constructed of die cast aluminum for superior strength and rigidity, with softened edges for a low-profile aesthetic and serrated sides so you can grip and aim it without a fight. Inside, a solid state electronic transformer gives you noise-free voltage reduction: 120V AC to 12V AC, 120V / 60Hz input, 12V output, 50W maximum load — no buzzing, no hum over your dinner table. The porcelain socket takes 12V MR16 lamps, 50 watts max, and a high temperature glass shield comes included, mounted to the front of the fixture. The adjustable yoke gives you custom aiming with 330° horizontal rotation and 90° vertical rotation, and the fixture is dimmable when used with electronic low voltage rated dimming controls only. It's cULus listed.

SORA earns its keep in living rooms, hallways, kitchens, home galleries, boutiques, cafés, salons and small showrooms — anywhere a Canadian homeowner or contractor needs light pointed at something specific. LITELINE track fixtures are compatible with Juno®, Halo® and most brands configured to Halo® track system design, so it drops onto the track you already have. SKU SO2012-WH-120V is the white version; the same head is also offered in Sora track fixture black and Sora track fixture brushed nickel if you're mixing finishes across a project. Add your heads, aim, dim — and see the difference tonight.

Sold separately
To complete the installation, add:
Channel / profile: TK6002-BK, TK6004-BK, TK6006-BK, TK6008-BK, TK6002-WH, TK6004-WH, TK6006-WH, TK6008-WH

Built to be handled, built to last
The SORA track head is constructed of die cast aluminum, a material chosen for superior strength and rigidity — important on a fixture people physically grab and re-aim over the years. The softened edges create the low profile aesthetic that makes SORA disappear against a white ceiling, while the serrated sides give your fingers something to hold onto when you're tilting the head from a ladder. The cylindrical shape and clean traditional look make this directional track head an easy fit in a renovation where you don't want the lighting to shout.

Low voltage done quietly
Each fixture carries its own solid state electronic transformer, which provides noise-free voltage reduction and operation, converting 120V AC to 12V AC right at the head. That means no remote transformer to hide in a ceiling cavity and no audible hum in a quiet dining room or a boutique fitting area. Lamping is done through a porcelain socket for 12V MR16 lamps, 50 watts max, and a high temperature glass shield is included and mounted to the front of the lamp fixture. Because the lamp is a standard MR16, you can tune the look of the room simply by changing beam spread — tight for artwork, wider for a countertop.

Technical specifications
SKU: SO2012-WH-120V
Brand: LITELINE
Series: SORA Low Voltage Track Fixture
Finish: White
Body: Die cast aluminum
Input: 120V / 60Hz
Output: 12V
Maximum load: 50W
Transformer: Solid state electronic, 120V AC to 12V AC
Socket: Porcelain, for 12V MR16 lamps, 50 watts max
Shield: High temperature glass, included
Rotation: 330° horizontal, 90° vertical
Dimming: Dimmable with electronic low voltage rated dimming controls only
Dimensions: 5-11/16" (144mm)
Labels: cULus listed

Installation, aiming and dimming
Installation is the easy part: the head twists into a live track rail and locks, so a single circuit can carry several heads up to the capacity of your track and driver. The adjustable yoke controls the lamp housing and provides custom aiming with 330° horizontal rotation and 90° vertical rotation — enough to wash a wall, graze a stone fireplace or drop a pool of light on a reception desk. On the control side, remember the rule that saves service calls: the fixture is dimmable when used with electronic low voltage (ELV) rated dimming controls only. Pair it with the wrong dimmer and you'll get flicker or buzz; pair it correctly and you get smooth, quiet dimming. Accessories should be ordered separately.

Compatibility, applications and documentation
LITELINE track fixtures are compatible with Juno®, Halo® and most brands configured to Halo® track system design, which makes SORA a practical replacement head when you're refreshing an older track run in a condo, a rental unit or a store. Typical projects: kitchen and island lighting, a hallway gallery of family photos, a home office, a café counter, a hair salon station, a jewellery or clothing display. For multi-finish jobs, the same fixture is available as Sora track fixture black for darker ceilings and Sora track fixture brushed nickel for warmer, metallic interiors. The full technical PDF (SO2012-WH-120V Spec Sheet), including the connector compatibility chart and the ordering guide, is available in the Documentation tab — worth printing for the electrician before the rough-in.
