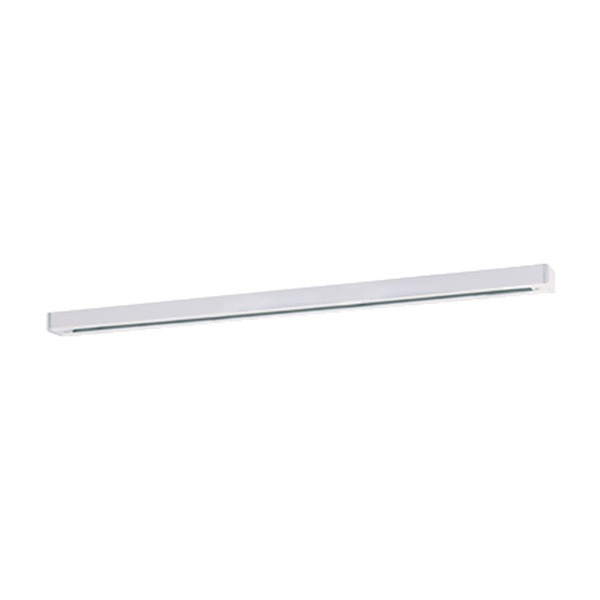

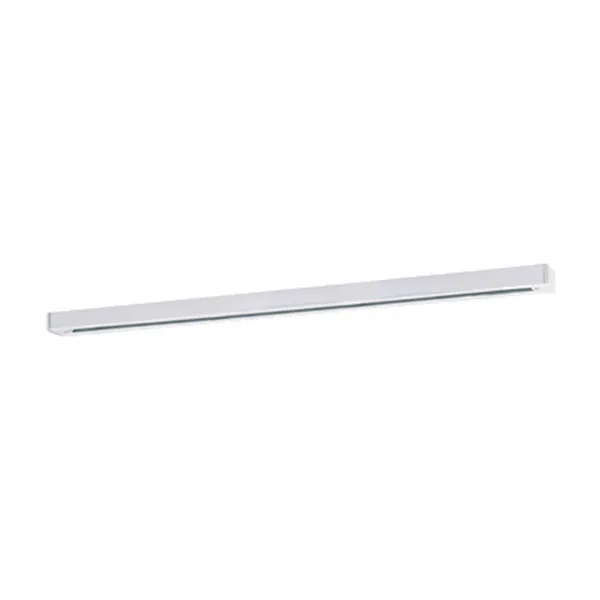

LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6002-WH

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6002-WH
Brand: LITELINE
SKU: TK6002-WH
Price: 24.97 CAD
Availability: InStock

SKU: TK6002-WH

Brand: LITELINE

Give your lighting the freedom to move. The LITELINE LL Series TK6002-WH is a 2-foot section of track lighting rail in a clean white finish, built for light residential applications and small commercial projects. Also called a track rail, lighting track or track bar, it's the backbone of any track light system: you slide your heads anywhere along the rail, aim them where the light is actually needed, and change the whole look of a room without touching the ceiling again. It's the go-to solution when you want to light a kitchen island, a gallery wall, a display counter or a home office with one discreet line instead of a row of fixed fixtures.

This is extruded aluminum track with flat, solid integral conductors rated at 20 amps. The extrusion is 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove runs along the face of the track to show exactly where the grounding conductor sits — a small detail that makes wiring faster and safer. It's a 1-circuit track for 120V applications: single hot and neutral conductors rated 20 Amps per branch circuit, with copper electrical conductors concealed in an insulating thermoplastic low-profile cross-section. System electrical rating is 20A, 120V, 60Hz. The profile measures ¾" (21mm) by 1 3⁄8" (35mm), and this TK6002 model gives you 24" (610mm) of run in a white finish that blends into most ceilings.

Track sections join together with any of the compatible connectors, so a 24" piece can be a complete mini-run over a breakfast nook or one element of a much longer layout in a retail shop, salon, café or basement renovation. Same rail, other finishes: LL Series track TK6002-BK in black, LL Series track TK6002-BN in brushed nickel and LL Series track TK6002-SL in silver. Want the rail and heads together in one box? Look at the Track kit TK6002-WH-KIT2. Add your connectors and feeds, and light your space your way.

Built like real track, not a shortcut
The TK6002-WH belongs to the LITELINE LL Series, designed for light residential applications. The body is extruded aluminum with flat, solid integral conductors rated for 20 amps, so power flows along the entire track rail and your heads draw current wherever you place them. The extrusion uses 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring. A polarity groove is located on the face of the track to indicate the location of the grounding conductor — an easy visual reference when you're on a ladder lining up sections. The white finish keeps the run visually quiet against a white ceiling, which is exactly what most homeowners want from a track lighting system.

Electrical and circuit details
This is a single circuit track for 120V applications. Single hot and neutral conductors are rated for 20 Amps per branch circuit, and the copper electrical conductors are concealed in an insulating thermoplastic low profile track cross-section. System electrical rating is 20A, 120V, 60Hz. Keep in mind what track really is: a single circuit electrical distribution system designed to supply power to lighting units in flexible ways. That means one switch leg can feed several heads, and you decide how many and where — a big advantage over fixed ceiling fixtures in rooms where the furniture layout keeps changing.

Technical specifications
SKU: TK6002-WH
Brand: LITELINE
Series: LL Series, TK60 track sections
Length: 24" (610mm)
Profile: ¾" (21mm) x 1 3⁄8" (35mm)
Construction: extruded aluminum, 1⁄32" die cast aluminum with 3⁄64" PVC insulators
Wiring: 12 gauge flat conductor, copper conductors
Circuit: 1-circuit track, 120V
System electrical rating: 20A, 120V, 60Hz
Finish: White (WH)

Connectors, feeds and suspension
The Liteline track system is compatible with all Liteline track accessories and connectors, and accessories are sold separately. Sections join with the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector for three sections at 90°, the XC6104 X-connector for four sections at 90°, or the FC6105 flexible connector when your walls aren't square. Power can come in through the LE6110 live-end, the LE6111 live-end with canopy, the WE6110 wired-end from a receptacle, the CF6108 center feed with canopy cover, or the CA6106 live-end conduit feed with 7⁄8" knockout for top or end feed. Finish the run with the TK6000-END end cap. For open ceilings, the TDR62 hollow stem rod kit includes ceiling canopy, mounting brackets and hardware, while the RODR62 suspends track from the ceiling and the RODF62 hangs track fixtures.

Where it works and what's documented
A 24" section is ideal above a kitchen island, a hallway of framed photos, a reading corner, a bar counter or a small boutique display — and several sections plus connectors build an L, T or X layout across a basement renovation or a café. Heads are chosen separately, which is why so many Canadian shoppers search for track heads and GU-type lamp holders to finish the job; the rail is the flexible base that lets you swap them later. Matching finishes are available: LL Series track TK6002-BK, LL Series track TK6002-SL, or the ready-to-install Track kit TK6002-WH-KIT2. The full TK6002-WH spec sheet, with technical drawings and the complete accessory list, is in the Documentation tab.
