LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6004-WH

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6004-WH
Brand: LITELINE
SKU: TK6004-WH
Price: 36.97 CAD
Availability: InStock

SKU: TK6004-WH

Brand: LITELINE

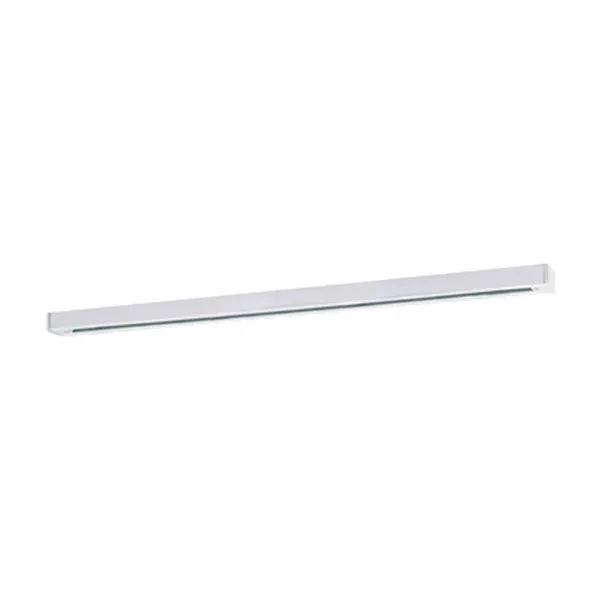

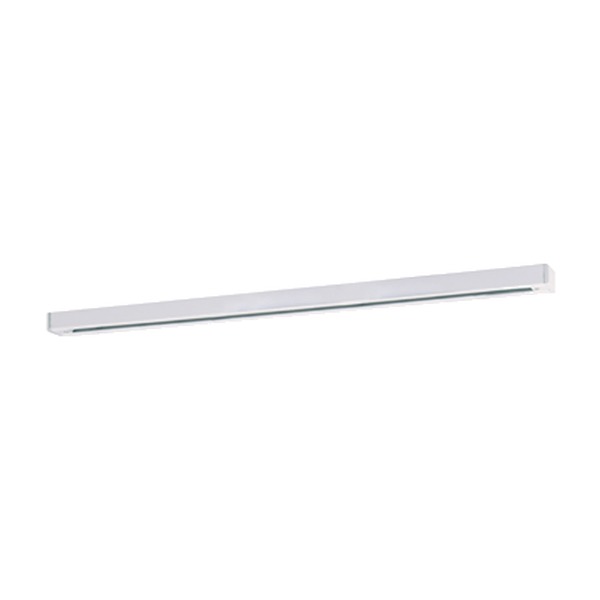

Give any room a lighting system that moves with you: the LITELINE LL Series track rail in white, model TK6004-WH, is the 4-foot backbone of a flexible track lighting setup. People search for it as a track rail, a 4ft track lighting section, a track bar or simply a rail for track light heads — it is all the same idea: one clean extruded channel screwed to the ceiling, then as many heads as you want, placed exactly where the light is needed. Slide the heads along the rail, twist them into the circuit, aim them at a painting, a kitchen island, a display shelf or a work surface, and change your mind next season without touching a single wire.

This is an extruded aluminum track with flat, solid integral conductors rated 20 amps. The single-circuit design is made for 120V applications, with a system electrical rating of 20A, 120V, 60Hz. Construction is 1⁄32" die cast aluminum with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove runs along the face of the track so you always know where the grounding conductor sits. The copper electrical conductors stay concealed inside an insulating thermoplastic low-profile cross-section, giving a slim rail that measures ¾" (21 mm) by 1 3⁄8" (35 mm) and 48" (1219 mm) long. The white finish disappears against a white ceiling, so the eye sees the light, not the hardware.

It belongs anywhere you need aimable light on a budget of ceiling space: condo living rooms, kitchens and hallways, basement renos, home offices and reading corners, plus boutiques, salons, cafés and small galleries that rearrange their displays. Canadian contractors like that sections join end to end with the compatible connectors, so a hallway can be lit with one continuous run. Prefer another finish? The same rail is offered as LL Series track TK6004-BK, LL Series track TK6004-BN and LL Series track TK6004-SL. Want the rail with everything ready to go? Look at the Track kit TK6004-WH-KIT2. Add your rail to the cart and start aiming light where it counts.

Built to stay straight and stay quiet
The LL Series track section is an extruded aluminum body, 1⁄32" die cast aluminum construction, with 3⁄64" PVC insulators holding the 12 gauge flat conductor wiring. That matters on a ceiling: the extrusion keeps its line over a 48" (1219 mm) run instead of waving, and the insulators lock the conductors so the heads keep solid contact every time you slide one. A polarity groove is located on the face of the track to indicate the location of the grounding conductor, which removes the guesswork when you feed power or flip a section around. The white track rail finish is the one most people choose for painted drywall ceilings, since the low-profile shape reads as a thin line rather than a fixture.

Electrical, the short version
This is a single-circuit track for 120V applications. Single hot and neutral conductors are rated for 20 amps per branch circuit, and the system electrical rating is 20A, 120V, 60Hz. Copper electrical conductors are concealed in an insulating thermoplastic low-profile rack cross-section, so nothing live is exposed along the face. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways — in plain words, one feed point powers every head you hang on the rail, and adding a head later is a two-second job instead of a new circuit.

Technical specifications
SKU: TK6004-WH
Brand: LITELINE
Series: LL Series, TK60 track sections
Type: 1-circuit track section
Length: 48" (1219 mm)
Profile: ¾" (21 mm) x 1 3⁄8" (35 mm)
System electrical rating: 20A, 120V, 60Hz
Construction: extruded aluminum, 1⁄32" die cast aluminum with 3⁄64" PVC insulators
Wiring: 12 gauge flat conductor, copper conductors
Finish: White (WH)

Feeds, joints and suspension
The Liteline track system is compatible with all Liteline track accessories and connectors, and the family is broad enough to cover almost any ceiling. Power it with the LE6110 live-end, the LE6111 live-end with canopy from a junction box, the WE6110 wired-end from a receptacle, the CA6106 live-end conduit feed with 7⁄8" knockout for top or end feed, or the CF6108 center feed that brings power anywhere along the run and includes a canopy cover. Join sections with the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector for three sections at 90°, the XC6104 X-connector for four sections at 90°, or the FC6105 flexible connector for varying angles. Close the run with the TK6000-END end cap, and drop the rail off a high or sloped ceiling with the TDR62 hollow stem rod kit, which includes ceiling canopy, mounting brackets and hardware, plus the RODR62 rod to suspend track from the ceiling and the RODF62 rod for track fixtures. Accessories are sold separately.

Where it earns its keep, and what to read
In a home, one 4-ft section over a kitchen counter replaces a flat ceiling fixture with light you can actually aim at the cutting board; in a living room it washes a gallery wall; in a basement office it keeps glare off the screen. In retail, run several sections down a display aisle and re-aim the heads whenever the merchandise moves — the same reason salons, cafés and small galleries keep coming back to track. Sections join end to end for long continuous runs, and the matching finishes make mixed layouts look intentional: Black TK6004-BK, Brushed nickel TK6004-BN and Silver TK6004-SL, or the ready-to-install Track kit TK6004-WH-KIT2. The full technical PDF (TK6004-WH spec sheet) sits in the Documentation tab with the dimensional drawings, the ordering guide and the complete accessory list — worth a look before you order your connectors.
