UNIVERSAL LINE VOLTAGE TRACK FIXTURE FOR PAR LAMPS - UNI1190-WH

Name: UNIVERSAL LINE VOLTAGE TRACK FIXTURE FOR PAR LAMPS - UNI1190-WH
Brand: LITELINE
SKU: UNI1190-WH
Price: 29.97 CAD
Availability: InStock

SKU: UNI1190-WH

Brand: LITELINE

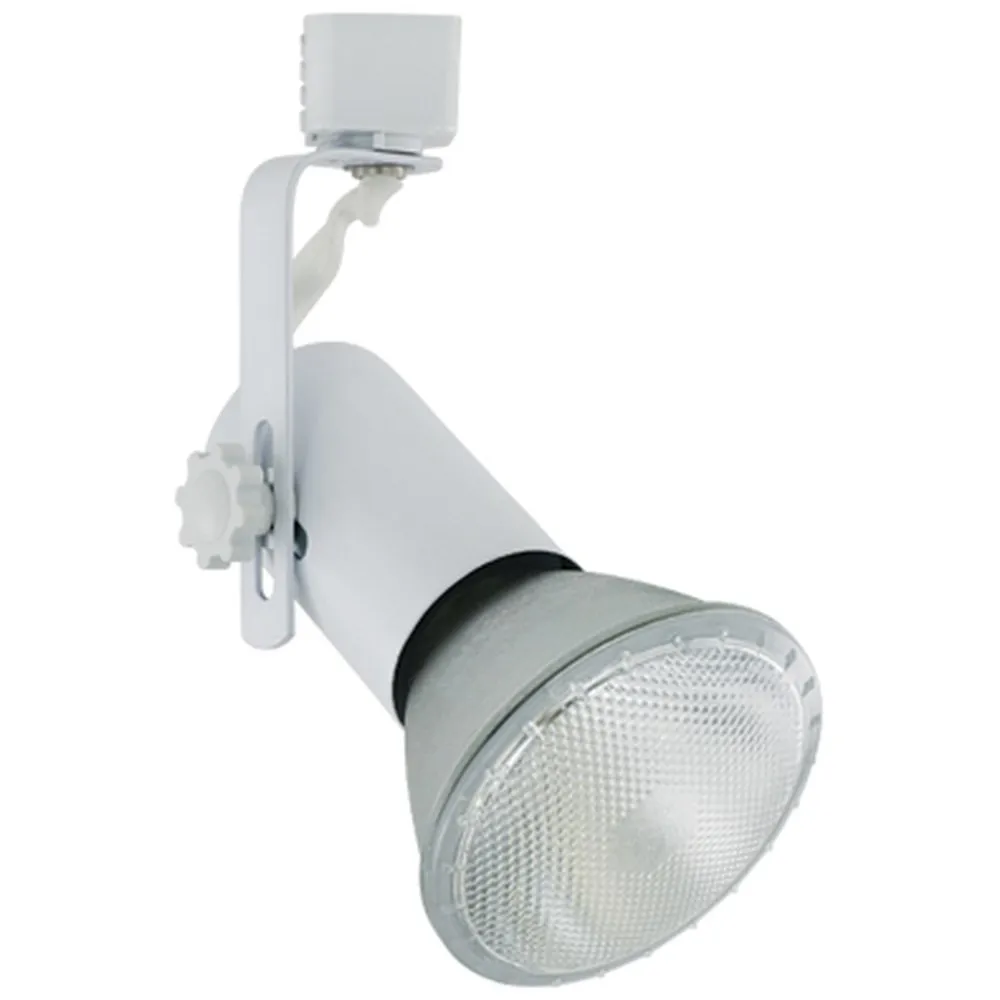

Point the light exactly where you want it, and change your mind next season. The UNIVERSAL Line Voltage Track Fixture for PAR Lamps (SKU UNI1190-WH) by LITELINE is a classic track light head — the kind of track lighting heads people look for when they want to spotlight art, merchandise, a kitchen island or a feature wall. Shoppers call it a track spot, a track cylinder, a PAR track head or simply a track light; whatever the name, this is a front-loading aluminum cylinder that accepts a standard 120V PAR lamp and locks onto your rail exactly where the light is needed. In a crisp white finish, it disappears against a white ceiling and lets the light — not the hardware — do the talking, in homes, boutiques, galleries, offices and small restaurants alike.

The body is constructed of die cast aluminum for superior strength and rigidity, with softened edges that give it a low-profile, uncluttered look. Inside, a porcelain socket takes 120V PAR lamps up to 150 watts max on an E26 base, and a high temperature glass shield comes mounted to the front of the fixture. Aiming is genuinely flexible: 180° of vertical rotation and 358° of horizontal rotation, with a secure lock that holds the angle you set. It runs on 120V / 60Hz input, 120V output, 150W maximum load, and it is dimmable when used with electronic line voltage rated dimming controls only. The fixture measures 5 15⁄16" (251 mm), 3 7⁄16" (87 mm) and 1 15⁄16" (49 mm), and it is ETL listed.

This head belongs in retail displays, condo kitchens, basement renovations, dental and esthetic clinics, cafés and home offices — anywhere a Canadian homeowner or contractor wants adjustable accent light without cutting into the ceiling. Compatibility is the best part: LITELINE track fixtures work with A-Line, Halo®, Lightolier® and most brands configured to the Halo® track system design, and the ordering guide lets you pick the connector type and an optional 12", 18", 24", 36" or 48" stem rod. Prefer a darker look on the same rail? See the Universal line voltage track fixture UNI1190-BK in black or the Universal line voltage track fixture UNI1190-BN in brushed nickel. Add as many heads as your run needs and start aiming.

Built to be handled, aimed and re-aimed
Track heads get touched — by staff changing a display, by a homeowner rearranging furniture, by a contractor commissioning a job. That is why the UNIVERSAL is constructed of die cast aluminum, a material that gives the cylinder superior strength and rigidity instead of the flex you feel in thin stamped housings. The softened edges are not just styling: they keep the silhouette low-profile so a row of heads reads as a clean line on the ceiling rather than a row of equipment. The white trim finish (WH) blends into standard white ceilings and white track rails, which is exactly what you want when the architecture, artwork or merchandise should be the subject.

Light source, shielding and aiming
The fixture is a line voltage track fixture for PAR lamps, with a porcelain socket chosen for heat tolerance and long-term reliability. It accepts 120V PAR lamps with an E26 base, 150 watts max, so you control beam spread and colour simply by choosing the lamp — a narrow spot for a painting, a wider flood for a counter. A high temperature glass shield is included and comes mounted to the front of the fixture. Because the UNIVERSAL is front loading, relamping is done from the front, on the ladder, without dismantling the head. Aiming range is generous: 180° vertical rotation and 358° horizontal rotation, and the locking action assures a secure hold on the angle position so your carefully aimed beams stay aimed.

Electrical, dimming and installation
Electrically this is a straightforward line voltage device: 120V / 60Hz input, 120V output, 150W maximum load. It twists into an energized track rail — no driver, no transformer, no low-voltage wiring to plan. The track fixture is dimmable when used with electronic line voltage rated dimming controls only, so specify the dimmer accordingly and confirm the total connected load on the circuit before you add heads. The fixture is ETL listed. Overall dimensions are 5 15⁄16" (251 mm), 3 7⁄16" (87 mm) and 1 15⁄16" (49 mm). Accessories should be ordered separately, and the ordering guide also offers stem rods in 12", 18", 24", 36" and 48" for pendant-style drops over islands and display tables.

Technical specifications
SKU: UNI1190-WH
Brand: LITELINE
Type: Line voltage track fixture for PAR lamps, front loading
Body: Die cast aluminum
Socket: Porcelain, E26 base
Lamping: 120V PAR lamps, 150 watts max
Shield: High temperature glass, mounted to front
Input: 120V / 60Hz
Output: 120V
Maximum load: 150W
Dimming: Electronic line voltage rated dimming controls only
Rotation: 180° vertical, 358° horizontal
Dimensions: 5 15⁄16" (251 mm), 3 7⁄16" (87 mm), 1 15⁄16" (49 mm)
Trim finish: WH — White
Labels: ETL listed

Compatibility, applications and documentation
LITELINE track fixtures are compatible with A-Line, Halo®, Lightolier® and most brands configured to the Halo® track system design, and the ordering guide covers those connector styles (blank for Liteline, A for A-Line, H for Halo compatible, L for Lightolier compatible) — decode the connector on your existing rail before ordering so the head seats and locks properly. In practice, this head earns its keep over a gallery wall, above retail shelving, along a kitchen ceiling, in a showroom or a studio, and in commercial fit-outs where the layout changes and new heads simply slide onto the existing run. Need the same head in a different trim? Compare it with the Universal track fixture in black or the Universal track fixture in brushed nickel to match dark ceilings or metal accents. The full UNI1190-WH spec sheet — features, connector compatibility chart, dimensions and ordering guide — is available in the Documentation tab of this page for your submittals and permit package.
