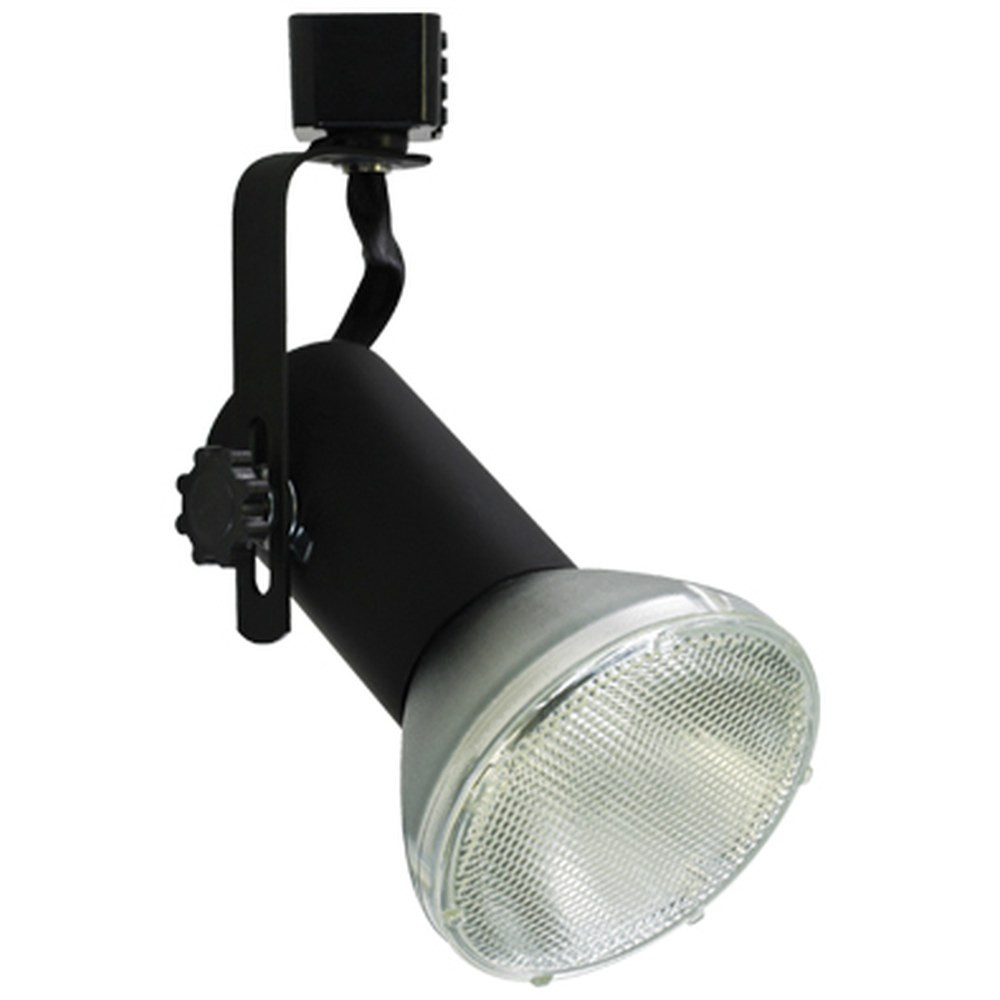

UNIVERSAL LINE VOLTAGE TRACK FIXTURE FOR PAR LAMPS - UNI1190-BK

Name: UNIVERSAL LINE VOLTAGE TRACK FIXTURE FOR PAR LAMPS - UNI1190-BK
Brand: LITELINE
SKU: UNI1190-BK
Price: 29.97 CAD
Availability: InStock

SKU: UNI1190-BK

Brand: LITELINE

Point the light exactly where you want it — and change your mind tomorrow. The UNIVERSAL line voltage track fixture by LITELINE, model UNI1190-BK, is a track lighting head built for standard 120V PAR lamps. People look for it under a lot of names — track light head, track spot, cylinder track fixture, PAR track head — but the job is always the same: a directional, aimable light source that clips onto your track and throws a clean beam onto art, product displays, kitchen islands, retail shelving or a feature wall. Because it's a front loading track fixture, changing the lamp is a two-second job from below, with no need to pull the head off the rail. It's a smart pick for both home renovations and commercial fit-outs, and the black finish disappears against dark ceilings while quietly framing whatever you're lighting.

The body is constructed of die cast aluminum for superior strength and rigidity, with softened edges that give it a low profile, uncluttered look on the ceiling. Inside is a porcelain socket for 120V PAR lamps, 150 watts max, E26 base, and a high temperature glass shield comes mounted to the front of the fixture. Aiming is generous: 180° of vertical rotation and 358° of horizontal rotation, and the head locks securely on the angle you choose so your beams stay where you set them. The fixture is dimmable when used with electronic line voltage rated dimming controls only — 120V / 60Hz input, 120V output, 150W maximum load. It measures 5 15⁄16" (251mm) by 3 7⁄16" (87mm) by 1 15⁄16" (49mm), and it is ETL listed. Trim finish on this SKU: black (BK).

This head earns its keep in galleries, boutiques, cafés, showrooms, dental and medical waiting rooms, offices, and at home over kitchen counters, in basements, hallways and open-concept living rooms — anywhere a Canadian renovation needs flexible, re-aimable light instead of fixed pot lights. LITELINE track fixtures are compatible with A-Line, Halo® and Lightolier® systems and most brands configured to the Halo® track system design; the connector type is chosen when ordering, and stem rods are available as pendant-style options. Matching the room's trim colour? The same head is offered in Universal track fixture in brushed nickel and Universal track fixture in white. Check the spec sheet, count your heads per run, and build your lighting exactly the way you picture it.

Built to take a beating
The UNIVERSAL is a line voltage aluminum cylinder fixture made for PAR light sources. Its body is constructed of die cast aluminum, which delivers superior strength and rigidity — important on a track lighting head that gets aimed, re-aimed and re-lamped over the years. Softened edges keep the silhouette low profile and architectural rather than industrial, so a run of heads reads as one clean line on the ceiling instead of a row of bulky cans. The black trim finish (BK) sits quietly against dark or painted ceilings, which is exactly what you want when the light should be the star, not the housing.

Lamping and light quality
Inside is a porcelain socket for 120V PAR lamps with an E26 base, rated to 150 watts maximum. Porcelain is chosen for heat tolerance, and a high temperature glass shield is included, mounted to the front of the lamp fixture. Because you choose the lamp, you choose the beam: a narrow spot to punch light onto a painting or a bottle display, a wider flood to wash a brick wall or cover a kitchen island. Swap the PAR lamp later and the whole feel of the room changes without touching a wire — one of the reasons track light heads remain the go-to for merchandising and gallery work.

Aiming, dimming and electrical details
The fixture provides 180° of vertical rotation and 358° of horizontal rotation, giving a wide range of aiming possibilities, and it assures a secure lock on the angle position so heads don't drift after a door slams or a shelf gets restocked. It is a front loading track fixture, so re-lamping happens from the front. On the electrical side: 120V / 60Hz input, 120V output, 150W maximum load, and the fixture is dimmable when used with electronic line voltage rated dimming controls only — specify the right dimmer at rough-in and note the total connected load of all heads on the circuit. The fixture is ETL listed.

Technical specifications
SKU: UNI1190-BK
Brand: LITELINE
Type: Line voltage track fixture for PAR lamps
Body: Die cast aluminum
Socket: Porcelain, E26 base
Lamp: 120V PAR, 150 watts max
Shield: High temperature glass, front mounted
Input: 120V / 60Hz
Output: 120V
Maximum load: 150W
Rotation: 180° vertical / 358° horizontal
Dimensions: 5 15⁄16" (251mm) x 3 7⁄16" (87mm) x 1 15⁄16" (49mm)
Trim finish: Black (BK)
Label: ETL listed

Compatibility, applications and documentation
LITELINE track fixtures are compatible with A-Line, Halo® and Lightolier® systems and most brands configured to the Halo® track system design; the ordering guide covers connector types (Liteline, A-Line, Halo compatible, Lightolier compatible), trim finishes and optional 12", 18", 24", 36" and 48" stem rods for a pendant-style drop. Accessories should be ordered separately. Picture it over a retail wall of shelving, above a café's pastry case, along a hallway lined with family photos, or in a basement rec room where recessed cans would mean cutting drywall. Need other finishes on the same project? See the Universal track fixture in brushed nickel or the Universal track fixture in white. The full UNI1190 spec sheet is in the Documentation tab — hand it to your electrician before ordering so the connector type matches the track already on the ceiling.

Technical Files
