APOLLO TRACK FIXTURE - AO1012-BK-120V

Name: APOLLO TRACK FIXTURE - AO1012-BK-120V
Brand: LITELINE
SKU: AO1012-BK-120V
Price: 39.97 CAD
Availability: InStock

SKU: AO1012-BK-120V

Brand: LITELINE

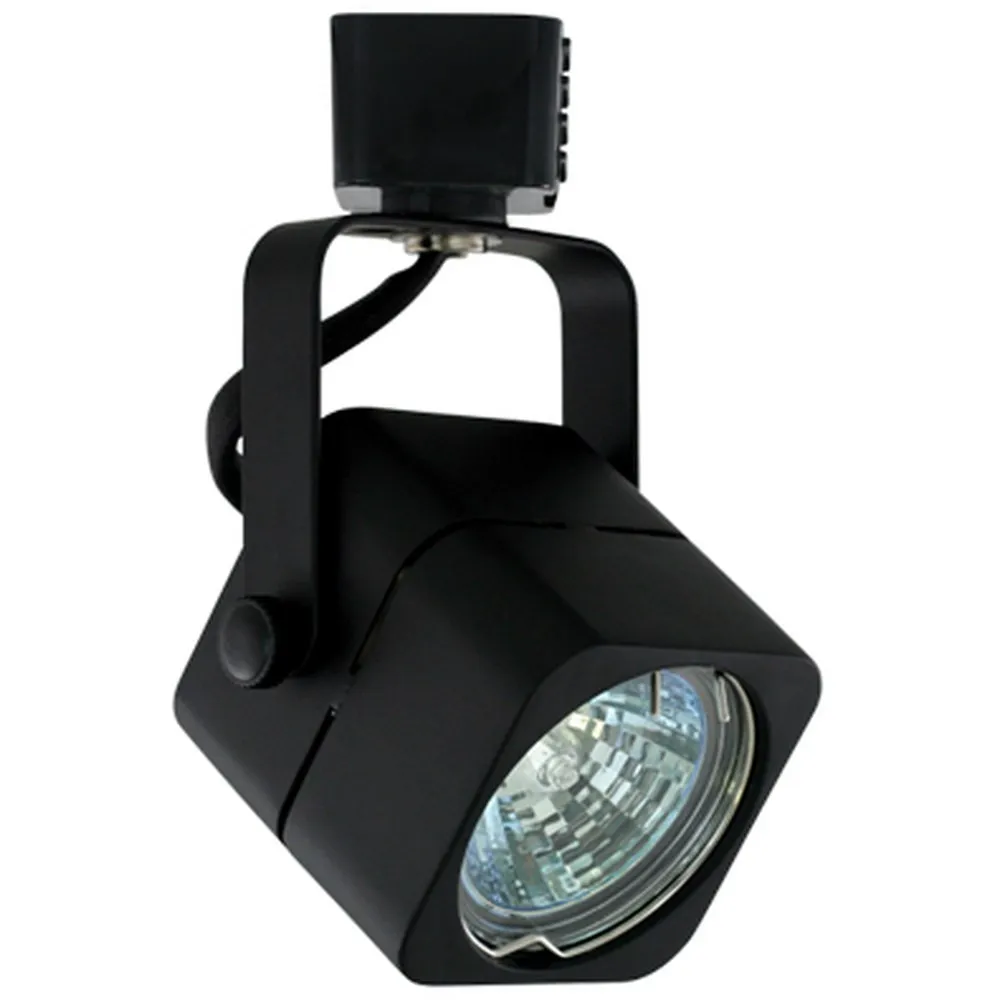

Point the light exactly where you want it — and keep it there. The APOLLO low voltage track fixture (SKU AO1012-BK-120V) from LITELINE is a die cast aluminum track light head built for 12V MR16 lamps, finished in classic black. If you've been searching for track lighting heads that look sharp, aim precisely and lock in place, this is the one. Its low-profile designer shape blends into a ceiling line instead of fighting with it, while the adjustable yoke lets you wash a brick wall, graze a feature column, pin a spotlight on artwork or light up a display of merchandise. Add one head, add six — a track system grows with the room, so you can start with what you need today and keep building as a renovation, a gallery wall or a retail display evolves.

Under the hood, APOLLO carries a solid state electronic transformer that delivers noise-free voltage reduction: 120V AC in, 12V AC out, with a 50W maximum load. The porcelain socket accepts 12V MR16 lamps up to 50 watts max, and a high temperature glass shield comes mounted to the front of the lamp fixture. Aiming is generous and precise — 320° horizontal rotation and 160° vertical rotation — and the angle stays locked where you set it. The die cast aluminum body gives superior strength and rigidity, with softened edges for that low profile look. The fixture measures 4-5/8" (117mm) with a 3" (76mm) and 5-1/8" (130mm) profile as shown on the spec sheet, and it is dimmable when used with electronic low voltage rated dimming controls only. It is cULus listed, so it's ready for Canadian residential and commercial projects.

APOLLO earns its keep in living rooms and open kitchens, finished basements, home galleries and stairwells, and just as easily in boutiques, salons, cafés, showrooms and small offices where merchandise and menu boards need real punch. It mounts on Liteline track and is compatible with Juno®, Halo® and most brands configured to Halo® track system design — handy when you're adding heads to an existing run rather than starting over. Matching finishes are available if you're mixing ceilings or rooms: see the Apollo track fixture in brushed nickel and the Apollo track fixture in white. Check the spec sheet, pick your finish and get your lighting pointed in the right direction.

Sold separately
To complete the installation, add:
Channel / profile: TK6002-BK, TK6004-BK, TK6006-BK, TK6008-BK, TK6002-WH, TK6004-WH, TK6006-WH, TK6008-WH

Built to last, built to aim
The APOLLO head is constructed of die cast aluminum, which gives it superior strength and rigidity — no flex, no rattle, no sagging after a few re-aims. The softened edges are part of the design language: they keep the silhouette low profile so the fixture reads as a discreet accent rather than a piece of equipment bolted to the ceiling. The black finish disappears against dark ceilings and creates a deliberate graphic line against white ones, which is why black track lighting heads remain a favourite of designers and contractors alike.

Light quality and lamping
APOLLO uses a porcelain socket for 12V MR16 lamps, 50 watts max, so you choose the beam spread, the colour temperature and the output that suit the job — narrow spot for artwork, flood for a general wash. A high temperature glass shield is included and comes mounted to the front of the lamp fixture. Because the lamp is user-selected, one track run can do several jobs at once: tight beams on the art, wider beams on the counter.

Electrical, transformer and dimming
A solid state electronic transformer handles the step-down with noise-free operation — no hum over a quiet dining room. Input is 120V / 60Hz, output is 12V, with a 50W maximum load per fixture. The fixture is dimmable when used with electronic low voltage rated dimming controls only; using the correct ELV-rated control is essential for smooth, flicker-free dimming. The product is cULus listed. Accessories should be ordered separately.

Technical specifications
Model: AO1012-BK-120V
Brand: LITELINE
Type: APOLLO low voltage track fixture
Body: die cast aluminum
Finish: black
Input: 120V / 60Hz
Output: 12V
Maximum load: 50W
Lamping: porcelain socket for 12V MR16 lamps, 50 watts max
Shield: high temperature glass shield, mounted to front of lamp fixture
Adjustability: 320° horizontal rotation, 160° vertical rotation
Dimensions: 4-5/8" (117mm), 3" (76mm), 5-1/8" (130mm)
Dimming: electronic low voltage rated dimming controls only
Labels: cULus listed

Compatibility, applications and documentation
Liteline track fixtures are compatible with Juno®, Halo® and most brands configured to Halo® track system design, and the spec sheet includes a connector compatibility chart showing Juno® style, Liteline® style and Halo® style connectors — decide which connector you need before ordering. In practice, that means you can refresh an older track run in a condo or a shop without tearing out the rail. Think accent lighting over a fireplace or a stone feature wall, gallery lighting in a hallway, product spotlights in a boutique or jewellery case, task light over a workbench, or directional light on shelving in a café. For a coordinated look across a project, pair this black head with the Apollo brushed nickel track fixture or the Apollo white track fixture. The full AO1012-BK-120V spec sheet — features, dimensions, ordering guide and connector chart — is available in the Documentation tab; download it for your submittal package or your electrician.
