LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6008-BK

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6008-BK
Brand: LITELINE
SKU: TK6008-BK
Price: 72.97 CAD
Availability: InStock

SKU: TK6008-BK

Brand: LITELINE

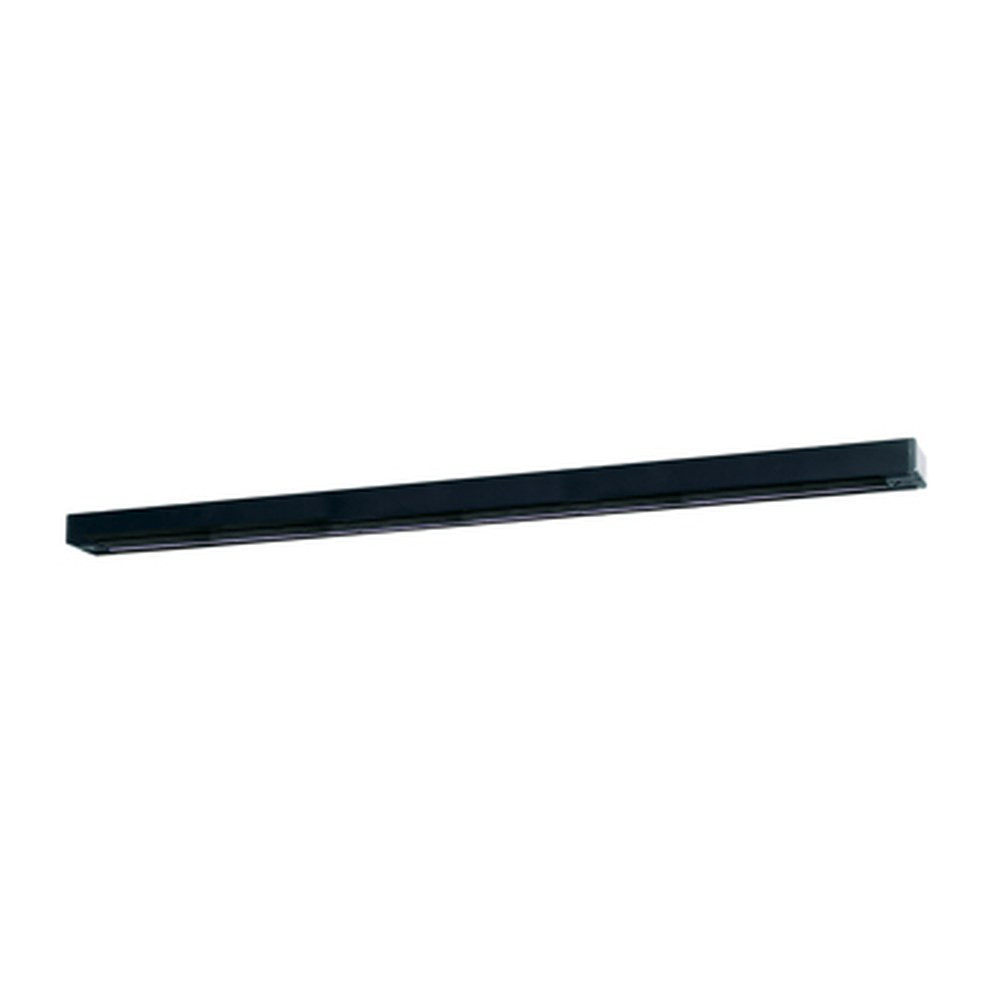

Turn a blank ceiling into a flexible lighting plan you can change any time. The LL Series track rail TK6008-BK from LITELINE is an 8-foot single-circuit track lighting section in a clean black finish — what shoppers often call a track rail, a lighting rail, a track bar or simply the "track" that holds your track heads. It is the backbone of the system: you mount the rail, feed it with power, then slide in as many heads as the circuit allows and aim them exactly where you want light. Perfect for kitchens, open-concept living rooms, hallways, home offices, retail displays, galleries and any renovation where recessed cans are not an option or where the furniture layout keeps changing.

This is an extruded aluminum track built for real use: 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove on the face of the track that shows exactly where the grounding conductor sits. The single hot and neutral conductors are rated for 20 Amps per branch circuit, with a system electrical rating of 20A, 120V, 60Hz. Copper electrical conductors stay concealed in an insulating thermoplastic low-profile cross-section, so all you see is a slim rail measuring 96" (2438mm) long, 1 3⁄8" (35mm) wide and just ¾" (21mm) deep. Sections can be joined end to end with the compatible connectors, and the black finish disappears against dark ceilings or makes a deliberate graphic statement on white drywall.

In a Canadian home or small business, that 8-foot run covers a long kitchen island, a corridor, a boutique wall or a basement workshop with one continuous line of light. Because this is a 1-circuit track for 120V applications, it works with all LITELINE track accessories and connectors: live-ends, center feeds, I, L, T and X connectors, flexible connectors, end caps and suspension rod kits, all sold separately. Prefer a different look? The same 8-foot rail is available as LL Series track TK6008-BN in brushed nickel, TK6008-SL in silver or TK6008-WH in white. Plan your run, pick your finish and start lighting.

Built from extruded aluminum
The TK60 series rail is an extruded aluminum track with flat, solid integral conductors. The body is 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators that hold 12 gauge flat conductor wiring securely in place. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, so orientation is obvious during installation and every section of a long run stays consistent. The copper electrical conductors are concealed inside an insulating thermoplastic low-profile cross-section — a detail that keeps the rail slim and visually quiet on the ceiling while protecting the wiring.

Electrical and installation details
This is a single-circuit track: one hot and one neutral conductor, rated for 20 Amps per branch circuit, with a system electrical rating of 20A, 120V, 60Hz. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways, so you can add, move or re-aim heads without touching the ceiling again. Power can be brought in several ways depending on your junction box location: a live-end (LE6110) at the end of the run, a live-end with canopy (LE6111), a center feed with canopy cover (CF6108) that provides power anywhere along the track, a live-end conduit feed (CA6106) with a 7⁄8" knockout for top or end feed, or a wired-end (WE6110) that draws power from a receptacle. Finish the open end with a TK6000-END end cap.

Technical specifications
SKU: TK6008-BK
Brand: LITELINE
Series: LL Series / TK60 track sections
Length: 96" (2438mm)
Width: 1 3⁄8" (35mm)
Height: ¾" (21mm)
Finish: BK — Black
Circuit: 1-circuit track, 120V applications
System electrical rating: 20A, 120V, 60Hz
Conductors: 12 gauge flat conductor wiring, copper, concealed
Construction: 1⁄32" die cast aluminum with 3⁄64" PVC insulators

Shape the run you need
Track sections can be joined together using any of the compatible track connectors, so a single 8-foot rail is only the starting point. Use an I-connector (IC6101) to join two sections at 180° for a longer straight line, an L-connector (LC6102) to turn a corner at 90°, a T-connector (TC6103) to feed three sections, an X-connector (XC6104) for a four-way layout, or a flexible connector (FC6105) when two sections meet at an unusual angle — handy in older Canadian homes where walls are rarely square. For high or sloped ceilings, suspend the rail with the TDR62 hollow stem rod kit, which includes ceiling canopy, mounting brackets and hardware, or use RODR62 to suspend track from the ceiling and RODF62 for track fixtures. All LITELINE track accessories and connectors are compatible with this system, and accessories are sold separately.

Where it works and what's included in the docs
Think of a long galley kitchen where one run lights counter, sink and island; a hallway or stairwell landing that needs several aimed beams; a home office or studio where the desk moves twice a year; a retail boutique washing a merchandise wall; a café highlighting art and tables. Because heads clip in anywhere along the rail, you fine-tune the layout after the drywall is done — a real advantage for renovations and rentals. The same 8-foot rail is offered in other finishes if your project calls for them: TK6008-BN brushed nickel track, TK6008-SL silver track and TK6008-WH white track. The full technical PDF (TK6008-BK Spec Sheet) with dimensions, technical drawings, the ordering guide and the accessory list is available in the Documentation tab.
