LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-WH

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-WH
Brand: LITELINE
SKU: TK6006-WH
Price: 54.97 CAD
Availability: InStock

SKU: TK6006-WH

Brand: LITELINE

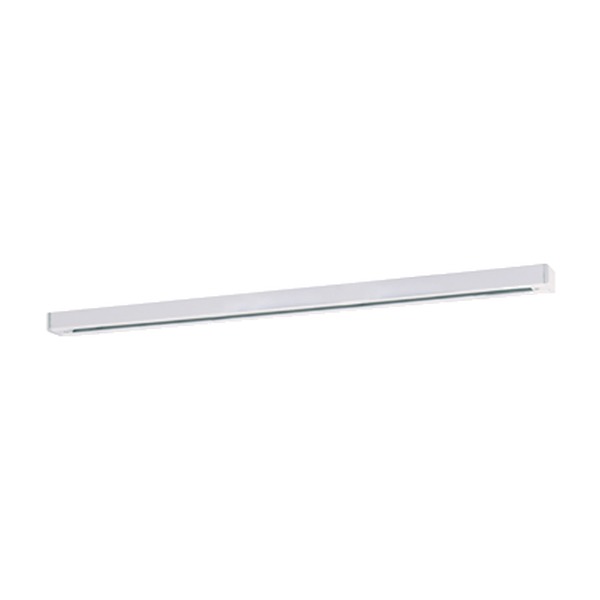

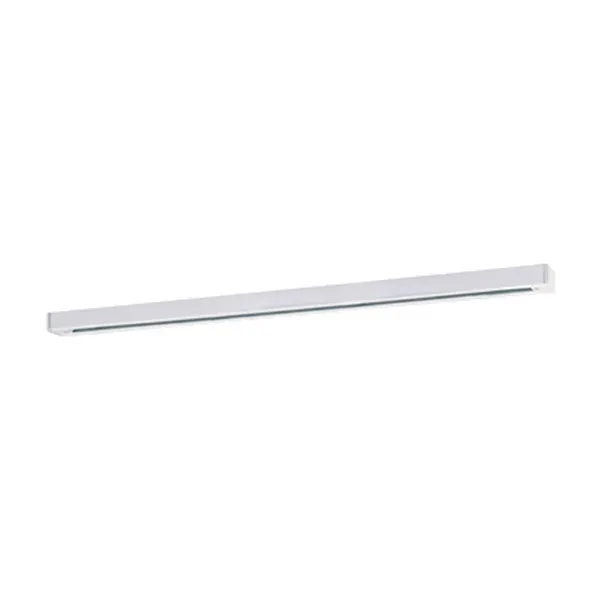

Give your room a lighting system that moves with you: the LITELINE LL Series track rail, model TK6006-WH, is a 6-foot single-circuit track lighting section in a clean white finish. This is the rail — the backbone of the system — on which you slide and aim your track heads exactly where the light is needed. People look for it as a track rail, a track section, a lighting rail or simply "track lighting", and it is the starting point of any project where fixed pot lights can't follow the way you actually use a space: kitchen islands, artwork walls, reading corners, retail displays and shop counters. Add heads, move them, re-aim them — the rail stays, the light changes.

Built from extruded aluminum with a 1⁄32" die cast aluminum construction, the TK6006 carries 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, with copper electrical conductors concealed in a low profile insulating thermoplastic cross-section. A polarity groove on the face of the track shows you where the grounding conductor sits, so orientation is never guesswork. The system electrical rating is 20A, 120V, 60Hz: single hot and neutral conductors rated for 20 amps per branch circuit, designed for 120V single-circuit residential applications. The section measures 72" (1829 mm) long, with a compact profile of ¾" (21 mm) by 1 3⁄8" (35 mm), in a WH white finish that disappears against most ceilings.

This 6-ft rail shines over kitchen counters and dining tables, in basements and finished attics, along hallway art walls, and in boutiques, cafés, salons and small offices where displays change with the season. Sections can be joined together using any of the compatible track connectors, and the Liteline track system is compatible with all Liteline track accessories and connectors — I-connectors, L, T and X connectors, flexible connectors, live-ends, wired-ends, end caps and hollow stem rod kits for suspended runs (accessories sold separately). Prefer another look? The same rail is offered in black, brushed nickel and silver. Plan your run, add your heads, and light your space your way.

Construction you can trust over a long run
The LL Series track is an extruded aluminum track designed to stay straight and true across a full 6-foot span. The extrusion uses 1⁄32" die cast aluminum construction, and inside it 3⁄64" PVC insulators hold the 12 gauge flat conductor wiring firmly in place. The copper electrical conductors are concealed in an insulating thermoplastic low profile rack cross-section, so nothing is exposed once the rail is up. A polarity groove runs along the face of the track to indicate the location of the grounding conductor — a small detail that makes multi-section runs and connector orientation far quicker on site. The WH white finish keeps the rail visually quiet against painted drywall or plaster ceilings.

Electrical and installation details
This is a single-circuit track for 120V applications: track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways. Single hot and neutral conductors are rated for 20 amps per branch circuit, and the system electrical rating is 20A, 120V, 60Hz. Power can reach the rail several ways depending on your ceiling and junction box location: a live-end (LE6110) feeds power from the end of the track without a canopy, the LE6111 live-end with canopy feeds the end of the track from a junction box, the CF6108 center feed provides power anywhere along the track from a junction box and includes a canopy cover, the CA6106 live-end conduit feed (7⁄8" knockout) works for top or end feed, and the WE6110 wired-end draws power from a receptacle. Work should always be carried out according to the Canadian Electrical Code and local requirements.

Technical specifications
Model: TK6006-WH
Brand: LITELINE
Series: LL Series track sections (TK60)
Length: 72" (1829 mm)
Profile: ¾" (21 mm) x 1 3⁄8" (35 mm)
Finish: WH — White
Circuit: 1-circuit track, 120V
System electrical rating: 20A, 120V, 60Hz
Conductors: 12 gauge flat copper conductors, 3⁄64" PVC insulators
Construction: extruded aluminum, 1⁄32" die cast

Connectors, accessories and compatibility
Track sections can be joined together using any of the compatible track connectors, and the Liteline track system is compatible with all Liteline track accessories and connectors. Build an L-shaped or continuous run with the IC6101 I-connector (180°), the LC6102 L-connector (90°), the TC6103 T-connector for three sections at 90° or the XC6104 X-connector for four sections at 90°; use the FC6105 flexible connector to join two sections at varying angles around a bulkhead or sloped wall. Close the run cleanly with the TK6000-END end cap. For suspended installations over an island, a counter or an open-ceiling basement, the TDR62 hollow stem rod kit includes ceiling canopy, mounting brackets and hardware, while RODR62 suspends the track from the ceiling and RODF62 is the hollow stem rod for track fixtures. Accessories are sold separately.

Where it works and what's in the Documentation tab
Homeowners use this 6-ft rail to wash a kitchen backsplash, light a dining table, brighten a home office or highlight a gallery wall in a hallway; contractors like it in condo renovations where adding recessed housings means opening a ceiling. Retailers, cafés, salons and small showrooms use it to aim light at shelving and product displays that change every few weeks. If you want the rail in another colour to match your hardware, see the TK6006-BK black track, the TK6006-BN brushed nickel track or the TK6006-SL silver track; if you'd rather start with a ready-to-install package, look at the white track kit. The complete technical spec sheet (PDF) for TK6006-WH, with the technical drawings, ordering guide and full accessory list, is available in the Documentation tab.
