UNIVERSAL LINE VOLTAGE TRACK FIXTURE FOR PAR LAMPS - UNI1190-BN

Name: UNIVERSAL LINE VOLTAGE TRACK FIXTURE FOR PAR LAMPS - UNI1190-BN
Brand: LITELINE
SKU: UNI1190-BN
Price: 35.97 CAD
Availability: InStock

SKU: UNI1190-BN

Brand: LITELINE

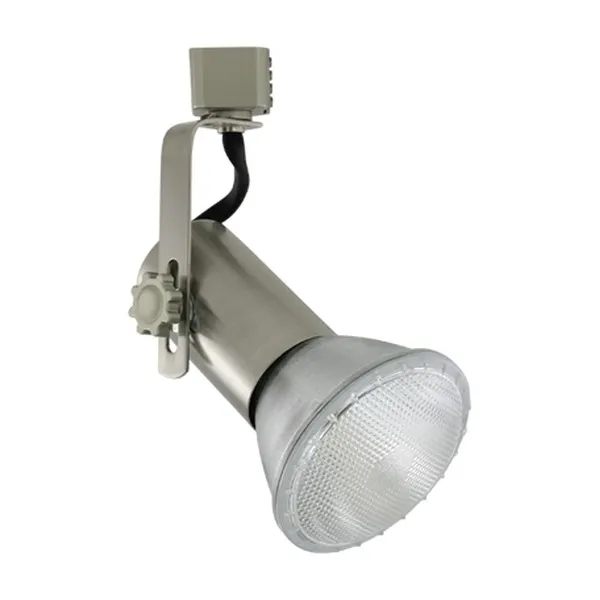

Point the light exactly where you want it — and change your mind tomorrow. The LITELINE UNIVERSAL line voltage track fixture, model UNI1190-BN, is a brushed nickel cylinder track light head built for PAR lamps. If you've been shopping for track lighting heads, track light fixtures or aimable spots to finish an existing rail, this is the classic directional cylinder that does the job: a front-loading head that slides onto your track, locks on angle and throws a clean, controlled beam wherever you need it. It's a favourite for highlighting artwork, kitchen islands, retail displays, showroom shelving and feature walls, and it works just as well in a living room as it does in a boutique or a small office.

The body is constructed of die cast aluminum for superior strength and rigidity, with softened edges that give it a low profile, understated look on the rail. Inside is a porcelain socket for 120V PAR lamps, E26 base, 150 watts maximum, and a high temperature glass shield comes included, mounted to the front of the fixture. Aiming is genuinely generous: 180° of vertical rotation and 358° of horizontal rotation, so you can chase a beam across a gallery wall or drop it straight down over a counter. The head is dimmable when used with electronic line voltage rated dimming controls only — 120V / 60Hz input, 120V output, 150W maximum load — and it is ETL listed. Measured dimensions: 5 15⁄16" (251 mm), 3 7⁄16" (87 mm) and 1 15⁄16" (49 mm).

This head shines in condos and renovated basements, art studios, cafés, hair salons, clothing shops and any Canadian project where the layout keeps evolving and fixed pot lights just won't cut it. On compatibility: Liteline track fixtures work with A-Line, Halo® and Lightolier® and most brands configured to the Halo® track system design, and the ordering guide covers Liteline, A-Line, Halo compatible and Lightolier compatible connectors plus optional stem rods. Want a different finish on the same head? See the Universal track fixture in black or the Universal track fixture in white. Add the UNI1190-BN to your rail and take control of your light.

Built to last on the rail
The UNIVERSAL is a line voltage aluminum cylinder fixture designed around a PAR light source. Its body is constructed of die cast aluminum, a material chosen for superior strength and rigidity, which matters on a track light head that gets handled, re-aimed and moved from one section of rail to another over the years. The softened edges add up to a low profile aesthetic design, so the head reads as a discreet cylinder rather than a bulky projector — an easy match with the brushed nickel hardware already in most kitchens and retail interiors.

Light quality and aiming
Light output is entirely up to the PAR lamp you choose, which is exactly the point: pick a narrow spot for a painting, a wider flood for a merchandising table, and swap it later without touching the fixture. The head accepts 120V PAR lamps on a porcelain socket, E26 base, 150 watts maximum, and a high temperature glass shield is included and mounted to the front of the lamp fixture. Aiming is where this cylinder earns its name: 180° vertical rotation and 358° horizontal rotation give a wide range of light source aiming possibilities, and the front-loading design assures a secure lock on the angle position so your carefully set beam stays put.

Technical specifications
Model: UNI1190-BN
Brand: LITELINE
Type: Universal line voltage track fixture for PAR lamps
Body: Die cast aluminum
Finish: BN — Brushed Nickel
Socket: Porcelain, E26 base
Lamping: 120V PAR lamps, 150 watts max
Shield: High temperature glass, front mounted
Input: 120V / 60Hz
Output: 120V
Maximum load: 150W
Rotation: 180° vertical, 358° horizontal
Dimensions: 5 15⁄16" (251 mm), 3 7⁄16" (87 mm), 1 15⁄16" (49 mm)
Certification: ETL listed

Electrical, dimming and compatibility
This is a line voltage fixture: 120V / 60Hz input, 120V output, 150W maximum load, no transformer or driver to worry about. It is dimmable when used with electronic line voltage rated dimming controls only — an important detail to pass along to your electrician, since the wrong control type is the usual cause of buzz or flicker on a track run. On the mechanical side, Liteline track fixtures are compatible with A-Line, Halo® and Lightolier® and most brands configured to the Halo® track system design, and the ordering guide lists connector types for Liteline, A-Line (ATK), Halo compatible and Lightolier compatible, along with 12", 18", 24", 36" and 48" stem rods and the BK, BN and WH trim finishes. Accessories should be ordered separately.

Where to use it and what's documented
Think retail displays and shelving, gallery and office corridors, restaurant and café walls, salon stations, kitchen islands, loft ceilings and finished basements — anywhere a row of aimable track lighting heads beats a fixed grid of recessed cans. Mixing finishes along one rail is a good look too, so the Universal track fixture in black and the Universal track fixture in white share the same body and the same PAR lamp platform. The full UNI1190-BN spec sheet, including the connector compatibility chart and the complete ordering guide, is available in the Documentation tab.

Technical Files
