LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-BK

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-BK
Brand: LITELINE
SKU: TK6006-BK
Price: 54.97 CAD
Availability: InStock

SKU: TK6006-BK

Brand: LITELINE

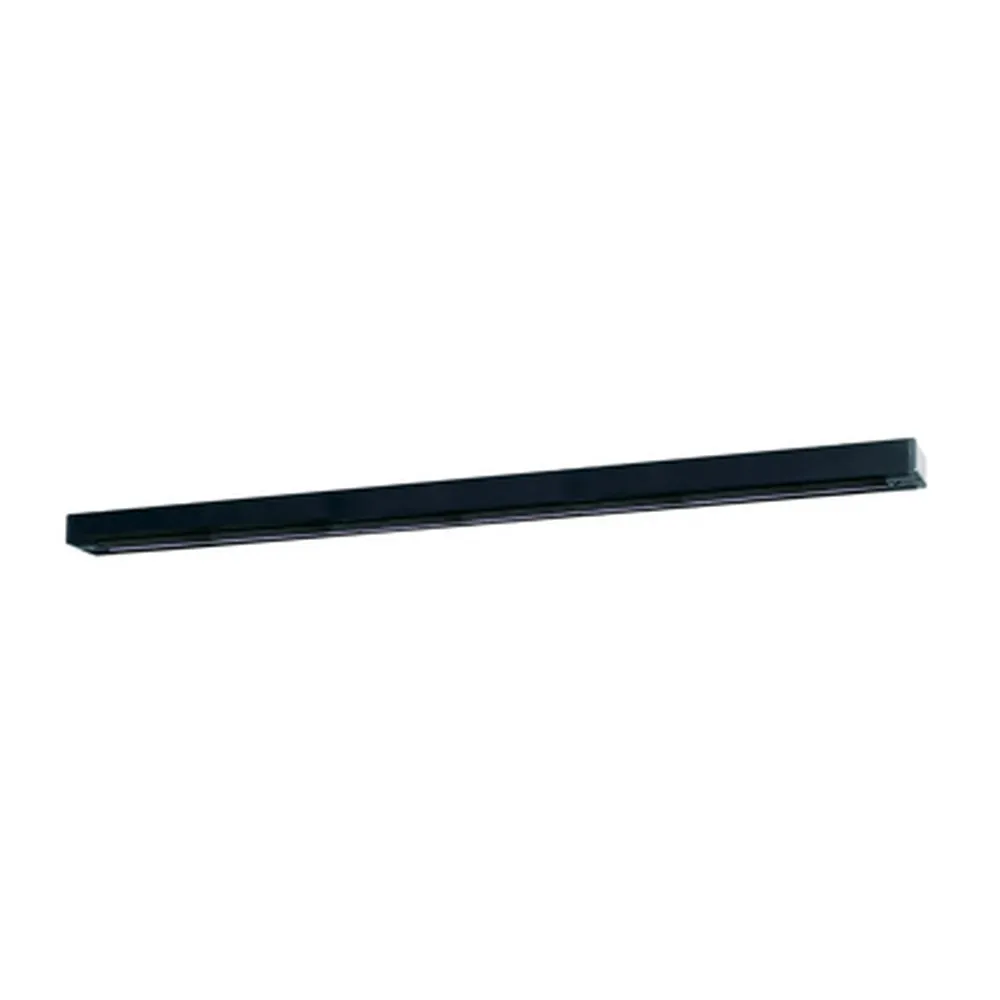

Give your room the freedom to point light exactly where it matters. The TK6006-BK is a 6-foot section of single-circuit track lighting from the LITELINE LL Series, finished in black, and it's the backbone that carries and powers your track light heads. Shoppers look for it under many names — track rail, lighting track, track bar, rail lighting, or simply "6 ft track lighting" — but it all comes down to the same idea: one clean line on the ceiling or wall that lets you add, move and re-aim fixtures whenever your layout or your mood changes. It's designed for light residential applications and small commercial projects, from a kitchen island and a hallway gallery wall to a boutique display or a home studio.

Built from extruded aluminum, this track uses 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, so the copper conductors stay concealed inside a low-profile insulating thermoplastic cross-section. The system is rated 20A, 120V, 60Hz, with single hot and neutral conductors rated for 20 amps per branch circuit — plenty of headroom for a full run of heads. A polarity groove on the face of the track shows you exactly where the grounding conductor sits, which makes installation and orientation foolproof. This TK6006 section measures 72" (1829 mm) long, with a compact profile of ¾" (21 mm) by 1 3⁄8" (35 mm), and the black finish disappears against dark ceilings or stands out as a graphic line on white drywall.

It's a natural fit above kitchen counters, in open-concept living rooms, basements, home offices, retail displays, cafés, salons and small showrooms across Canada — anywhere you'd rather adjust the light than live with it. Sections join end to end using any compatible LITELINE track connector, and the whole LITELINE track system is compatible with all LITELINE track accessories and connectors: live ends, I, L, T and X connectors, flexible connectors, end caps, centre feeds and hollow stem rod kits for suspended runs. Want the same look in another colour? See the LL Series track TK6006-WH, TK6006-BN in brushed nickel or TK6006-SL in silver. Prefer a ready-to-hang package? Start with the black track kit TK6006-BK-KIT and light your space your way.

Solid extruded construction
The LL Series TK60 track is an extruded aluminum channel with flat, solid integral conductors, engineered so the electrical side stays completely hidden. The body uses 1⁄32" die cast aluminum construction, and 3⁄64" PVC insulators hold the 12 gauge flat conductor wiring in place. The copper electrical conductors are concealed in an insulating thermoplastic low profile rack cross-section, which keeps the track rail slim and discreet on the ceiling. A polarity groove runs along the face of the track to indicate the location of the grounding conductor — a small detail that saves time when you're joining several sections and want every head to sit the same way.

Electrical and installation details
This is a single-circuit track for 120V applications: one hot and one neutral conductor, rated for 20 amps per branch circuit. The system electrical rating is 20A, 120V, 60Hz. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways, so the run can be fed at the end with a live-end (LE6110), at the end from a junction box with a live-end with canopy (LE6111), from a receptacle with a wired-end (WE6110), from anywhere along the run with a centre feed (CF6108) that includes a canopy cover, or through a live-end conduit feed with a 7⁄8" knockout (CA6106) for top or end feed. Finish the open end with an end cap (TK6000-END). Power connections must be made by a qualified electrician according to the Canadian Electrical Code and local requirements.

Technical specifications
SKU: TK6006-BK
Brand: LITELINE
Series: LL Series, TK60 track sections
Length: 72" (1829 mm)
Profile: ¾" (21 mm) x 1 3⁄8" (35 mm)
Finish: BK — Black
Construction: extruded aluminum, 1⁄32" die cast aluminum with 3⁄64" PVC insulators
Wiring: 12 gauge flat conductor
Circuit: 1-circuit
System electrical rating: 20A, 120V, 60Hz

Connectors, layouts and compatibility
The LITELINE track system is compatible with all LITELINE track accessories and connectors, so a straight 6-foot run is only the starting point. Join two sections in a straight line with an I-connector (IC6101), turn a corner at 90° with an L-connector (LC6102), branch three sections with a T-connector (TC6103), build a cross with an X-connector (XC6104), or follow an angled wall with a flexible connector (FC6105) that joins two sections at varying angles. For open ceilings, cathedral slopes or drop runs over an island, hollow stem rod kits are available: TDR62 for track suspension, which includes the ceiling canopy, mounting brackets and hardware, RODR62 to suspend track from the ceiling, and RODF62 for track fixtures. Accessories are sold separately, which lets you build exactly the layout your room needs.

Where it works and what's available
Think kitchens where you want three or four heads washing the counter, hallways and stairwells lined with art, basements and lofts with no room for recessed cans, plus small businesses: a boutique window, a café counter, a hair salon station, a gallery or a showroom that changes displays every season. Because heads slide anywhere along the rail, a tenant improvement or a reno can be re-aimed in minutes instead of being re-wired. Matching sections are available in other finishes — TK6006-WH white, TK6006-BN brushed nickel and TK6006-SL silver — and complete packages such as the track kit TK6006-BK-KIT or the track kit TK6006-WH-KIT. The full technical PDF spec sheet, with the drawings, ordering guide and accessory list, is in the Documentation tab.
