LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6004-BK

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6004-BK
Brand: LITELINE
SKU: TK6004-BK
Price: 36.97 CAD
Availability: InStock

SKU: TK6004-BK

Brand: LITELINE

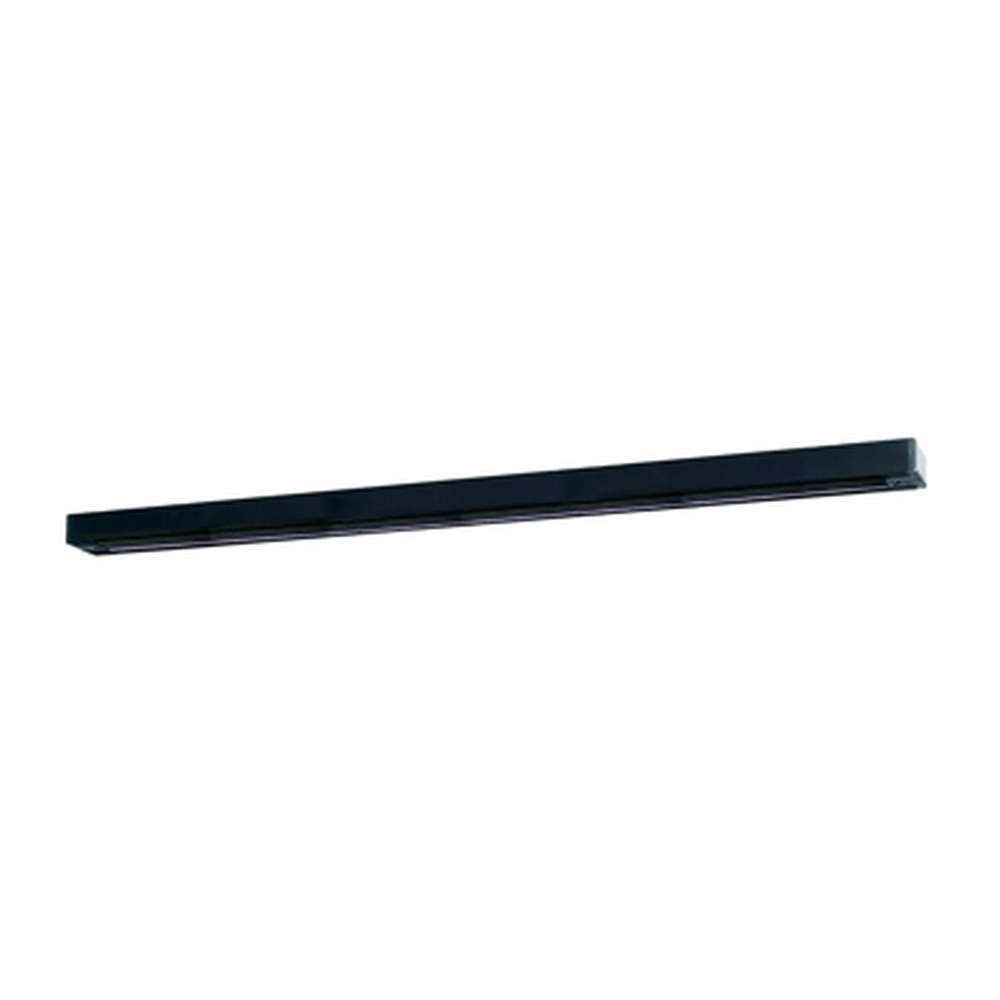

Turn one ceiling outlet into a whole row of adjustable light, exactly where you want it. The LITELINE LL Series track rail TK6004-BK is a 4-ft black track lighting section — what shoppers also call a track rail, a lighting rail, a track bar or simply 4ft track lighting — built for light residential applications and small commercial spaces. Slide your track heads anywhere along its length, aim them at a kitchen island, a gallery wall, a display shelf or a work surface, and re-aim them again next season without touching a single wire.

This is extruded aluminum track with flat, solid integral conductors rated 20 amps, so it feels solid the moment you pick it up. The extrusion uses 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove on the face of the track clearly indicates the location of the grounding conductor — a small detail that makes installs faster and safer. It is a 1-circuit track for 120V applications: single hot and neutral conductors rated for 20 Amps per branch circuit, with copper electrical conductors concealed in an insulating thermoplastic low-profile cross-section. System electrical rating is 20A, 120V, 60Hz. The TK6004 length measures 48" (1219mm), with a compact profile of ¾" (21mm) by 1 3⁄8" (35mm), finished in BK black to disappear against a dark ceiling or stand out graphically against white.

It shines in condo kitchens, open-concept living rooms, basements and home offices, and just as well in a boutique, a café, a salon or a small showroom where merchandise needs to be highlighted. Because Canadian homes rarely have outlets where the light should go, track is often the cleanest fix in a renovation — one feed, many fixtures. This section joins to other sections using any compatible LITELINE track connector, and the whole Liteline track system is compatible with all Liteline track accessories and connectors: live ends, I, L, T and X connectors, flexible connectors, end caps, center feeds and stem rod kits for suspension. Prefer another finish? See the LL Series track TK6004-WH, TK6004-BN brushed nickel or TK6004-SL silver. Ready to light it up? Add your section and your heads to the cart.

Built like real track, not a gadget
The LL Series TK60 family is extruded aluminum track with 20-amp rated flat, solid integral conductors, and the track rail TK6004-BK is the 4-ft black version of it. The extrusion is 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring. That rigidity matters: a straight, true rail means your track light heads slide smoothly, lock firmly and stay aimed where you put them. The low-profile section — ¾" (21mm) tall by 1 3⁄8" (35mm) wide — keeps the hardware discreet so the eye goes to the light, not the rail. The black finish is a favourite in modern kitchens, loft ceilings and retail spaces with exposed structure.

Electrical and installation details
This is a 1-circuit track: single circuit track is available for 120V applications, with single hot and neutral conductors rated for 20 Amps per branch circuit. Copper electrical conductors are concealed in an insulating thermoplastic low-profile rack cross-section, and a polarity groove is located on the face of the track to indicate the location of the grounding conductor — so every head you clip in lands with the correct polarity. System electrical rating is 20A, 120V, 60Hz. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways: bring power in with a live-end, a live-end with canopy, a wired-end from a receptacle, or a center feed anywhere along the run, then cap the open end. Suspension from a high or sloped ceiling is possible with the hollow stem rod kits listed as accessories. Have the connection made by a qualified electrician as required by your local code.

Technical specifications
SKU: TK6004-BK
Brand: LITELINE
Series: LL Series, TK60 track sections
Length: 48" (1219mm)
Profile: ¾" (21mm) x 1 3⁄8" (35mm)
Finish: BK — Black
Circuit: 1-circuit
System electrical rating: 20A, 120V, 60Hz
Conductors: 12 gauge flat conductor wiring, copper, concealed
Construction: 1⁄32" die cast aluminum with 3⁄64" PVC insulators

Compatibility and accessories
The Liteline track system is compatible with all Liteline track accessories and connectors, and sections can be joined together using any of the compatible track connectors. The accessory family includes the I-connector IC6101 for two sections at 180°, the L-connector LC6102 at 90°, the T-connector TC6103 for three sections, the X-connector XC6104 for four sections, and the flexible connector FC6105 when your ceiling asks for an unusual angle. Power options include the live-end LE6110, the live-end with canopy LE6111, the wired-end WE6110, the center feed CF6108 and the live-end conduit feed CA6106. Finish the run with the TK6000-END end cap, and suspend it with the TDR62 stem rod kit, the RODF62 rod for track fixtures or the RODR62 rod to hang the track from the ceiling. Accessories are sold separately.

Where it works and what's in the Documentation tab
Use it over a kitchen island or peninsula, along a hallway of framed art, above a basement bar, in a home office, or in a boutique, café, salon, bakery or small gallery where the display changes often. Other finishes of the same 4-ft section are available — TK6004-WH white, TK6004-BN brushed nickel and TK6004-SL silver — and if you want rail, feed and heads together, look at the black track kit TK6004-BK-KIT2. The full TK6004-BK spec sheet, with technical drawings, the ordering guide and the accessory list, is available in the Documentation tab of this page.

Technical Files
