LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6008-WH

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6008-WH
Brand: LITELINE
SKU: TK6008-WH
Price: 72.97 CAD
Availability: InStock

SKU: TK6008-WH

Brand: LITELINE

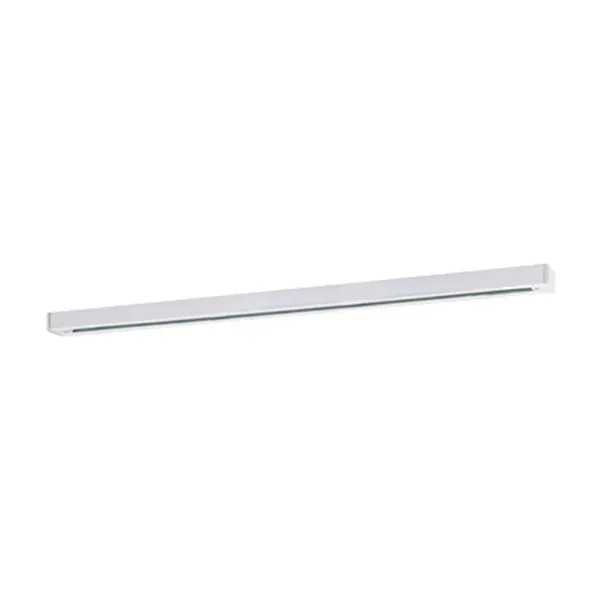

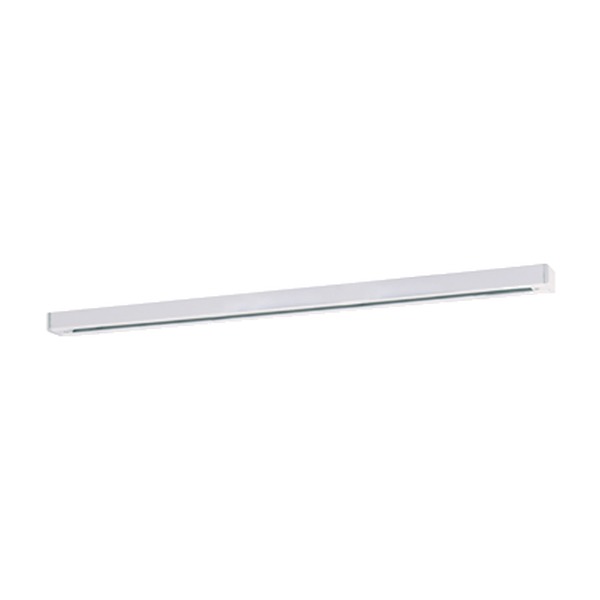

Give your room a lighting layout that can change as often as you rearrange the furniture. The LL Series track rail TK6008-WH from LITELINE is an 8-foot track lighting rail in a clean white finish — the backbone of any track light system, the piece you mount to the ceiling and then load with the track lighting heads of your choice. People search for it as a track rail, track section, lighting rail, track bar or simply "8 ft track lighting", and it all points to the same thing: an extruded aluminum channel with built-in conductors that carries power along its full length so you can slide, aim and add fixtures wherever the light is needed. It is made for light residential applications and small commercial spaces, from kitchens and hallways to boutiques, galleries and office corners.

Built from 1⁄32" die cast aluminum extrusion with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, this single circuit track is rated 20A, 120V, 60Hz, with solid integral conductors rated for 20 Amps per branch circuit. Copper electrical conductors stay concealed inside an insulating thermoplastic low profile cross-section, and a polarity groove on the face of the track clearly indicates where the grounding conductor sits — a small detail that makes wiring faster and safer. The TK6008 measures 96" (2438mm) long with a slim profile of ¾" (21mm) by 1 3⁄8" (35mm), so it stays discreet against the ceiling. The WH suffix is the white finish, which blends into most painted ceilings; the same rail is also offered in black, brushed nickel and silver.

This rail is the perfect answer for a kitchen island, a long hallway, a basement reno, a home studio, a retail display wall or a café counter anywhere in Canada, where one circuit has to light several zones at once. Sections join end to end using any compatible LITELINE track connectors, and the track system works with all LITELINE track accessories: I-connectors, L, T and X connectors, flexible connectors, live-ends, wired-ends, center feeds, end caps and suspension rod kits (accessories sold separately). Prefer a darker or metallic look for the same 8-foot run? Compare the LL Series track TK6008-BK, the LL Series track TK6008-BN and the LL Series track TK6008-SL. Start your run with the TK6008-WH and build the lighting you actually want.

Solid extrusion, clean lines
The TK60 series is an extruded aluminum track rail with flat, solid integral conductors rated at 20 amps. The body is 1⁄32" die cast aluminum construction, and inside it, 3⁄64" PVC insulators hold 12 gauge flat conductor wiring in place. That combination gives you a rail that stays straight over a long run, resists the knocks of a busy renovation site and keeps its finish looking sharp once the ceiling is painted and the heads are installed. The cross-section is deliberately low profile — ¾" (21mm) by 1 3⁄8" (35mm) — so an 8-foot run reads as a thin architectural line rather than a bulky channel.

Electrical design and safety
This is a single circuit track for 120V applications. The single hot and neutral conductors are rated for 20 Amps per branch circuit, and the copper electrical conductors are concealed in an insulating thermoplastic low profile track cross-section, so nothing conductive is exposed once the rail is up. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, which removes the guesswork when you orient the rail and clip in your track light heads. Remember that track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways — one feed, many fixtures, endless aiming options.

Technical specifications
Model: TK6008-WH
Series: TK60 Track Sections
Length: 96" (2438mm)
Profile: ¾" (21mm) x 1 3⁄8" (35mm)
System electrical rating: 20A, 120V, 60Hz
Circuit: 1-circuit track
Conductors: 12 gauge flat copper conductors, 20 Amps per branch circuit
Construction: 1⁄32" die cast aluminum extrusion, 3⁄64" PVC insulators
Finish: WH — White
Other lengths in the series: TK6002 24" (610mm), TK6004 48" (1219mm), TK6006 72" (1829mm), TK6012 144" (3658mm)

Installation and compatible accessories
Track sections can be joined together using any of the compatible track connectors, so you are never limited to a single straight run. Feed the rail with a live-end conduit feed CA6106 (7⁄8" knockout, top or end feed), a live-end LE6110 with no canopy, a live-end with canopy LE6111 from a junction box, a wired-end WE6110 from a receptacle, or a center feed CF6108 that brings power anywhere along the track and includes a canopy cover. Shape the layout with the I-connector IC6101 at 180°, the L-connector LC6102 at 90°, the T-connector TC6103 for three sections at 90°, the X-connector XC6104 for four sections at 90°, or the flexible connector FC6105 to join two sections at varying angles. Finish the run with the TK6000-END end cap, and drop the track away from a high or sloped ceiling with the TDR62 hollow stem rod kit (ceiling canopy, mounting brackets and hardware included), the RODR62 rod to suspend track from the ceiling or the RODF62 rod for track fixtures. The Liteline track system is compatible with all Liteline track accessories and connectors; accessories are sold separately.

Where it works and what's documented
Use this white rail over a kitchen island or peninsula, along a hallway with artwork, in a finished basement, a home office or a loft with exposed structure, and in small businesses such as boutiques, salons, galleries, cafés and showrooms where displays move often. In white, it disappears into standard painted drywall ceilings — for other looks, the same 8-foot section exists as the LL Series track TK6008-BK, the LL Series track TK6008-BN and the LL Series track TK6008-SL. The full technical PDF (TK6008-WH Spec Sheet) with technical drawings, the ordering guide and the complete accessory list is available in the Documentation tab.

Technical Files
