LED ALUMINUM PROFILE #86

Name: LED ALUMINUM PROFILE #86
Brand: LEDCO
SKU: LCPROF-86-16FT
Price: 59.97 CAD
Availability: InStock

SKU: LCPROF-86-16FT

Brand: LEDCO

Want the glow without seeing the source? The LED Aluminum Profile #86 is a recessed LED aluminum channel designed to make the light source invisible, so all you see is a clean line of light set into the surface. Also searched as a recessed aluminum profile for LED strip lighting, a built-in LED channel or an aluminum extrusion for LED strips, it turns an ordinary LED strip into integrated architectural lighting. Its compact form factor permits a wide range of uses: ceilings and walls, cabinetry and millwork, shelves, staircases, counters and commercial fixtures.

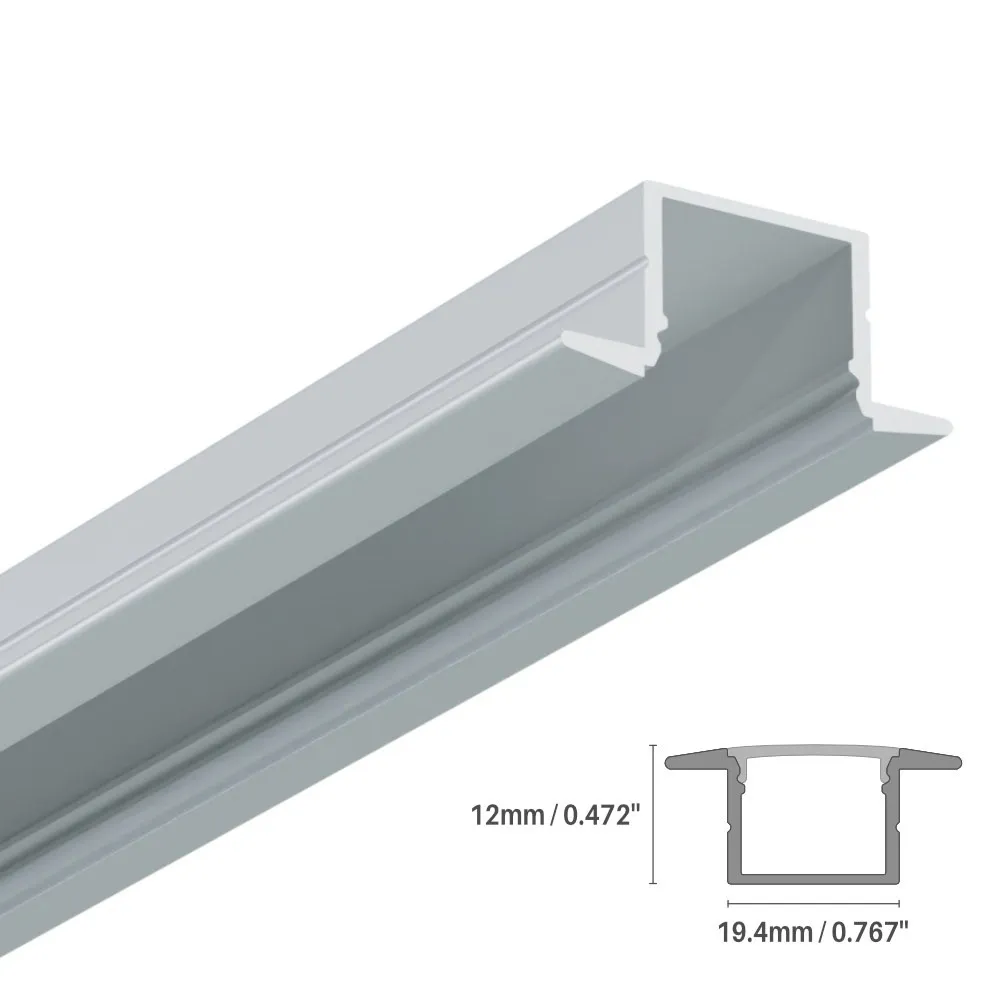

This SKU, LCPROF-86-16FT, is the 16 ft length, the longest standard size of the series, which also exists in 4 and 8 ft, with custom fabrication up to 192 inches. The profile is made of 6063-T5 aluminum, can be installed both indoors and outdoors, and can be painted to match your decor; the series is offered in aluminum, black or white. It accommodates and protects the majority of LED strips of the range, including white and colour RGB-RGBW strips. The technical drawing lists 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in) and 9 mm (0.354 in). It is certified for the Canadian market and backed by a 3-year warranty.

Long runs are where the 16 ft profile shines: a continuous line across a living room ceiling in Calgary, a corridor in a Montréal office, a retail wall in Halifax or a hotel lobby in Banff, with fewer joints along the way. Recess it into the surface, lay in your LED strip, and the light seems to come from the architecture itself. For shorter sections, pair it with the LED aluminum profile #86 in 8 ft; if you prefer a lens, see the #86 profile in 16 ft with opaque lens. Build it in once and enjoy hidden LED lighting that looks like part of the design.

Sold separately
To complete the installation, add:
End cap: LCENDCAP-STAND-86, LCENDCAP-STAND-86-BK, LCENDCAP-STAND-86-H, LCENDCAP-STAND-86-H-BK, LCENDCAP-STAND-86-H-WH, LCENDCAP-STAND-86-WH
Lens: LCLENS-FROS85-8FT, LCLENS-FROS85-8FT-P88, LCLENS-OPAQ85-16FT-BK, LCLENS-OPAQ85-8FT-BK

Light built into the surface
The 86 series is a recessed LED profile: it is designed for recessed installation and designed to make the light source invisible. Instead of a strip or a fixture sitting on the surface, you get a slim line of light integrated into your decor, the kind of detail that makes a renovation look custom. The compact form factor permits a wide range of uses, and the 6063-T5 aluminum extrusion can be installed both indoors and outdoors, then painted to match your decor if needed. Reference LCPROF-86-16FT is the 16 ft length.

Strips and light
The profile accommodates and protects the majority of LED strips of the range. For a kitchen, a hallway or an office, a white LED strip gives clean, functional light; for a lounge, a bar or a boutique, an RGB or RGBW strip adds colour scenes. Because the source is recessed and out of sight, the eye catches the glow rather than the strip, which is exactly what you want in a living space or a customer area.

Installing a recessed profile
Recessed installation means the profile sits in a groove or cut-out in the material: drywall, wood panelling, cabinetry, shelving or a baseboard. Always check the technical drawing for exact dimensions before cutting, and plan the path of the wires and the location of the LED driver before walls or cabinets are closed. At 16 ft, this length suits long continuous runs; the series also exists in 4 and 8 ft, and custom fabrication is available up to 192 inches for exact lengths. Have any line-voltage connection made by a licensed electrician.

Technical specifications
SKU: LCPROF-86-16FT
Series: 86
Type: recessed aluminum profile
Length: 16 ft (series also in 4 and 8 ft; custom up to 192 in)
Material: 6063-T5 aluminum
Series colours: aluminum, black or white
Dimensions (technical drawing): 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in), 9 mm (0.354 in)
Use: indoor and outdoor
Compatible strips: white and RGB-RGBW LED strips of the range
Certification: certified for the Canadian market
Warranty: 3 years

Applications and documentation
A floating line of light in a condo ceiling in Toronto, a recessed shelf in a Québec City bookshop, a glowing line along a staircase wall in Kelowna or a reception wall in a Regina clinic: the #86 adapts to them all. The same profile also comes in black and in white: see the black #86 profile in 16 ft and the white #86 profile in 16 ft. The spec sheet PDF, with the technical drawing and a gallery of installations, is in the Documentation tab, ready for your designer or electrician.
