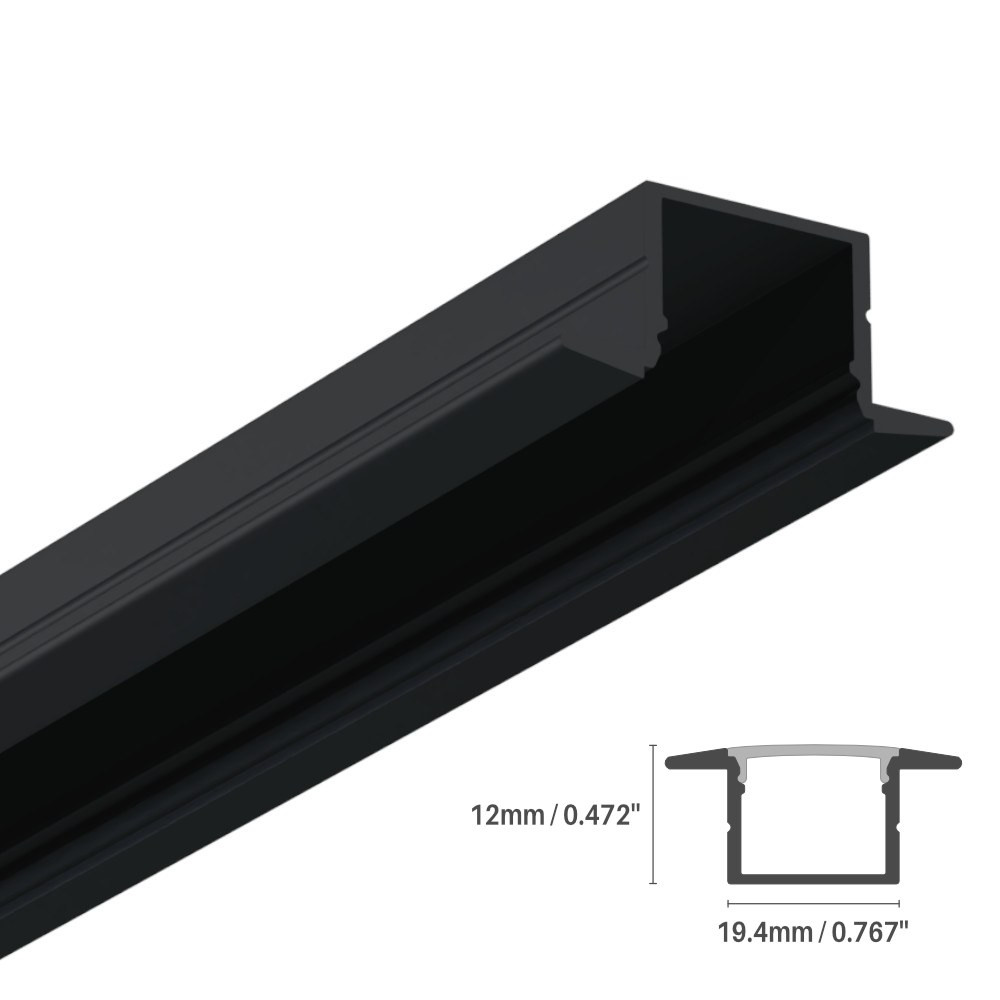

LED ALUMINUM PROFILE #86 - LCPROF-86-16FT-BK-LENS-OPAQ-BK

Name: LED ALUMINUM PROFILE #86 - LCPROF-86-16FT-BK-LENS-OPAQ-BK
Brand: LEDCO
SKU: LCPROF-86-16FT-BK-LENS-OPAQ-BK
Price: 127.97 CAD
Availability: InStock

SKU: LCPROF-86-16FT-BK-LENS-OPAQ-BK

Brand: LEDCO

Black profile, black lens, black surface: when the design calls for total discretion, the LED Aluminum Profile #86 with opaque black lens is the answer. This black recessed LED channel, also searched as a black LED aluminum channel, a recessed aluminum extrusion or an aluminum profile for LED strip lighting, is designed to make the light source invisible and to melt into dark decor. Its compact form factor permits a wide range of uses: home theatres, bars and lounges, black feature walls, dark ceilings, display niches and modern commercial interiors.

This SKU, LCPROF-86-16FT-BK-LENS-OPAQ-BK, pairs the black profile in a 16 ft length with an opaque black lens, for an all-black line from end to end. Designed for recessed installation, the profile is made of 6063-T5 aluminum, can be installed both indoors and outdoors and can be painted to match your decor. It accommodates and protects the majority of LED strips of the range, white or colour RGB-RGBW. On the technical drawing, the profile shows 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in) and 9 mm (0.354 in). The series also exists in 4 and 8 ft, with custom fabrication up to 192 inches, and it is certified for the Canadian market with a 3-year warranty.

Think of a home cinema with a black ceiling in Oakville, a cocktail bar in Montréal, a gaming room in Surrey or a black retail wall in Calgary: this all-black LED profile keeps the architecture clean and lets the light do the talking. Add your LED strip and recess the profile. For shorter sections, use the black LED aluminum profile #86 in 8 ft; for the opaque lens version of the same black profile, see the black #86 profile in 16 ft with opaque lens. Total discretion, pure light.

Sold separately
To complete the installation, add:
End cap: LCENDCAP-STAND-86, LCENDCAP-STAND-86-BK, LCENDCAP-STAND-86-H, LCENDCAP-STAND-86-H-BK, LCENDCAP-STAND-86-H-WH, LCENDCAP-STAND-86-WH

An all-black recessed line
The 86 series is designed for recessed installation and to make the light source invisible. Reference LCPROF-86-16FT-BK-LENS-OPAQ-BK takes the idea one step further: the profile is black and the lens is opaque black, so the whole assembly blends into black or charcoal surfaces. It is the choice for designers who want the architecture to stay pure, with nothing but the line of light to catch the eye.

Material, strips and finish
The extrusion is made of 6063-T5 aluminum, can be installed both indoors and outdoors, and can be painted to match your decor. The profile accommodates and protects the majority of LED strips of the range: pick a white LED strip for accent or functional lighting, or an RGB-RGBW strip for colour effects in a bar, a lounge or a gaming room. Since the lens colour affects how the line looks, test your strip with the lens in place before final installation, and choose a strip rated for the location if the profile goes outdoors.

Recessed installation
Recessing means setting the profile into a groove or a cut-out: in drywall, wood panelling, cabinetry, a bar front or a wall panel. Take the exact dimensions from the technical drawing before routing, and plan the wire path and the LED driver location before closing walls or cabinets. The 16 ft length reduces joints on long runs; the series also offers 4 and 8 ft lengths and custom fabrication up to 192 inches. Have any line-voltage connection made by a licensed electrician.

Technical specifications
SKU: LCPROF-86-16FT-BK-LENS-OPAQ-BK
Series: 86
Type: recessed aluminum profile
Colour: black
Lens: opaque black
Length: 16 ft (series also in 4 and 8 ft; custom up to 192 in)
Material: 6063-T5 aluminum
Dimensions (technical drawing): 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in), 9 mm (0.354 in)
Use: indoor and outdoor
Certification: certified for the Canadian market
Warranty: 3 years

Applications and documentation
Home theatres, cocktail bars, nightlife venues, black kitchens, gaming rooms and dark retail displays: the all-black #86 adds hidden LED lighting without breaking the design. Also in the same black finish: the black LED aluminum profile #86 in 16 ft. The spec sheet PDF, with the technical drawing and a gallery of installations, is in the Documentation tab.

Technical Files
