White profile with opaque lensWhen the light line is visible, details matter. The
aluminum profile #84 in white keeps the housing discreet against white cabinetry, painted ceilings and light walls, while the
opaque lens hides the individual LEDs and spreads their light evenly. The result is a calm, continuous line that feels built into the furniture, ideal above a bathroom mirror niche, under upper cabinets or along open shelving.
Slim and adaptableThe 84 series is designed for situations where space is limited, and its
compact form factor permits a wide range of uses. Made of 6063-T5 aluminum, the profile accommodates and protects the majority of LED strips in its range, including white and coloured
RGB-RGBW strips, so you can go from crisp task lighting to colourful mood lighting with the same channel. It can be installed indoors and outdoors (outdoors, use a strip rated for the location), and it can be painted to match your décor.
Installation and ordering optionsThe series uses standard mounting. Its ordering guide lists
end caps without a hole, with a hole for the cable, or one of each, as well as colours (plain aluminum, black, white or custom) and lens choices (opaque or black). Standard lengths are 8 and 16 feet, and
custom lengths are available up to 192 inches. Plan the cable path and the LED driver location, install and test the strip, then put the lens in place; any line-voltage connection should be made by a licensed electrician.

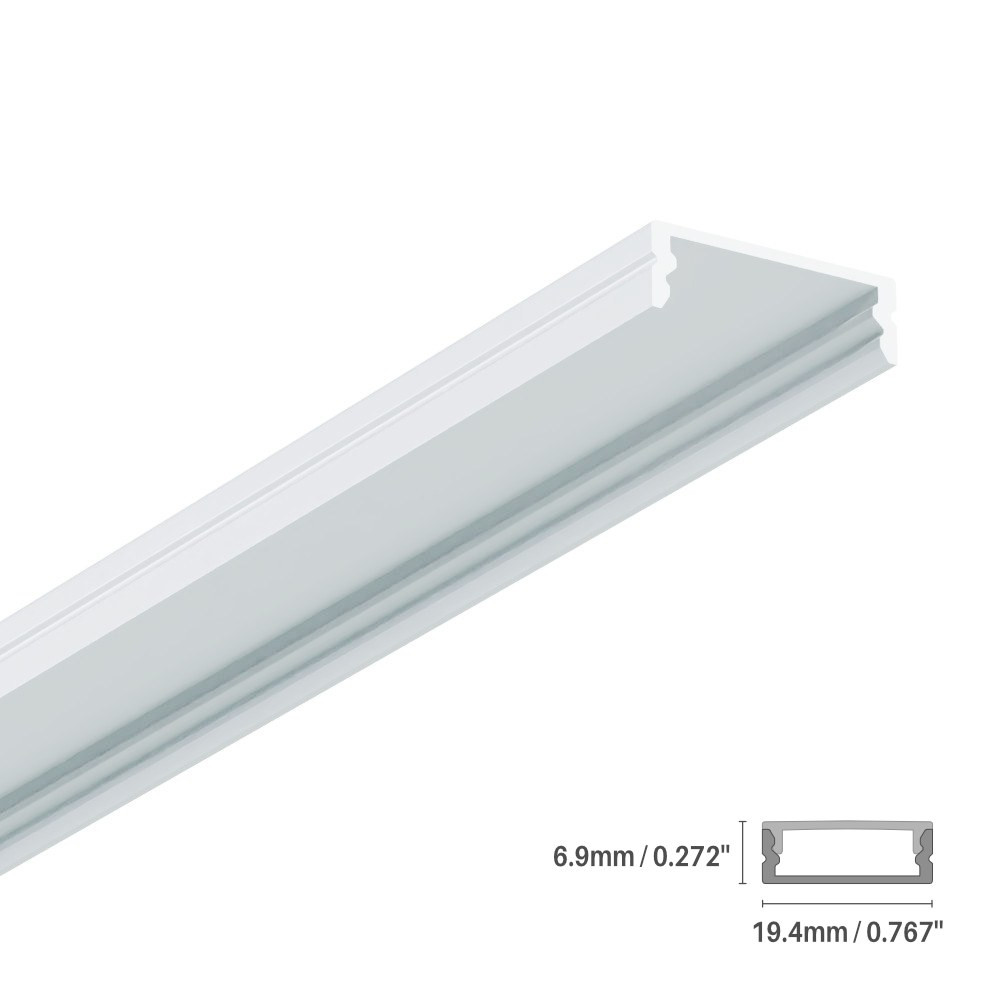

Technical specificationsModel: LCPROF-84-16FT-WH-LENS-OPAQ
Series: Aluminum profile 84 series
Length: 16 ft
Colour: White aluminum
Lens: Opaque
Material: 6063-T5 aluminum
Drawing dimensions: 19.4 mm (0.767 in), 6.9 mm (0.272 in), 16.5 mm (0.649 in)
Compatible strips: White and coloured (RGB-RGBW) LED strips
Use: Indoor and outdoor
Mounting: Standard
Custom fabrication: Up to 192 inches
Certification: Certified for the Canadian market
Applications and documentationThis
slim LED channel shines in white kitchens, bathroom vanities, linen closets, walk-in closets, clinics, art galleries and boutiques with white shelving. At home, it also works beautifully in a mudroom bench niche or above a laundry room counter. The
spec sheet, with the technical drawing and the ordering guide, is available in the Documentation tab. For another profile of the same family, see the
LED aluminum profile #14.
