Black profile, soft lightThe combination of a
black aluminum profile and an
opaque lens is one of the most refined ways to install LED strip lighting. The dark housing blends into black cabinets, dark wood and modern finishes, while the lens turns the individual LED points into a gentle band of light. The result feels like a custom-built fixture, which is exactly what you want on open shelving, in a display case or anywhere the light line sits in plain view.
Built for tight spacesThe 84 series is designed for situations where space is limited, and its
compact form factor allows a wide range of uses. Made of 6063-T5 aluminum, the profile accommodates and protects the majority of LED strips in its range, including white and coloured
RGB-RGBW strips, so you can create anything from warm accent lighting to colour-changing effects. It is suitable for indoor and outdoor installations (outdoors, use a strip rated for the location) and can be painted if you want it to match a specific colour.
Installation tipsThe series uses standard mounting, and its ordering guide offers
end caps without a hole, with a hole for the cable, or one of each, which helps you finish the ends neatly. Plan the cable exit and the location of the LED driver before you start, install and test the strip, then put the opaque lens in place. Standard lengths are 8 and 16 feet, and
custom lengths are available up to 192 inches. Any line-voltage connection should be made by a licensed electrician.
Technical specificationsModel: LCPROF-84-16FT-BK-LENS-OPAQ
Series: Aluminum profile 84 series
Length: 16 ft
Colour: Black aluminum
Lens: Opaque
Material: 6063-T5 aluminum

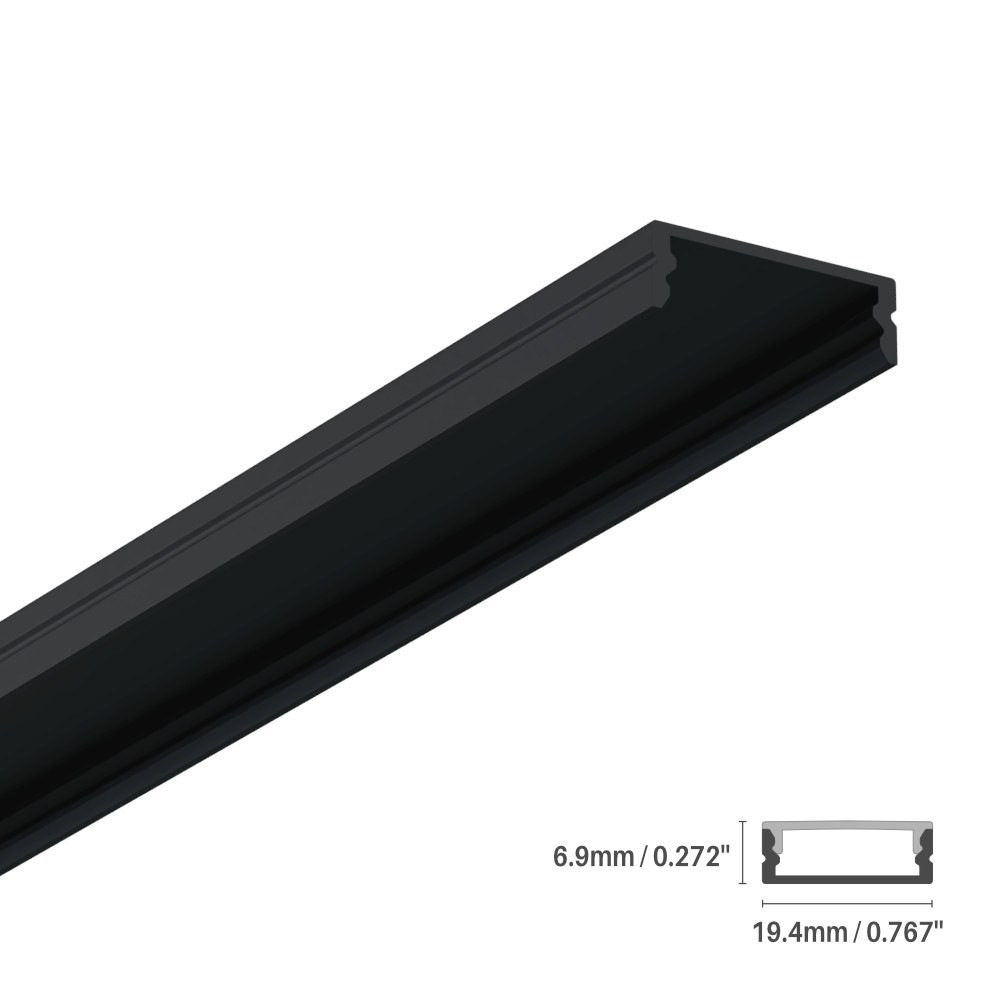

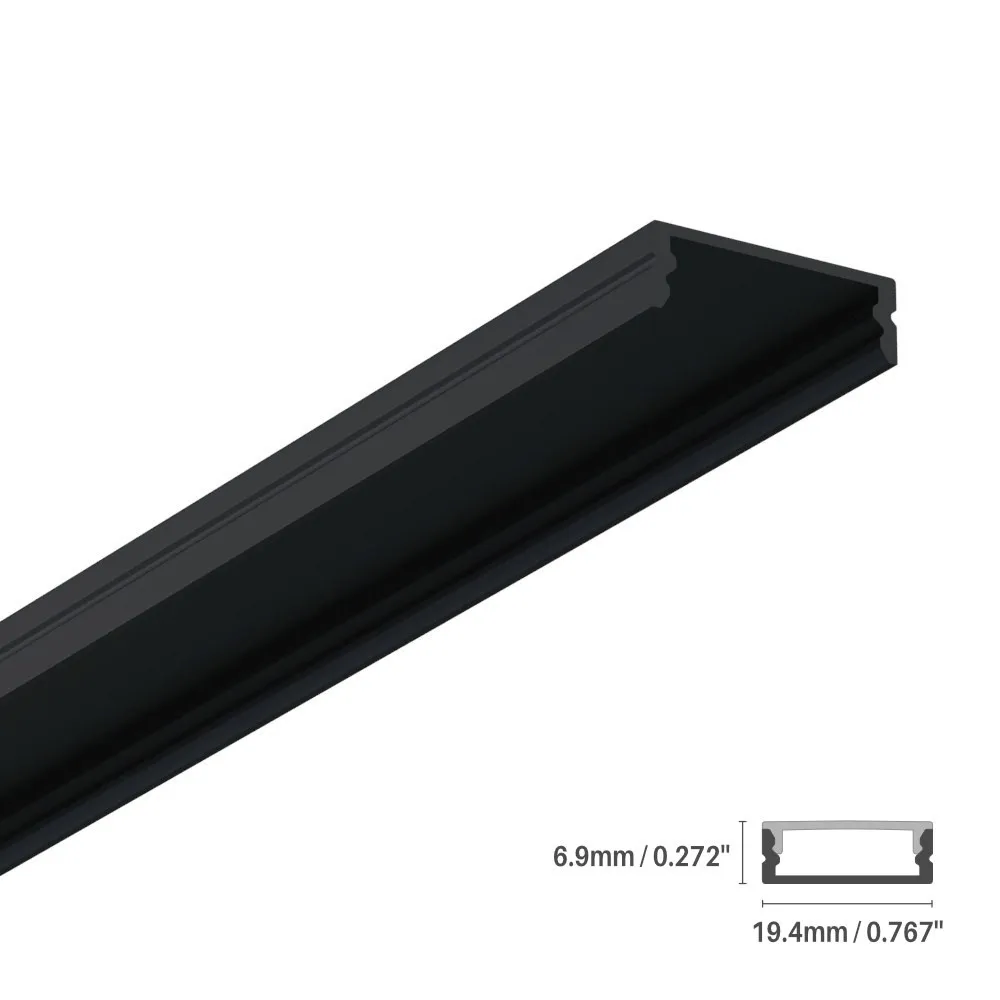

Drawing dimensions: 19.4 mm (0.767 in), 6.9 mm (0.272 in), 16.5 mm (0.649 in)
Compatible strips: White and coloured (RGB-RGBW) LED strips
Use: Indoor and outdoor
Mounting: Standard
Custom fabrication: Up to 192 inches
Certification: Certified for the Canadian market
Applications and documentationThis
slim LED channel is ideal for kitchen cabinets, bookcases, closets, retail shelving, bar backs, reception desks and museum-style display cases. At home, it is also a smart choice for a lit headboard niche, a hallway accent or a bathroom vanity shelf. The
spec sheet, with the technical drawing and the ordering guide, is available in the Documentation tab. For a different profile of the same family, see the
LED aluminum profile #13.
