NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-40K

Name: NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-40K
Brand: LEDCO
SKU: LCLS24VFLX-SV-14W-40K
Price: 140.97 CAD
Availability: InStock

SKU: LCLS24VFLX-SV-14W-40K

Brand: LEDCO

Bend it, shape it, light it up: this LED neon flex is the flexible ribbon of light that lets you draw with light instead of just installing fixtures. Often searched as led neon flex, flexible LED neon rope light, led flex sign or simply neon led, it is the modern, glass-free replacement for old-school neon tubing — no fragile glass, no high-voltage transformer, just a soft continuous line with no visible dots. This is the side-view (side-bend) version, which curves sideways along its flat face, so it follows letters, logos, curves, arches and coves the way traditional neon signage used to, while staying low-voltage and safe to handle. It is the go-to choice for signage, cove lighting, accent lines, staircases, bar fronts, home theatres and any project where a clean glowing line does the design work.

Built on a 24V DC platform with a 8 mm wide PCB and 140 LEDs per meter, it draws 14.4W/M (±10%) and delivers an efficient 120 lm/W, so the light stays bright without loading up your circuits. The CRI 90 rendering keeps woods, paint, skin tones and merchandise looking true, and this SKU, LCLS24VFLX-SV-14W-40K, glows at a crisp, modern 4000K neutral white. It is dimmable, rated IP66, and carries a rated life of 50 000+ hours. The profile measures 11 ±0.5 mm by 7.14 ±0.5 mm, runs up to a 5 m max length per run, and can be cut every 50 mm at the marked cut points. It is RoHS and CE compliant, meets IEC 62471 for eye safety, EN 62031 / IEC 60598-1 for protection class, and EN 55015 for radio disturbance.

From a Montréal restaurant sign to a Calgary showroom ceiling cove, a basement bar in the suburbs or a garage workshop that needs a bright graphic line, this side-bend neon does the job indoors and stands up to damp, dusty spots thanks to its IP66 rating. Mount it cleanly with the LCBRACK-FLEX-SV accessory kit for 6.5 x 11 mm side view neon, sold in a pack of 2. Prefer a warmer glow for the same profile? See the Flex Neon 14.4W/M side view 2700K or the Neon Flex 14.4W/M side view 3000K. Ready to draw your first line of light? Add it to your project today.

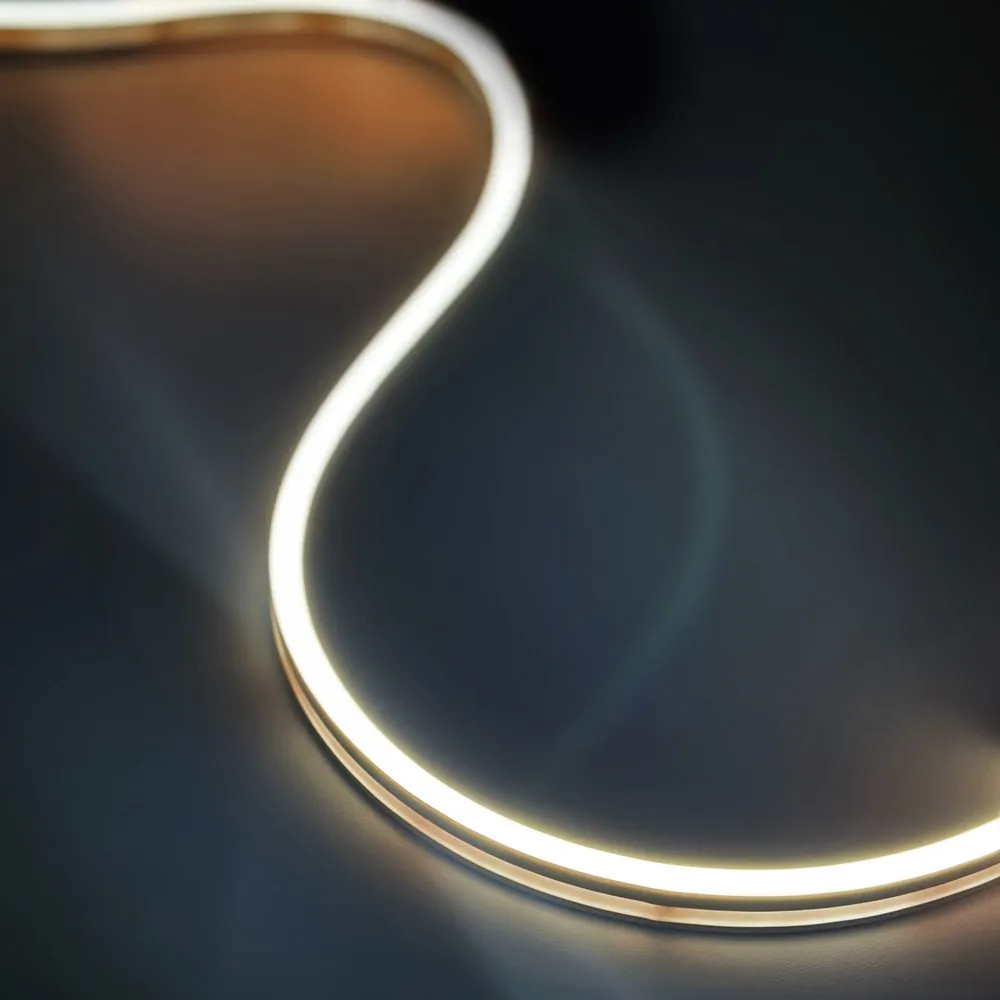

A flexible neon line, without the glass
Traditional neon meant blown glass, high voltage and a phone call every time something cracked. This LED neon flex replaces all of that with a solid, flexible extrusion diffusing a continuous line of light — no hot spots, no visible diodes. The strip inside rides on an 8 mm PCB carrying 140 LEDs per meter, and the finished profile measures 11 ±0.5 mm high by 7.14 ±0.5 mm. The "side view" construction means the run bends on its side (lateral bending), which is exactly what you need for letters, logos, curved reveals and arches, instead of the top-bend behaviour of standard neon flex.

Light quality you can trust on finishes
Efficiency lands at 120 lm/W for 14.4W/M (±10%), a good balance between punch and load per circuit. What really sells this product on a jobsite is the CRI 90 colour rendering: wood grain, painted drywall, stone, fabric and product packaging keep their real colour under the light. This SKU is the 4000K neutral white version, a clean contemporary white that reads modern in commercial spaces and crisp in garages, kitchens and workshops. The family also offers 2700K and 3000K if a warmer ambience suits the room better.

Technical specifications
SKU: LCLS24VFLX-SV-14W-40K
Voltage: 24V DC
Power: 14.4W/M ±10%
LEDs per meter: 140 pcs
Efficacy: 120 lm/W
Colour temperature: 4000K
CRI: 90
PCB width: 8 mm
Profile: 11 ±0.5 mm x 7.14 ±0.5 mm
Max length: 5 m
Cut size: 50 mm
Dimmable: Yes
Protection rating: IP66
Lifespan: 50 000+ hours
Compliance: RoHS, CE, IEC 62471 (eye safety), EN 62031 / IEC 60598-1 (protection class), EN 55015 (radio disturbance)

Electrical and installation notes
Because it runs on 24V DC, this neon needs a low-voltage driver sized for the total wattage of your run, plus headroom. Respect the 5 m maximum length per single feed and split longer designs into several runs fed in parallel — that is how you avoid the voltage drop that makes the far end look dimmer. Cut only at the marked points, every 50 mm, then seal and connect the cut end properly before energizing. The run is dimmable, so pair it with a dimmable 24V driver or an in-line low-voltage dimmer to set the mood in a lounge, a home theatre or a retail display. For fastening, the LCBRACK-FLEX-SV accessory kit for 6.5 x 11 mm side view neon (pack of 2) keeps the line straight and evenly spaced through curves.

Applications, alternatives and documentation
Think illuminated signage and channel letters, bar and reception desk fronts, cove and tray ceilings, staircase nosings, gym and showroom feature walls, garage perimeters and basement entertainment rooms. Its IP66 rating gives peace of mind in humid or dusty areas such as workshops, car washes or covered patios. If a smaller or lower-output profile fits your detail better, look at the Flex Neon 9.6W/M 3x6mm, the Flex Neon 6W/M 6x6mm 4000K, or the Flex Neon anti-glare 10x10mm when glare control is the priority. The full technical PDF (LCLS24VFLX-SV-14W-40K Spec Sheet) is available in the Documentation tab with the dimensional drawings and the complete ordering guide.
