NEON FLEX 9.6W/M - 3X6MM

Name: NEON FLEX 9.6W/M - 3X6MM
Brand: LEDCO
SKU: LCLS24VFLX-3X6-9.6W-27K
Price: 110.97 CAD
Availability: InStock

SKU: LCLS24VFLX-3X6-9.6W-27K

Brand: LEDCO

Want that classic neon glow without the glass, the noise or the fragility? This LED neon flex is the modern answer: a soft, continuous line of light in a flexible silicone-look body you can bend, cut and shape into letters, curves and coves. People search for it as led neon flex, flexible LED neon rope light, led flex sign, neon sign LED or simply neon led — it is all the same idea: a low-voltage strip that reads as one smooth bar of light instead of a row of dots. Slim, discreet and easy to work with, it is made for cove lighting, under-cabinet accents, stair and hallway runs, backlit signage, bar fronts, reception logos and any place you want light you can see the effect of, not the source. SKU LCLS24VFLX-3X6-9.6W-27K.

The numbers behind the look: 9.6W per metre (±10%) delivering 250 lumens per metre at 26 lm/W, with an excellent CRI 90+ that keeps wood grain, paint, skin tones and merchandise looking true. It runs on 24V DC, is dimmable for full mood control, and throws a tight 60° beam angle for a clean, focused line. The profile measures only 3 x 6 mm with a 4 mm PCB, so it slips into the tightest reveals and shadow gaps; cut size is 33.33 mm, maximum run is 5 m, and the minimum bending diameter is 60 mm. Rated IP66, it shrugs off dust and water jets, and it is built for a 50 000+ hour lifespan. Compliance covers EC 62471 eye safety, EN 60529, EN 62031 / IEC 60598-1, EN 55015 and RoHS, plus CE.

From a Montréal condo kitchen toe-kick to a garage ceiling perimeter, a basement stair rail, a salon mirror surround or a café's backlit sign, this neon flex handles residential and commercial projects alike, indoors or in covered exterior spots where its IP66 rating earns its keep. Operating range is -20°C to 45°C, which suits most sheltered Canadian installs. Need a cooler light or a longer run? Look at the Flex Neon 3x6mm 24V 9.6W 40K or the Flex Neon 3x6mm 24V 9.6W 30 metres. Plan your run, pair it with a 24V DC supply, and light it up.

Built to bend, made to last
This LED neon flex uses a flexible, fully encapsulated body over a 4 mm PCB, giving you a continuous glowing line with no visible diodes and no hot spots. The tiny 3 x 6 mm section is one of the slimmest formats available, so it disappears into coves, reveals, channel letters and handrails. It bends perpendicular to the PCB with a minimum bending diameter of 60 mm, and every bend angle must stay greater than 60° to protect the internal circuits. Avoid bending directly over the circuit board, never twist the strip, and unroll the coil properly — insert a rod into the reel, set it on the box and rotate to unwind rather than pulling the product.

Light quality you can trust
With a CRI of 90+, colours stay honest: wood tones, textiles, paint finishes and merchandise all look the way they should, which matters in retail, hospitality and kitchens. Output is 250 lumens per metre at 26 lm/W for 9.6W per metre, a level that flatters surfaces without glare, and the 60° lighting angle keeps the beam controlled along the run. Because the light is diffused across the whole length, you get the look of classic neon signage with modern LED efficiency and no glass to break.

Technical specifications
SKU: LCLS24VFLX-3X6-9.6W-27K
Power: 9.6W/m ±10%
Lumens per metre: 250 LM
Efficacy: 26 LM/W
CRI: 90+
Voltage: 24V DC
Dimmable: Yes
Lighting angle: 60º

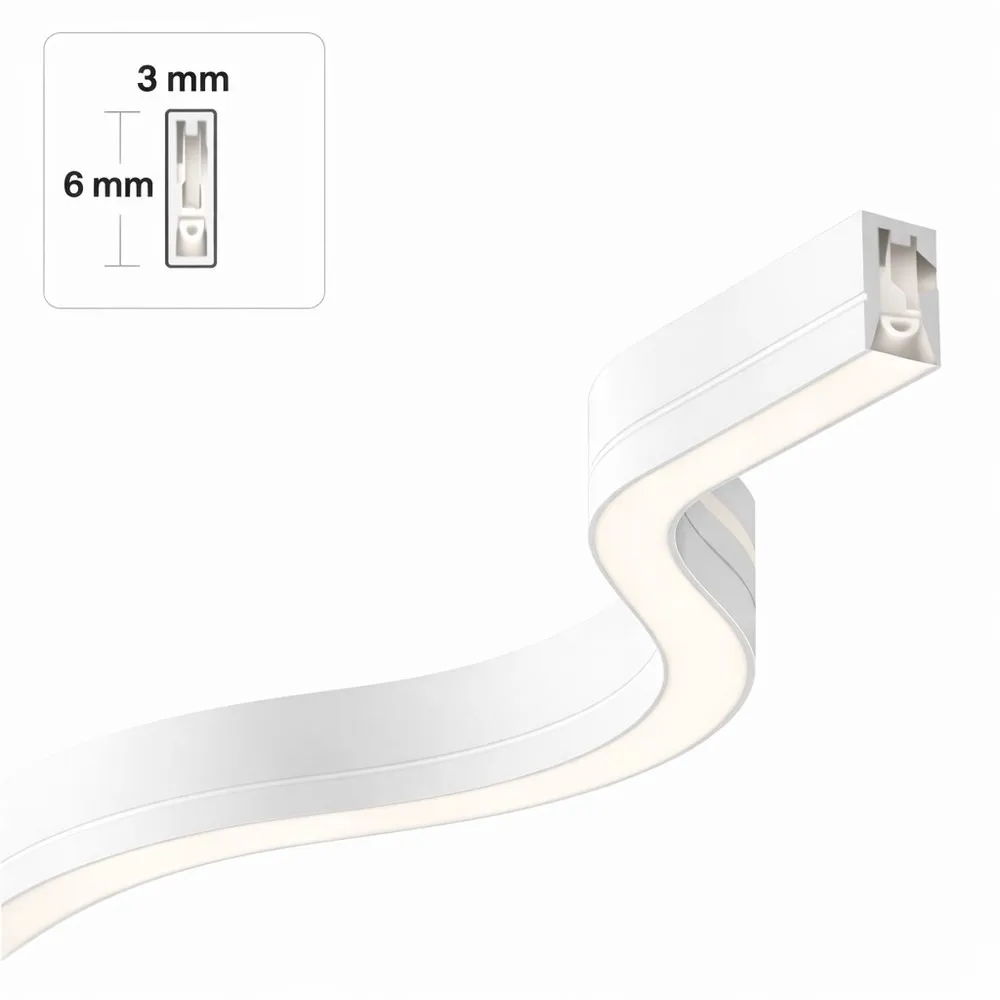

Dimensions: 3 x 6 mm
PCB width: 4 mm
Max length: 5 m
Cut size: 33.33 mm
Minimum bending diameter: 60 mm
Protection rating: IP66
Lifespan: 50 000+ hours
Operating temperature: -20°C to 45°C
Standards: EC 62471, EN 60529, EN 62031 / IEC 60598-1, EN 55015, RoHS, CE

Electrical and installation notes
Installation must be done by a qualified electrician, with the power disconnected — never install or splice a live strip. Cut only on the marked cut lines (a scissor logo on the PCB, on the underside), respecting the 33.33 mm cut size, and keep each run within the 5 m maximum length. At every splice, make a secure connection and apply proper insulation, waterproofing and anti-corrosion treatment. Confirm wiring before powering up and keep the supply voltage within 0.5V of the rated 24V DC; do not run the power supply at full load. Because this strip draws 9.6W/m, under 14.4W/m, no extra heat sink is required on an aluminum profile. Avoid organic solvents, acidic or alkaline glues and strong acid or alkali environments, and never touch the LED surface with sharp tools.

Where it works and what's available
Think toe-kick and under-cabinet lines in a kitchen, a glowing perimeter on a garage or basement ceiling, stair nosings, headboard backlighting, bar and reception fronts, display cases, gym mirrors and backlit LED neon signs or logos. The IP66 rating covers dusty shops and damp, sheltered areas. Need other looks from the same family? Compare the Flex Neon 6W/m 6x6mm for a squarer 6 x 6 mm profile, the Flex Neon 3x6mm 24V 9.6W 40K for a cooler tone, or the Flex Neon anti-glare white 10x10mm for larger architectural runs. The full technical spec sheet for this model, including handling and bending diagrams, is in the Documentation tab.
