NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-27K-30M

Name: NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-27K-30M
Brand: LEDCO
SKU: LCLS24VFLX-SV-14W-27K-30M
Price: 828.97 CAD
Availability: InStock

SKU: LCLS24VFLX-SV-14W-27K-30M

Brand: LEDCO

Bend it, shape it, light it up — this is the LED neon flex that lets you draw with light. Known on jobsites and in searches as neon flex LED, flexible LED neon rope light, LED flex sign tubing or simply LED neon, this 6.5 x 11 mm side-view strip bends sideways (left and right, in the plane of the roll) instead of up and down. That single detail is what makes it the go-to product for cursive letters, logos, signage, curved cove details, handrails, stair nosings, backlit bar fronts and any layout where the light has to follow a horizontal curve without pinching or dead spots. Sold on a 30-metre roll, it gives you one continuous, even line of light with no visible dots — the look of glass neon, without the fragility, the heat or the high voltage.

This run is the 2700K warm white version, SKU LCLS24VFLX-SV-14W-27K-30M, a cosy candlelight-style glow that flatters wood, brick and warm paint. It draws 14.4W per metre at 24V DC and delivers 120 lm/W with 140 LEDs per metre on an 8 mm PCB, so the output is bright and perfectly smooth. Colours stay true thanks to a CRI of 90, and the neon is dimmable for setting the mood. It is rated IP66, cuttable every 50 mm, with a maximum run of 5 m per feed, and it is RoHS and CE compliant, tested to IEC 62471 for eye safety, EN 62031 / IEC 60598-1 for protection class and EN 55015 for radio disturbance. Lifespan is rated at 50 000+ hours.

Restaurants, cafés, barbershops, gyms, boutiques, home theatres, basements, garages, kitchen toe-kicks and headboards — anywhere a Canadian homeowner or contractor wants a warm, modern accent, this neon LED delivers. Because it runs on low-voltage DC, you will need a 24V DC driver sized to your total load, and mounting is quick with the LCBRACK-FLEX-SV accessory kit for 6.5 x 11 mm side-view neon (sold in packs of 2). Prefer a different white? The same profile is offered in Neon flex 14.4W/m side view 3000K and Flex neon 14.4W/m side view 4000K. Roll out your design today.

Built to bend the right way

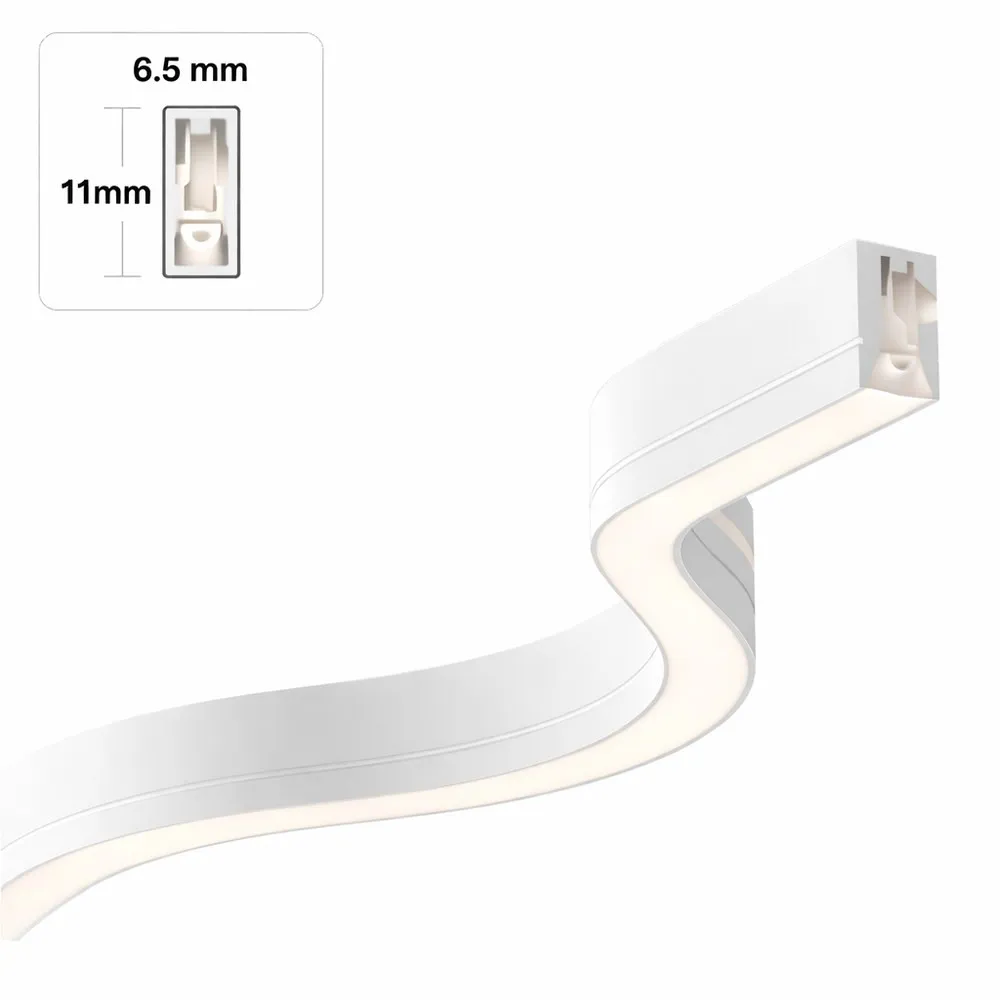

Standard LED strip lighting bends vertically; this side-view LED neon flex bends laterally, which is exactly what you need when you are writing a word, tracing a logo or following a curved counter edge. The body measures 6.5 x 11 mm (11 ±0.5 mm profile height, 8 ±0.2 mm PCB width), so it tucks into slim channels and tight reveals while still producing a continuous glowing line. The diffusing jacket hides the diodes completely — no hot spots, no dotting — which is why designers keep choosing LED neon sign tubing over exposed strip for feature walls and retail displays.

Light quality you can trust
With 140 LEDs per metre and an efficacy of 120 lm/W, this 14.4W/m neon puts out a genuinely usable amount of light, not just a decorative glimmer. The 2700K colour temperature reads as a warm, relaxed white — think incandescent ambience — and the CRI 90 rendering keeps skin tones, wood grain and fabrics looking natural, a real advantage in restaurants, salons and boutiques where product and people need to look their best. Rated life is 50 000+ hours, and the product is tested to IEC 62471 for photobiological eye safety.

Technical specifications
SKU: LCLS24VFLX-SV-14W-27K-30M
Type: Flex Neon Side View, 6.5 x 11 mm
Voltage: 24V DC
Power: 14.4W/m ±10%
Colour temperature: 2700K
CRI: 90
Efficacy: 120 lm/W
LEDs per metre: 140 pcs
PCB width: 8 mm
Cut size: 50 mm
Max length: 5 m
Dimmable: Yes
Protection rating: IP66
Lifespan: 50 000+ hours
Compliance: RoHS, CE, IEC 62471, EN 62031 / IEC 60598-1, EN 55015
Roll length: 30 m

Wiring and installation
This is a 24V DC low-voltage product, so plan a driver whose output matches your total wattage (metres x 14.4W) with headroom, and keep each powered run to the 5 m maximum length to avoid voltage drop; longer designs are simply fed from both ends or split into several circuits. Cut only on the marked 50 mm intervals, seal every cut end properly, and mount with the LCBRACK-FLEX-SV accessory kit made for 6.5 x 11 mm side-view neon (pack of 2) — the clips people search for as "clip for neon". The neon is dimmable when paired with a compatible 24V dimming driver or controller, which is how you take a bar from bright service lighting to late-night ambience. Its IP66 rating means it shrugs off dust and water jets, so it also suits covered patios, garages and damp basements.

Where it shines and what else to look at
Use it for signage and lettering, backlit bar fronts, curved cove ceilings, stair and handrail accents, display cases, gym walls, home theatre soffits and headboards. Same side-view profile, different whites: Neon flex 14.4W/m side view 3000K for a neutral-warm look and Flex neon 14.4W/m side view 4000K for a crisper white. For slimmer top-bend details, look at the Neon flex 9.6W/m 3x6mm or the softer Flex neon 6W/m 6x6mm. The full technical PDF (LCLS24VFLX-SV-14W-27K-30M Spec Sheet) is available in the Documentation tab with dimensions and compliance details for your submittals.
