FLEX NEON 6W/M - 6X6MM - LCLS24VFLX-6X6-6W-40K

Name: FLEX NEON 6W/M - 6X6MM - LCLS24VFLX-6X6-6W-40K
Brand: LEDCO
SKU: LCLS24VFLX-6X6-6W-40K
Price: 135.97 CAD
Availability: InStock

SKU: LCLS24VFLX-6X6-6W-40K

Brand: LEDCO

Give your project that smooth, glowing line of light that everyone stops to look at. This LED neon flex — also called flexible LED neon rope light, neon flex strip or LED flex sign tubing — replaces old glass neon with a solid, bendable silicone-style profile that lights up evenly from end to end, with no dots and no hot spots. Its slim 6x6mm body bends around curves, letters, coves and corners, which makes it the go-to choice for LED neon signs, logos, cove lighting, staircases, under-cabinet accents, bar fronts and backlit feature walls. SKU LCLS24VFLX-6X6-6W-40K.

Built on a low-voltage 24V DC constant-voltage platform, this neon flex draws 6W per metre and runs cool and quiet, so it's easy to hide inside a channel, a reveal or a millwork groove. It's fully dimmable, and works with DMX, PWM, 0-10V and MLV incandescent dimming systems, so you can go from bright display mode to a soft evening glow. The 60º beam gives a tight, well-defined line of light, and the tiny 6x6mm cross-section lets you tuck it into spaces where a traditional fixture simply won't fit. It carries an IP67 protection rating, handles operating temperatures from -20°C to 60°C, and is rated for 50 000+ hours of life — real numbers that matter when a sign or a cove is hard to reach once it's installed.

Homeowners use it for kitchen toe-kicks, headboards, home theatres, basement bars and stair nosings; contractors and small businesses run it in restaurants, cafés, gyms, salons, boutiques and office reception walls. With a temperature range down to -20°C, it also suits covered Canadian exteriors like soffits, porch ceilings and protected signage. It cuts every 27.78mm at the marked lines, and installs with the matching accessories — end caps with or without line out, stainless steel rings and fixed clips (a great answer to the classic "clip for neon" search). Need a different look? Compare it with the Flex neon 6W/m 6x6mm in a warmer tone, the longer Flex neon 6x6mm 24V 6W 40K 30 metres roll, or the slimmer Flex neon 3x6mm 24V 9.6W 40K. Map out your run, pick your power supply, and start bending light your way.

Built to bend, built to last

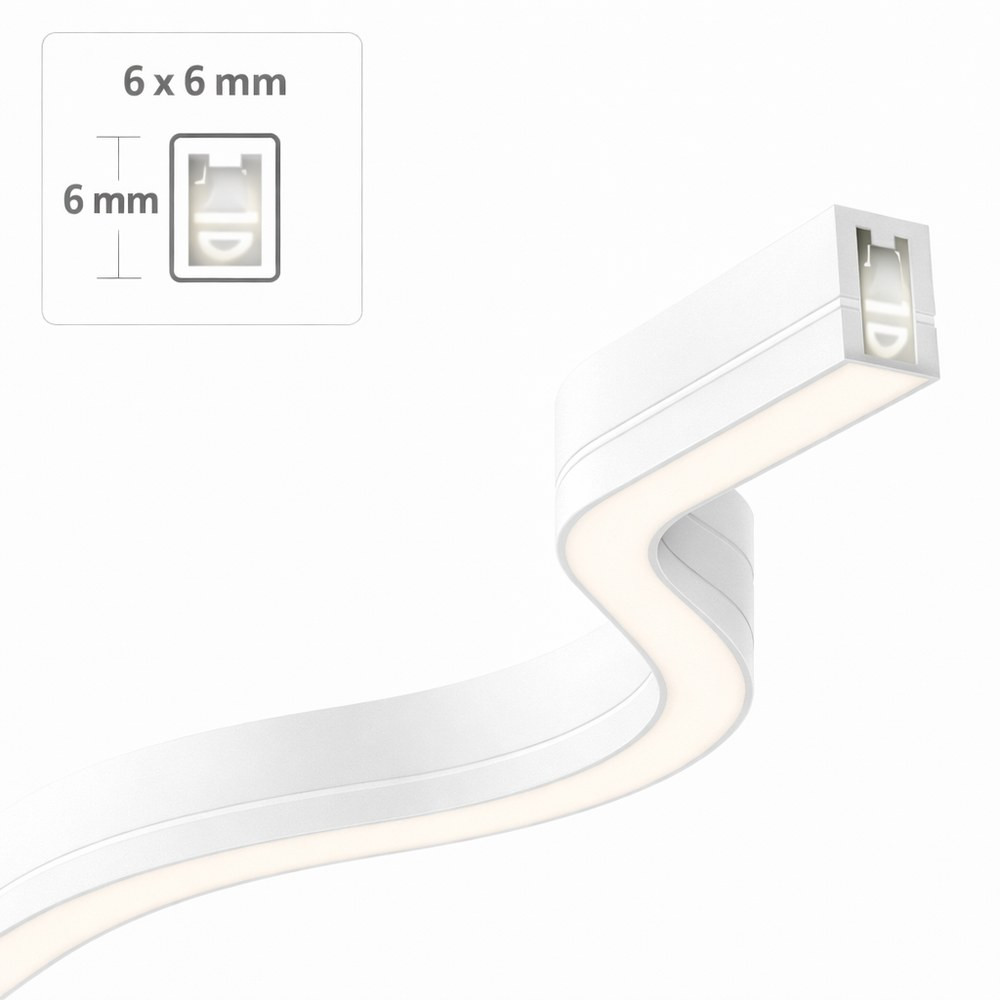

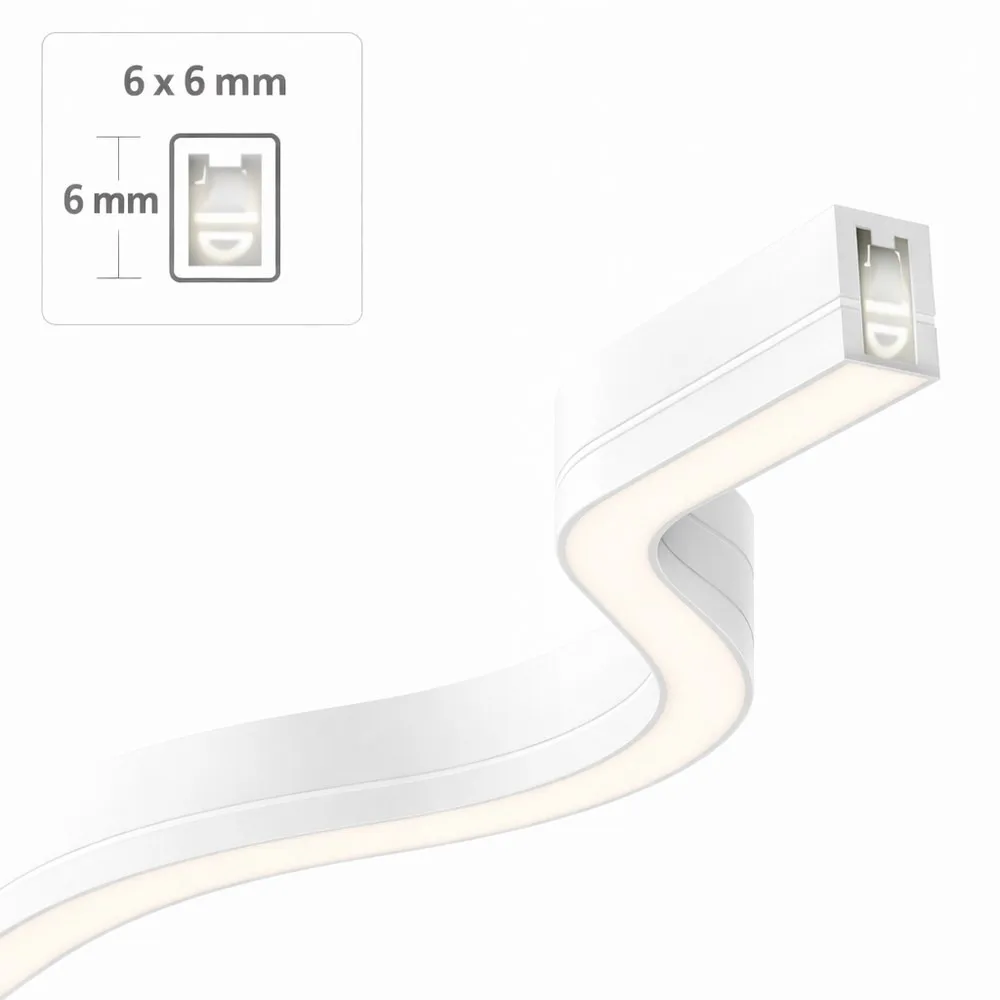

This LED neon flex uses a flexible, fully encapsulated 6x6mm profile with a diffusing outer body, so the light reads as one continuous line instead of a row of individual diodes. That's what separates true neon flex from a bare strip: you can bend it into letters, script, arcs and coves and the glow stays even the whole way. The compact 6x6mm cross-section is one of the smallest formats available, ideal for tight reveals, thin channels, signage returns and millwork grooves where a larger tube would look bulky or simply not fit.

Light quality and output
Running at 6W per metre on 24V DC, this neon flex delivers a crisp, controlled 60º beam that keeps the light where you aim it. It's a dimmable product, compatible with DMX, PWM, 0-10V and MLV incandescent dimming, which gives designers real creative range: full output for daytime signage and storefront visibility, low output for mood and evening ambiance. Because it's a constant-voltage product, every section of the run receives the same voltage, so colour and brightness stay consistent from the first metre to the last.

Technical specifications
SKU: LCLS24VFLX-6X6-6W-40K
Power: 6W/m
Voltage: 24V DC
Dimensions: 6X6mm
Lighting angle: 60º
Dimmable: Yes (DMX, PWM, 0-10V, MLV incandescent)
Limiting control method: Constant voltage
Operating temperature: -20°C to 60°C
Protection rating: IP67
Lifespan: 50 000+ hours

Cutting, connecting and installing
The flex is cuttable every 27.78mm at the marked cut lines, so you can size each run to the exact letter, shelf or cove. Wiring is straightforward: connect red to positive and black to negative on the PCB, or follow the specific requirements of your control setup. End caps come in several configurations — with horizontal outlet, with left/right outlet, with vertical outlet, or without line out — and are sealed by applying glue around and inside the cap, sliding it on in the direction of the arrow, then applying glue at the outlet point and wiping off the excess. Repeat at the other end and the run is sealed. For mounting, use the fixed clips: choose the clip and screw suited to the product, fasten the clip in position with M3 screws, then press the flex into the clip with the light-emitting side facing outward. Stainless steel rings are also part of the accessory range.

Wiring runs the right way
Parallel connections are strongly recommended for this type of installation, and it's important not to exceed the recommended length — past that point the run starts to dim and the strip can be damaged over time. For a longer continuous line, use a middle connection: a parallel feed wired to the middle of the run prevents dimming at the far end. You can also power the flex from both ends with a double-end connection, which doubles the maximum run length; two identical power supplies can be used, one at each end. Maximum length per run is 5m.

Applications and documentation
Think backlit bar fronts and menu boards in restaurants, illuminated logos and window lettering in boutiques, cove lighting in living rooms and hotel corridors, stair and handrail accents, gym and salon feature walls, and covered exterior soffits in Canadian climates thanks to the -20°C to 60°C range and IP67 rating. The technical PDF spec sheet, including the connection guides and the installation steps for end caps and clips, is available in the Documentation tab. For other formats, see the Neon flex 9.6W/m 3x6mm, the Flex neon 3x6mm 24V 9.6W 40K 30 metres roll, or the Flex neon anti-glare 10x10mm 24V 9.6W 30K 20m for wider coves.

Technical Files
