NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-40K-30M

Name: NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-40K-30M
Brand: LEDCO
SKU: LCLS24VFLX-SV-14W-40K-30M
Price: 828.97 CAD
Availability: InStock

SKU: LCLS24VFLX-SV-14W-40K-30M

Brand: LEDCO

Draw a line of light anywhere you want it: this LED neon flex in a 6.5 x 11 mm side-view profile bends sideways, follows curves, letters and corners, and gives you that smooth, dot-free glow people love. Call it neon flex, flexible LED neon rope light, LED flex sign tubing or simply neon LED — it's the modern, low-voltage answer to old glass neon tubes, without the fragility and without the bulky ballast. Sold here in a 30-metre reel under SKU LCLS24VFLX-SV-14W-40K-30M, it's the go-to for signage, channel letters, cove lighting, stair and handrail accents, bar fronts, display cases, garage and basement perimeter lines, and any project where you want the light to trace a shape instead of just fill a room.

This side-view neon runs on 24V DC and draws 14.4 W per metre (±10%), with 140 LEDs per metre packed on an 8 mm PCB for a continuous line of light and an efficiency of 120 lm/W. The 4000K colour temperature gives a clean, neutral white that reads crisp and modern, and a CRI of 90 keeps skin tones, wood, paint and merchandise looking true. It's dimmable, so you can set the mood from full output down to a soft glow with a compatible 24V dimming system. The extrusion measures 11 ±0.5 mm high with an 8 ±0.2 mm face, can be cut every 50 mm at the marked cut points, and runs up to a maximum length of 5 m per feed. With an IP66 protection rating, RoHS and CE compliance, IEC 62471 eye safety, EN 62031 / IEC 60598-1 protection class and EN 55015 EMC compliance, plus a lifespan of 50 000+ hours, it's built to keep glowing for years.

Use it where a straight linear fixture simply can't go: curved reception desks, restaurant and bar backdrops, salon and retail signage, gym logos, stairwells, kitchen toe-kicks, covered patios, garage perimeters and basement ceilings. The IP66 rating makes it a smart pick for damp and splash-prone Canadian spaces, from three-season rooms to car washes and covered entries. For clean, professional mounting, pair the reel with the LCBRACK-FLEX-SV accessory kit made for 6.5 x 11 mm side-view neon (sold in packs of 2). Prefer a warmer glow? The same profile is offered in Flex Neon 14.4W/m side view 2700K and Neon Flex 14.4W/m side view 3000K. Roll out your design and light it up.

Built to bend the right way
The big difference with a side-view LED neon flex is the bending axis: instead of curving up and down like a standard top-view strip, this 6.5 x 11 mm profile flexes left and right, which is exactly what you need to trace letters, logos, circles, S-curves and rounded furniture edges. The silicone-style body diffuses the 140 LEDs per metre into one even line with no visible dots and no hot spots, and the 8 mm PCB inside keeps the emitting face consistent from one end of the reel to the other. Marked cut points every 50 mm let you size each run precisely on site, and the body carries an IP66 protection code rating for dust and water jets.

Light quality that flatters everything
At 4000K, this run delivers a neutral white that looks crisp and current — ideal for signage, retail displays, workshops and modern kitchens where you want clarity rather than a yellow cast. The CRI 90 rendering keeps colours honest, so brand colours on a sign, produce in a display case or wood grain in a cove stay true. Efficiency sits at 120 lm/W, and because it's fully dimmable, the same installation can go from bright working light to a soft evening glow on a compatible 24V dimming setup.

Technical specifications
SKU: LCLS24VFLX-SV-14W-40K-30M

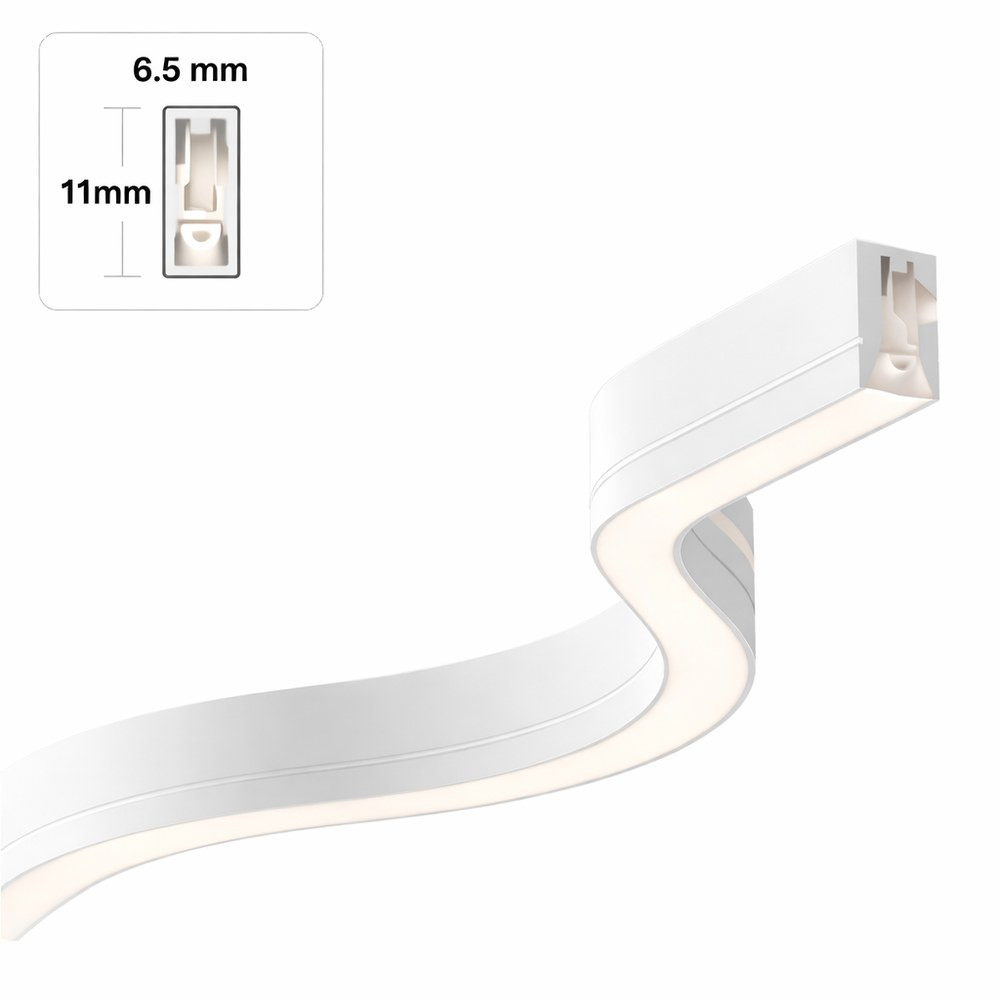

Profile: Side view, 6.5 x 11 mm
Voltage: 24V DC
Power: 14.4 W/m ±10%
LEDs per metre: 140 pcs
Efficacy: 120 lm/W
Colour temperature: 4000K
CRI: 90
PCB width: 8 mm
Height: 11 ±0.5 mm
Face: 8 ±0.2 mm
Cut size: 50 mm
Max length: 5 m
Dimmable: Yes
Protection code rating: IP66
Eye safety: IEC 62471
Protection class: EN 62031, IEC 60598-1
EMC / radio disturbance: EN 55015
RoHS: Yes
CE: Yes
Lifespan: 50 000+ hours

Wiring and installation
This is a 24V DC low-voltage product, so it needs a 24V driver sized for the total load: multiply 14.4 W by the number of metres in the run and keep headroom on the driver. Respect the 5 m maximum length per feed — longer layouts should be split into separate runs fed from the driver to avoid voltage drop and a dimmer end. Always cut on the marked 50 mm lines, seal the cut end properly, and mount with the LCBRACK-FLEX-SV accessory kit designed for 6.5 x 11 mm side-view neon, which comes in a pack of 2 — the brackets hold the curve you shaped and keep spacing even along the run. On dimmed jobs, use a dimming method compatible with the 24V driver you select.

Applications, alternatives and documents
Think storefront channel letters and open signs, bar and restaurant facades, reception desk fronts, stair nosings, handrails, cove ceilings, closet and pantry perimeters, gym and studio logos, garage and basement lines, and covered outdoor entries where the IP66 rating earns its keep. Need the same shape in a warmer tone? See the 2700K side view neon flex or the 3000K side view neon flex. For slimmer top-bending accents, the 3x6 mm neon flex 9.6W/m 4000K, 30 m and the 6x6 mm neon flex 6W/m 4000K are great companions in the same 24V family. The full technical PDF (LCLS24VFLX-SV-14W-40K-30M Spec Sheet) is available in the Documentation tab with dimensions, tolerances and compliance details.
