NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-30K-30M

Name: NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-30K-30M
Brand: LEDCO
SKU: LCLS24VFLX-SV-14W-30K-30M
Price: 828.97 CAD
Availability: InStock

SKU: LCLS24VFLX-SV-14W-30K-30M

Brand: LEDCO

Give your project that hand-bent glass tube look without the fragility, the gas or the service calls: this is LED neon flex in its most versatile form. Often searched as led neon flex, flexible LED neon rope light, LED flex sign tubing or simply neon LED, this 6.5 x 11 mm side view ribbon bends sideways along its flat face, so you can shape letters, logos, curves, arches and long sweeping runs without kinking the light. The continuous silicone body diffuses each diode into one smooth, even line of light — no dots, no hot spots — which is exactly what you want for signage, cove lighting, feature walls, stair nosings, bar fronts and under-counter accents. SKU LCLS24VFLX-SV-14W-30K-30M comes in a 30 m roll, in a warm 3000K tone that flatters wood, brick and matte paint.

Under the silicone, this bande LED néon packs 140 LEDs per meter for a dense, uniform glow, drawing 14.4W/m at 24V DC with an efficiency of 120 lm/W. The 8 mm PCB and a CRI of 90 mean colours stay true — skin tones, merchandise and finishes look the way they should. It is dimmable, rated IP66 for damp and wet-exposed locations, built for 50 000+ hours of service, and certified RoHS and CE, with EN 62031 / IEC 60598-1 protection class, IEC 62471 eye safety and EN 55015 EMC compliance. Cut size is 50 mm and maximum run length is 5 m per feed, so you can plan clean, precise segments.

This neon LED is right at home in restaurants and cafés, retail storefronts, gyms, salons, garages and game rooms, as well as residential kitchens, basements, home theatres and stairwells — and because it runs on low-voltage 24V, it is an easy, safe choice for renovations across Canada where you want light tucked into millwork or a soffit. For mounting, pair it with the LCBRACK-FLEX-SV accessory kit for 6.5 x 11 mm side view neon, sold in packs of 2. Prefer a different white? The same profile is offered as Flex Neon 14.4W/m side view 2700K and Flex Neon 14.4W/m side view 4000K. Map out your run, order your roll and start bending light.

Built to bend, built to last
The whole point of side view LED neon flex is control. Because the flexible body bends laterally along its 11 mm face, you can trace a logo, wrap a column, follow a curved bulkhead or run a perfect radius on a staircase without the tube twisting or the light bunching up. The 6.5 x 11 mm profile keeps the fixture slim enough to disappear inside a cove, a reveal or a channel letter, while the sealed silicone jacket protects the diodes from dust and moisture at an IP66 rating. With 140 LEDs per meter on an 8 mm PCB, the emitters sit close enough together that the finished line reads as one continuous stroke of light — the look people expect from real glass neon, without the breakage.

Light quality that flatters the room
This roll is a warm 3000K white, the tone most people choose for hospitality, retail and living spaces because it feels inviting rather than clinical. Paired with a CRI of 90, it renders wood grain, textiles, food, artwork and paint colours faithfully, so your accent lighting adds to the design instead of washing it out. Efficiency is rated at 120 lm/W, and the product is dimmable, so you can dial the intensity up for daytime visibility and down for evening ambience with a compatible 24V dimming setup.

Technical specifications
SKU: LCLS24VFLX-SV-14W-30K-30M

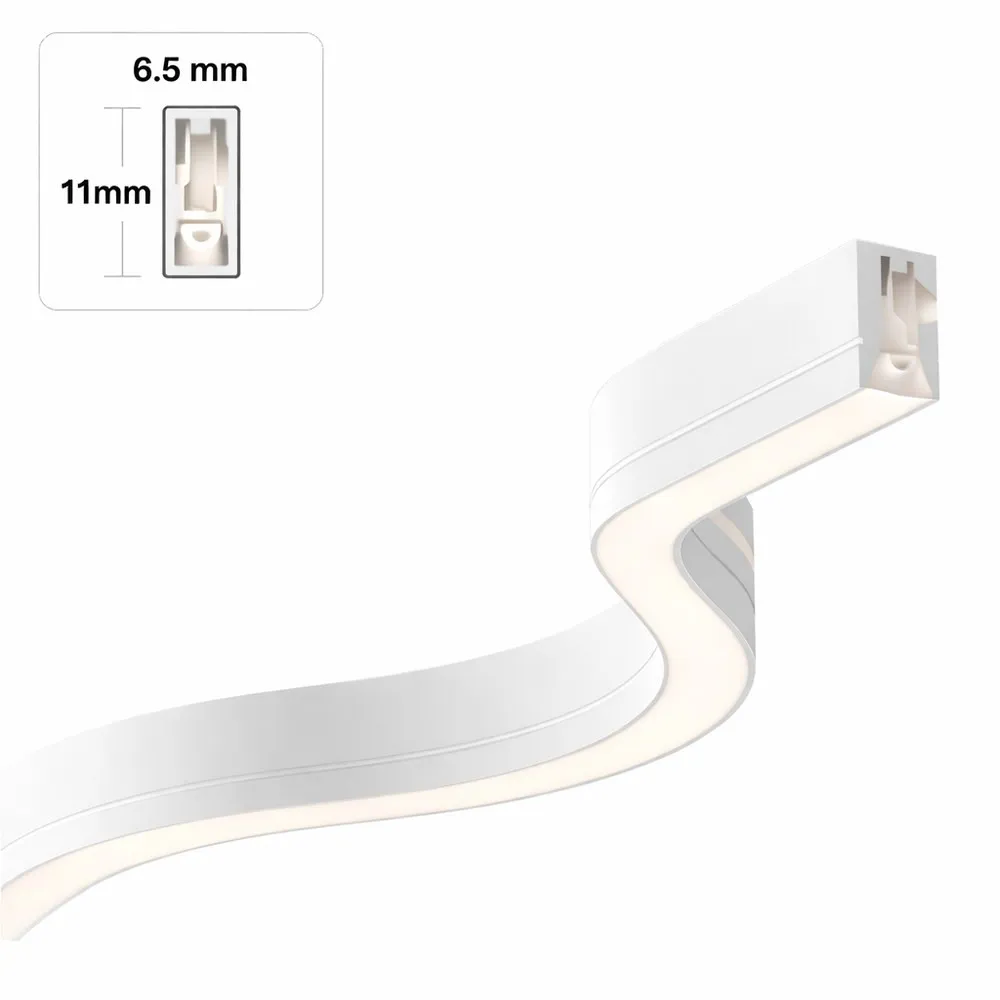

Profile: 6.5 x 11 mm side view
Voltage: 24V DC
Power: 14.4W/m ±10%
LEDs per meter: 140 pcs
Efficacy: 120 lm/W
Colour temperature: 3000K
CRI: 90
PCB width: 8 mm
Max length: 5 m
Cut size: 50 mm
Dimmable: Yes
Ingress protection: IP66
Lifespan: 50 000+ hours
Certifications: RoHS, CE, EN 62031 / IEC 60598-1, IEC 62471 eye safety, EN 55015 EMC

Electrical and installation notes
Plan your layout around two numbers: the 50 mm cut size and the 5 m maximum run per feed. Cut only on the marked points, then feed longer designs from multiple points rather than chaining past 5 m, which keeps brightness even from the first meter to the last. Everything runs on low-voltage 24V DC, so you will need a properly sized 24V driver, ideally with headroom above the total wattage of your run (14.4W per meter x your length). For mounting, the LCBRACK-FLEX-SV accessory kit is made specifically for 6.5 x 11 mm side view neon and comes in a pack of 2 — use it to hold clean curves and tight corners in place instead of relying on adhesive alone.

Where it works and what to read
Think storefront signage and channel letters, restaurant and bar back-walls, gym and studio feature walls, retail display shelving, hotel corridors, home theatre coves, kitchen toe-kicks and island overhangs, stairwell handrails and garage perimeters. The same side view profile is also stocked in 2700K, 3000K and 4000K if your project needs a different white, and slimmer options such as the Neon Flex 9.6W/m 3x6mm suit tighter reveals. The full technical PDF (LCLS24VFLX-SV-14W-30K-30M Spec Sheet) is available in the Documentation tab with dimensions, tolerances and the complete specification table.
