NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-30K

Name: NEON FLEX 14.4W/M - SIDE VIEW - LCLS24VFLX-SV-14W-30K
Brand: LEDCO
SKU: LCLS24VFLX-SV-14W-30K
Price: 140.97 CAD
Availability: InStock

SKU: LCLS24VFLX-SV-14W-30K

Brand: LEDCO

Give your project that glowing, hand-bent neon look without the glass, the gas or the fragility. This LED neon flex — also called flexible LED neon rope light, LED flex neon or neon strip for signs — is a solid, fully encapsulated light line that bends sideways to follow letters, logos, curves and coves exactly the way you draw them. Model LCLS24VFLX-SV-14W-30K is the side view (side bend) version in warm 3000K, sold as a continuous run you shape on site. It's the go-to choice for neon sign LED lettering, storefront branding, backlit reception desks, stair nosings, bar fronts, cove ceilings and any place where a straight rigid strip simply can't follow the shape.

Running on safe 24V DC, this flex delivers 14.4W per metre with 140 LEDs per metre, so the light line reads as a smooth, dotless glow instead of a row of hot spots. Efficiency reaches 120 lm/W, and a CRI of 90 keeps wood, paint, fabric and skin tones looking rich and true — a real difference on signage and hospitality millwork. The 3000K warm white is inviting without going yellow. The PCB measures 8 mm wide, the maximum run is 5 m per feed, and the cut size is 50 mm, so you can trim the length precisely where you need it. It is dimmable, rated IP66 against dust and water jets, RoHS and CE compliant, tested to IEC 62471 for eye safety, EN 62031 / IEC 60598-1 for protection class and EN 55015 for radio disturbance, with a rated life of 50 000+ hours.

From a Montréal café logo to a Calgary gym feature wall, a basement home theatre soffit or a covered patio in a Canadian winter, this side-bend neon does the dramatic work. Because it is an IP66 24V line, it pairs naturally with a 24V DC constant-voltage driver and a compatible dimmer, and it is designed to be secured with the LCBRACK-FLEX-SV mounting clip kit for 6.5 x 11 mm side view neon (pack of 2) — the clip most people are looking for when they search "clip for neon". Need another colour temperature for the same run? See the same profile in Neon flex 14.4W/m side view 2700K or Neon flex 14.4W/m side view 4000K. Sketch your shape, order your length and let it glow.

Built to bend, built to last

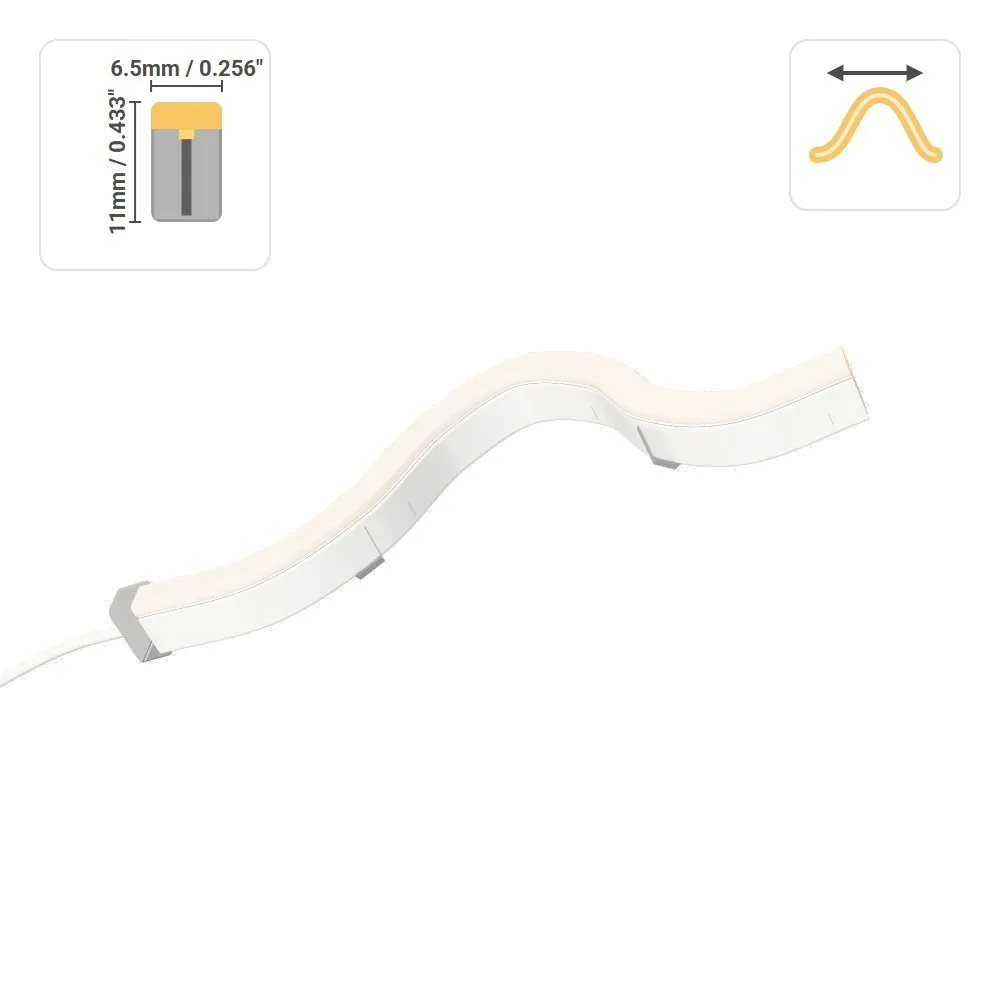

This LED neon flex is a fully encapsulated flexible light line with a side view (lateral bending) profile, meaning it curves left and right along its flat face instead of up and down. That's exactly what you need to form letters, script logos, arrows, circles and tight cove returns without kinking the circuit board. The 8 mm wide PCB carries 140 LEDs per metre, so the diffused body emits one continuous ribbon of light rather than visible dots — the classic glass-neon look, with none of the breakage risk. Each run can reach a maximum length of 5 m, and the flex can be trimmed at a cut size of 50 mm to land precisely on your layout.

Light quality that flatters the work
With CRI 90 and an efficiency of 120 lm/W, this neon renders colours honestly while keeping the load low. The 3000K warm white of SKU LCLS24VFLX-SV-14W-30K is the sweet spot for restaurants, boutiques, salons, bedrooms and living rooms — warm and welcoming, but still crisp enough for signage to read clearly from the sidewalk. It is also dimmable, so you can dial the glow down for evening ambiance or up for daytime visibility on a bright storefront.

Technical specifications
Model: LCLS24VFLX-SV-14W-30K
Voltage: 24V DC
Power: 14.4W/M (±10%)
LEDs per metre: 140 pcs
Efficiency: 120 lm/W
CRI: 90
Colour temperature: 3000K
PCB width: 8 mm
Maximum length: 5 m
Cut size: 50 mm
Dimmable: Yes
Protection rating: IP66
Lifespan: 50 000+ hours
Compliance: RoHS, CE, IEC 62471 (eye safety), EN 62031 / IEC 60598-1 (protection class), EN 55015 (EMC / radio disturbance)

Wiring, mounting and compatibility
Because this is a 24V DC low-voltage neon, it needs a constant-voltage 24V power supply sized for the total wattage of your run: multiply 14.4W by the number of metres installed, then leave headroom on the driver. Respect the 5 m maximum per feed and inject power from both ends or from a centre feed on longer layouts to avoid voltage drop at the far end. Cut only on the marked 50 mm points, seal the cut end, and feed from the +24V connection points. For mounting, the LCBRACK-FLEX-SV accessory kit is made for this 6.5 x 11 mm side view neon and comes in a pack of 2 — ideal for holding curves and letter shapes flat against a backer panel. With its IP66 rating, the flex handles dust and water jets, which opens up covered exteriors, canopies and washdown areas as well as interiors.

Applications and documentation
Think illuminated storefront lettering and window signs, backlit bar fronts and reception desks, gym and arcade feature walls, stair and handrail accents, kitchen toe-kicks, headboard halos, pool house soffits and garage shop detailing. Contractors like it because one continuous line replaces a dozen fussy fixtures. The same profile is available in Neon flex 14.4W/m side view 2700K and Neon flex 14.4W/m side view 4000K, and in a longer bulk run with Neon flex 14.4W/m side view 3000K 30M. For slimmer details, look at the Neon flex 9.6W/m 3x6mm. The full technical PDF (LCLS24VFLX-SV-14W-30K Spec Sheet) with dimensions and the accessory reference is in the Documentation tab.
