NEON FLEX 14.4W/M - TOP VIEW - LCLS24VFLX-TV-14W-40K-30M

Built to bend, built to last

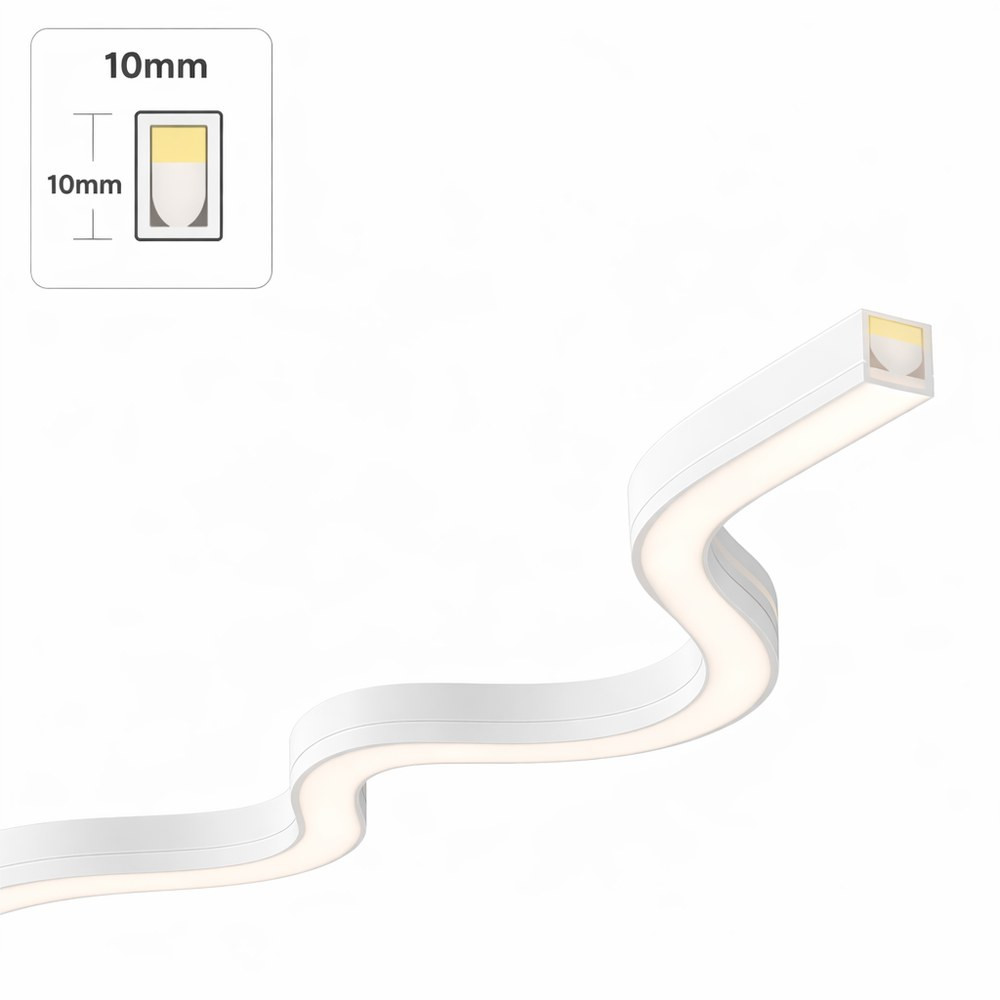

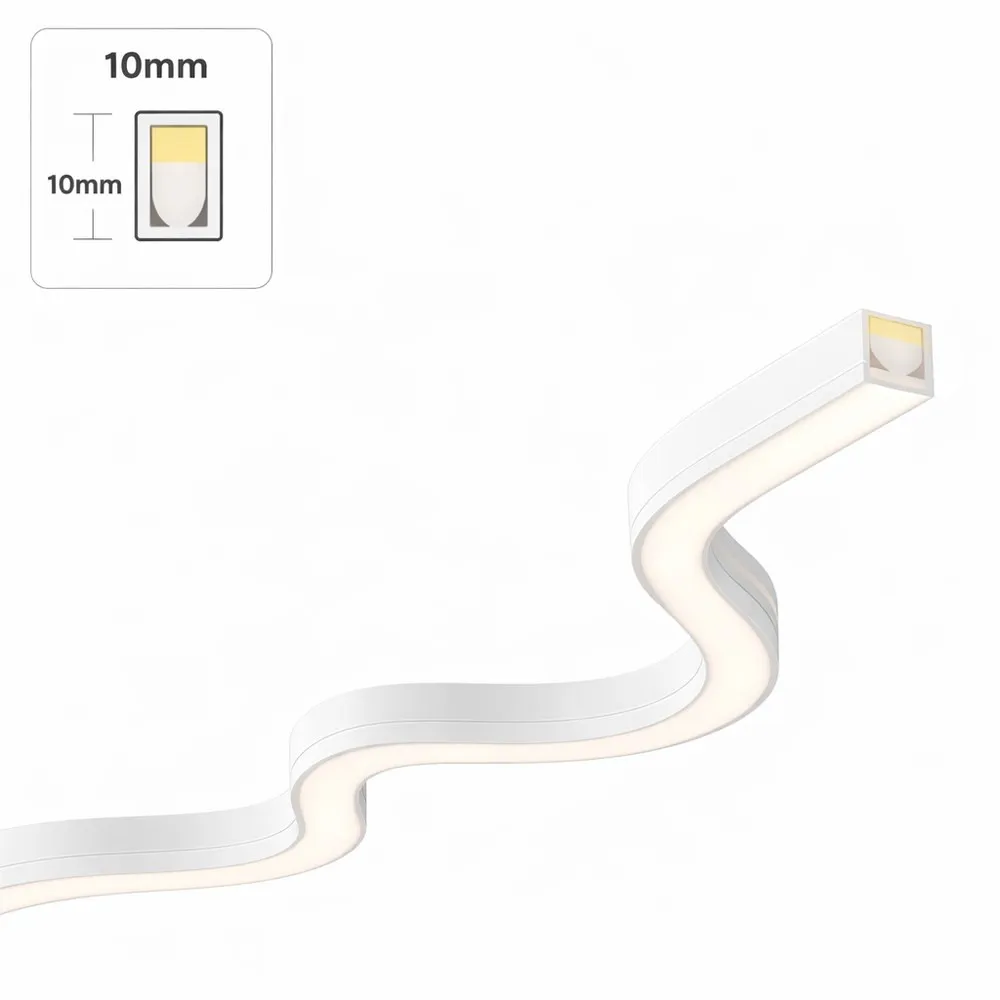

This LED neon flex uses a flexible silicone-style top view body measuring 10 ±0.5 mm across, with an 8 mm wide PCB inside carrying 140 LEDs per metre. That high LED density is what kills the "dotted" look of cheap flexible LED neon rope light and gives you the smooth, continuous halo of real glass neon — without the fragility. The emitting face points straight up (top view), so the light throws out of the front of the tube rather than the side, which is exactly what you want for coves, signage faces and straight architectural lines. The roll is supplied in 30 metres, with a cut size of 50 mm so you can size each run precisely on site.

Light quality you can trust
Efficiency is rated at 120 lm/W, and the CRI 90 output means colours stay true — important when the light grazes brick, millwork, product displays or a painted logo. This SKU is supplied at 4000K, a neutral white that feels crisp and contemporary next to white ceilings, stainless steel and modern cabinetry. The product is dimmable, so you can dial the mood down for a lounge, a home theatre or an evening patio scene using a compatible 24V dimming system. Eye safety is covered by IEC 62471.

Technical specifications
SKU: LCLS24VFLX-TV-14W-40K-30M
Voltage: 24V DC
Power: 14.4W/M ±10%
LEDs per metre: 140pcs
Efficacy: 120 lm/W
CRI: 90
Colour temperature: 4000K
Profile: 10 ±0.5 mm, top view
PCB width: 8 mm
Cut size: 50 mm
Max length: 5 m
Dimmable: Yes
Protection rating: IP66
Compliance: RoHS, CE, IEC 62471, EN 62031 / IEC 60598-1, EN 55015
Lifespan: 50 000+ hours
Roll length: 30 m

Electrical and installation notes
Because it is a 24V DC low-voltage product, it needs a 24V constant-voltage driver sized for the total load: multiply 14.4W by the number of metres you are feeding, then leave headroom. Respect the maximum run of 5 m per feed — longer single runs will show voltage drop, so bring a fresh feed from the driver or inject power at both ends. Always cut on the marked 50 mm increments and seal any new end properly before installing in a damp area; the IP66 rating protects the extrusion, not an open cut. The LCBRACK-FLEX-TV accessory kit, designed for 10 x 10 mm top view neon and sold in a pack of 2, gives you clean, evenly spaced mounting clips instead of improvised fasteners.

Where it works and what goes with it
Contractors use this neon flex LED for perimeter coves in living rooms and basements, backlit bar fronts, gym and garage accent lines, stair and ramp edges, restaurant ceilings, retail display cases and custom LED neon signs and letters. If your project calls for a smaller tube or a different white, look at the Flex Neon 3x6 mm 24V 9.6W 4000K 30 metres, the Flex Neon 6W/m 6x6 mm 4000K, or the Flex Neon anti-glare white 10x10 mm 24V 9.6W 3000K when you need to hide the source from direct view. The full technical PDF (LCLS24VFLX-TV-14W-40K-30M Spec Sheet) is available in the Documentation tab with dimensions, tolerances and the complete accessory reference.
