NEON FLEX 14.4W/M - SIDE VIEW

Name: NEON FLEX 14.4W/M - SIDE VIEW
Brand: LEDCO
SKU: LCLS24VFLX-SV-14W-27K
Price: 140.97 CAD
Availability: InStock

SKU: LCLS24VFLX-SV-14W-27K

Brand: LEDCO

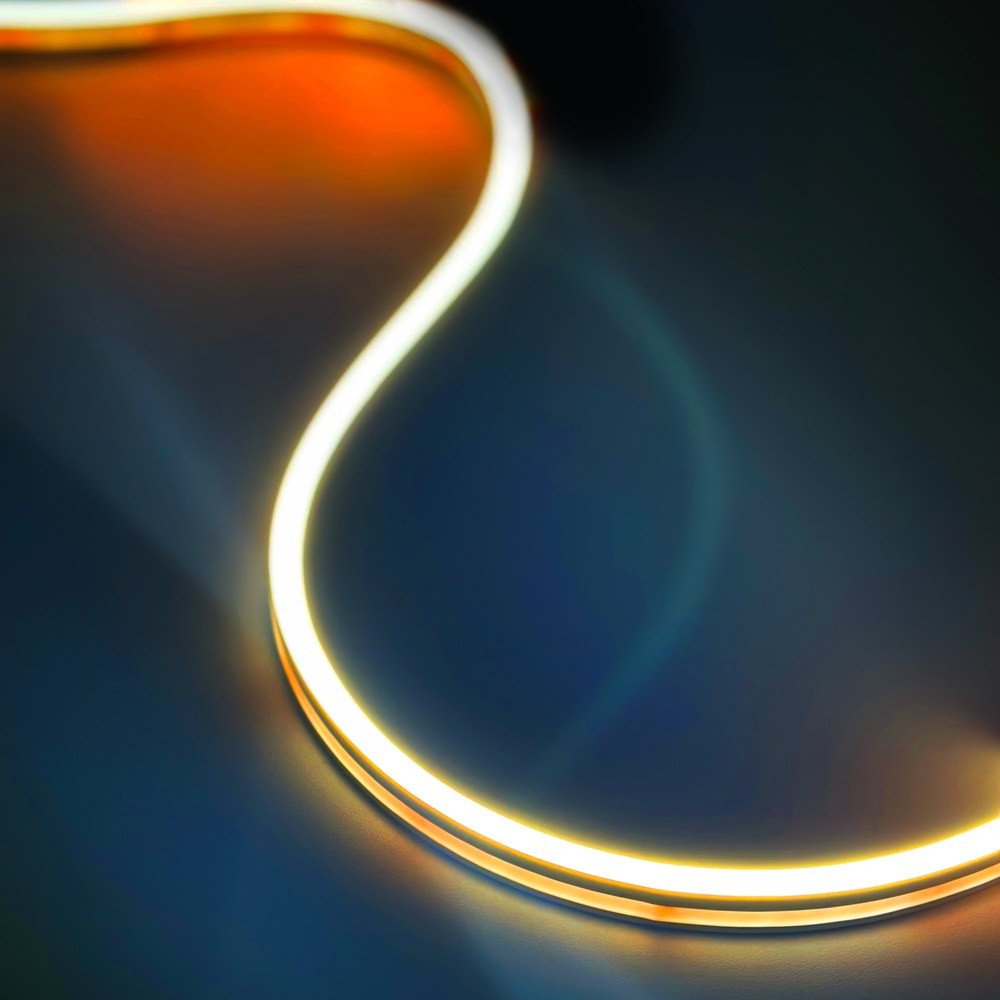

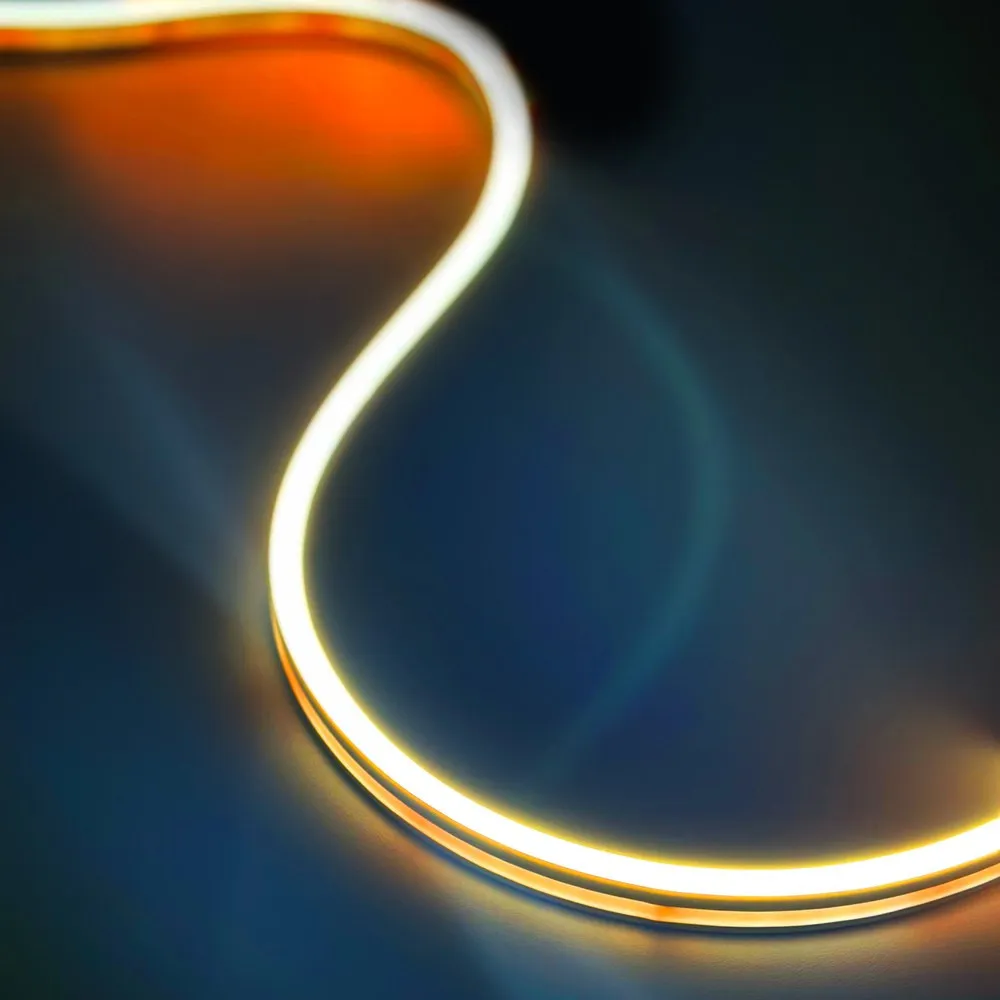

Bend it, shape it, light it up: this LED neon flex in a side view profile is the flexible rope you reach for when a straight line of light just won't do. Often searched as led neon flex, flexible LED neon rope light, neon sign LED or simply led flex sign, it's a continuous, dot-free line of colour that curves sideways — left and right, along the flat of the strip — so you can trace letters, logos, arches, curved bulkheads and rounded cove details without the light breaking up. Where a rigid tube or a standard LED strip fights you at every turn, this side-bending neon follows the shape you draw. SKU LCLS24VFLX-SV-14W-27K delivers a warm 2700K glow, the cosy tone most people want above a bar, along a staircase or around a sign.

Under the silicone you get 140 LEDs per meter and 14.4W/m ±10% of output running on safe 24V DC, with an efficacy of 120 lm/W — a genuinely bright line of light for the energy it draws. The CRI 90 rating keeps woods, paint, skin tones and merchandise looking true instead of washed out, and the colour temperature here is a warm 2700K. It runs up to a max length of 5 m per run, cuts every 50 mm so you can size it to the millimetre, and is built on an 8 mm PCB in a body measuring 11 ±0.5 mm. It is dimmable, rated IP66 against dust and water jets, and carries RoHS and CE compliance along with IEC 62471 eye safety, EN 62031 / IEC 60598-1 protection class and EN 55015 EMC conformity. Rated life is 50 000+ hours.

This is the neon for custom signage, restaurant and café branding, retail displays, gym and salon feature walls, home theatres, headboards, bar fronts, curved coves and stair nosing — and with its IP66 rating it handles damp, dusty Canadian spaces like covered patios, garages and workshops. It pairs naturally with the mounting accessory kit for 6.5 x 11 mm side view neon (LCBRACK-FLEX-SV, pack of 2) and comes in matching colour temperatures if your project needs a different mood: Neon Flex 14.4W/m side view 3000K or Flex Neon 14.4W/m side view 4000K. Sketch the shape, cut, mount, power it up — order your side view neon flex today.

Built to bend the right way
The whole point of a side view LED neon is the direction of the bend. The LEDs sit on an 8 mm PCB inside a flexible body of 11 ±0.5 mm, arranged so the strip curves sideways along its flat face instead of only up and down. That lets you form the tight radii that letters, script logos, circles and serpentine wall art demand, with an even, diffused line and no visible hot spots. With 140 LEDs per meter, the diodes sit close enough together that the run reads as one continuous glow, which is exactly what you want when the light itself is the design element.

Light quality you can trust on camera and in store
At CRI 90, colours stay honest — brick, wood grain, paint finishes, food, clothing and skin tones all hold their character, which matters in restaurants, salons, boutiques and any space that gets photographed for social media. The 2700K warm white of LCLS24VFLX-SV-14W-27K is the inviting, lamp-like tone that flatters lounges, bars, bedrooms and hospitality interiors. Efficacy of 120 lm/W means you get that output without a heavy electrical load, and the run is dimmable, so the same installation can go from bright working light to a soft evening glow.

Technical specifications
SKU: LCLS24VFLX-SV-14W-27K
Colour temperature: 2700K
Power: 14.4W/m ±10%
Voltage: 24V DC
LEDs per meter: 140 pcs
Efficacy: 120 lm/W
CRI: 90
PCB width: 8 mm
Body: 11 ±0.5 mm
Max length: 5 m
Cut size: 50 mm
Dimmable: Yes
Protection rating: IP66
Lifespan: 50 000+ hours
Compliance: RoHS, CE, IEC 62471 (eye safety), EN 62031 / IEC 60598-1 (protection class), EN 55015 (EMC / radio disturbance)

Wiring, cutting and mounting
This neon runs on 24V DC, so plan for a driver sized to the total wattage of your run — at 14.4W/m, a 5 m length draws roughly what the math gives you, and it's smart to leave headroom. Respect the 5 m maximum run and feed longer designs as separate runs back to the supply rather than daisy-chaining beyond the limit. Cut only on the marked 50 mm points, and seal or cap any cut end properly to preserve the IP66 rating, which protects against dust and water jets. For mounting, the accessory kit for 6.5 x 11 mm side view neon (LCBRACK-FLEX-SV, sold in a pack of 2) holds the profile cleanly along curves and corners — a far better answer than adhesive alone on a shaped sign.

Where it earns its keep, and what else to look at
Think custom shop signage and open signs, backlit letters, café and brewery branding, gym motivational walls, barbershop and tattoo studio decor, home bars, media rooms, floating headboards, curved ceiling coves, stair and handrail accents, garage and workshop detailing. Need a different white? The same profile is offered in Neon Flex 14.4W/m side view 3000K and Flex Neon 14.4W/m side view 4000K. For slimmer top-bend profiles on tighter coves, look at the Neon Flex 9.6W/m 3x6mm or the Flex Neon 6W/m 6x6mm. The full technical PDF (LCLS24VFLX-SV-14W-27K Spec Sheet) with dimensions and accessory reference is in the Documentation tab.
