NEON FLEX 14.4W/M - TOP VIEW

Name: NEON FLEX 14.4W/M - TOP VIEW
Brand: LEDCO
SKU: LCLS24VFLX-TV-14W-27K
Price: 127.97 CAD
Availability: InStock

SKU: LCLS24VFLX-TV-14W-27K

Brand: LEDCO

Give your project that hand-bent neon glow without the glass, the gas or the fragility. This LED neon flex — also called flexible LED neon rope light, LED flex sign tubing or simply neon LED — is a continuous top view strip encased in a soft, milky jacket that hides every diode and gives you one smooth, uninterrupted line of light. Top view means the light fires straight out of the face of the tube, so it's the profile you reach for when the neon is seen head-on: signage and logos, cove ceilings, stair nosings, bar fronts, feature walls, under-counter accents, headboards and gaming rooms. It bends along the flat plane, cuts to size, and installs where a rigid fixture simply can't follow the curve.

Built on a 24V DC low-voltage platform, this flex packs 140 LEDs per meter for a dot-free finish and draws 14.4W per meter (±10%) with an efficiency of 120 lm/W — a genuinely bright output for a neon-style product. The 2700K warm white colour temperature delivers that cozy, incandescent-like glow, while a CRI of 90 keeps woods, fabrics, skin tones and paint colours looking true. The tube measures 10±0.5mm with an 8mm PCB width, runs up to a max length of 5m per run, and can be trimmed every 50mm cut size. It is dimmable, rated IP66, RoHS and CE compliant, meets IEC 62471 for eye safety, EN 62031 / IEC 60598-1 protection class and EN 55015 EMC, and is rated for 50,000+ hours of life. SKU: LCLS24VFLX-TV-14W-27K.

From a Montréal café storefront to a basement home theatre in Calgary, this flex is the easy answer for warm, architectural light that survives real Canadian conditions — the IP66 rating handles damp, dusty and splash-prone spots like covered patios, garages and workshops. Mount it cleanly with the LCBRACK-FLEX-TV accessory kit, designed for 10*10mm top view neon and sold in a pack of 2. Prefer a crisper, cooler light for the same profile? See the Flex Neon 14.4W/M Top View 4000K. Pick your length, bend it, light it — your design finally gets the line it deserves.

Construction and profile

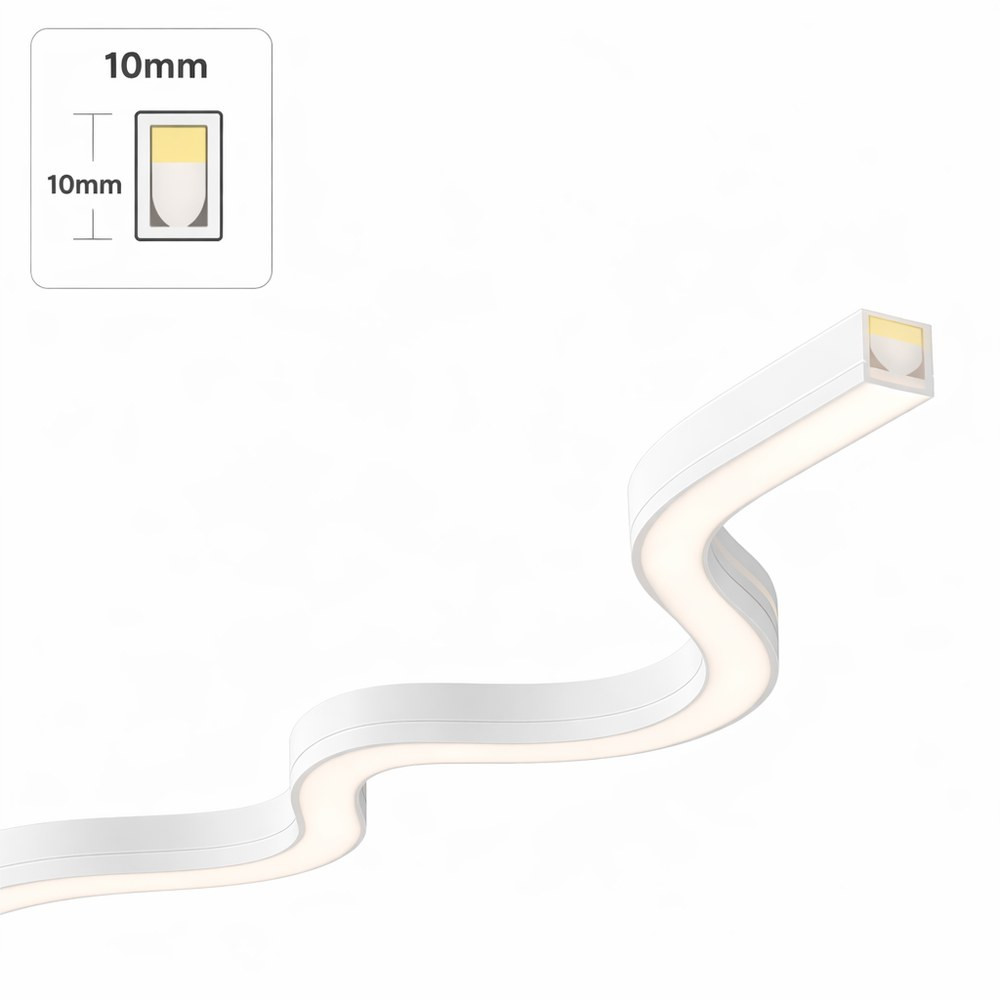

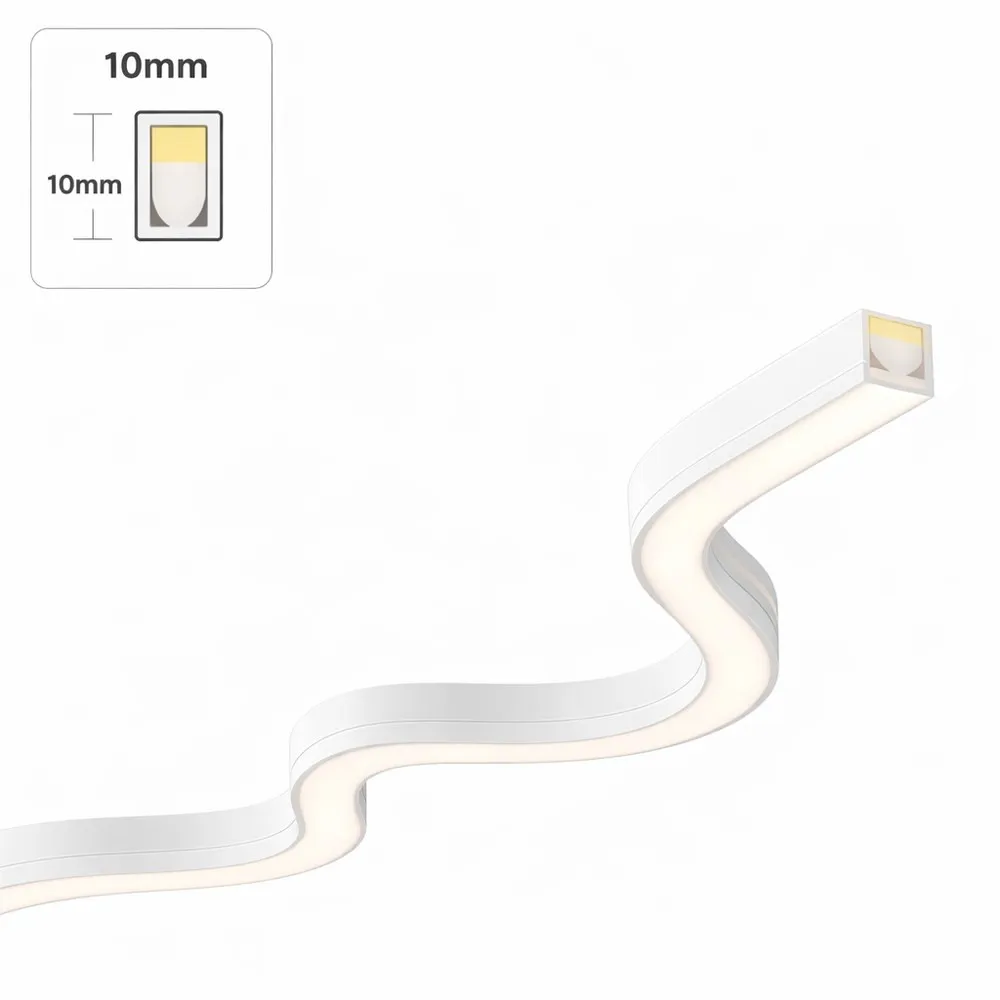

This is a top view LED neon flex: a 24V flexible circuit sealed inside a diffusing jacket that turns individual diodes into one continuous ribbon of light. The tube measures 10±0.5mm, with an internal PCB width of 8mm and a 7.14±0.5mm emitting face, so the beam exits the top of the profile rather than the side — ideal wherever the neon line is viewed straight on. The lead wire is 150±5mm and rolls are supplied at 5000±20mm, with a cut size of 50mm so you can trim the run to fit a sign, a cove or a stair without wasting material.

Light quality
With 140 LEDs per meter, there are no visible hot spots or scalloping along the tube — just a clean, even glow that reads like real glass neon. The 2700K warm white tone is the warmest of the family, the one that flatters wood, brick, brass and warm paint palettes, and that keeps lounges, bedrooms and restaurants feeling relaxed rather than clinical. A CRI of 90 means colours stay accurate under the light, which matters when the flex is washing a feature wall, a backsplash or a retail display. Efficiency sits at 120 lm/W, so you get strong output for every watt consumed.

Technical specifications
SKU: LCLS24VFLX-TV-14W-27K
Voltage: 24V DC
Power: 14.4W/M ±10%
LEDs per meter: 140pcs
Efficacy: 120lm/W
Colour temperature: 2700K
CRI: 90
Profile: 10±0.5mm, PCB width 8mm
Max length: 5m
Cut size: 50mm
Dimmable: Yes
Ingress protection: IP66
Lifespan: 50 000+ hours
Compliance: RoHS, CE, IEC 62471 eye safety, EN 62031 / IEC 60598-1, EN 55015

Electrical and installation
Because it runs on 24V DC, this neon flex needs a low-voltage driver sized to the total wattage of your installation — count 14.4W for every meter installed, then add headroom. Respect the 5m maximum run length and feed longer designs from multiple home runs rather than daisy-chaining past the limit, which protects brightness consistency from end to end. Always cut on the marked 50mm intervals and seal any cut end properly before installing in a damp location. The product is dimmable, so pairing it with a compatible low-voltage dimming setup lets you take a bar, bedroom or media room from full output down to a soft night-time glow. The IP66 rating means it resists dust ingress and water jets, a real advantage in garages, workshops, covered patios and washdown areas.

Applications, accessories and documents
Think illuminated signage and logos, cove and tray ceilings, stair and handrail lighting, toe-kicks, bar and reception fronts, shelving, gym and gaming rooms, and storefront outlines. For clean, professional mounting, use the LCBRACK-FLEX-TV accessory kit made for 10*10mm top view neon (pack of 2) — the clip-style mounting that installers search for when they look for a "clip for neon". Need other formats? Compare the slimmer Neon Flex 9.6W/M 3x6mm for tight reveals, the Flex Neon 6W/M 6x6mm for softer accents, or the Flex Neon Anti-Glare 10x10mm 9.6W when glare control is the priority. The full technical spec sheet for this model is available in the Documentation tab of this page.
