NEON FLEX 14.4W/M - TOP VIEW - LCLS24VFLX-TV-14W-27K-30M

Name: NEON FLEX 14.4W/M - TOP VIEW - LCLS24VFLX-TV-14W-27K-30M
Brand: LEDCO
SKU: LCLS24VFLX-TV-14W-27K-30M
Price: 747.97 CAD
Availability: InStock

SKU: LCLS24VFLX-TV-14W-27K-30M

Brand: LEDCO

Give your project that unmistakable neon glow — without the glass, the gas or the fragility. This LED neon flex is a flexible 24V light rope you bend, shape and cut to write words, trace ceilings, underline a bar or outline a storefront. Shoppers look for it under many names: LED neon flex, flexible LED neon rope light, LED flex sign, neon sign LED or simply neon LED. This is the 10x10mm top view version, meaning the light exits the top face of the profile for a clean, even line of colour with no visible dots — perfect for signage, cove lighting, feature walls, stair nosings and custom shapes that a rigid tube could never follow. It arrives as a continuous 30-metre roll, so long runs go up without multiplying joints.

Under the silicone you get 140 LEDs per meter drawing 14.4W per meter at 24V DC, with an efficiency of 120 lm/W — bright enough to read from across a room or from the sidewalk. The 2700K colour temperature gives a warm, cosy, almost incandescent glow, and a CRI of 90 keeps skin tones, wood and paint colours looking true. It is dimmable, rated IP66 for damp and splash-prone spots, and carries an expected lifespan of 50 000+ hours, plus RoHS and CE compliance, IEC 62471 eye safety, EN 62031 / IEC 60598-1 protection class and EN 55015 EMC. The profile measures 10±0.5mm wide by 10±0.5mm, with an 8mm PCB, a cut size of 50mm and a maximum run of 5m per feed, with a 150±5mm lead wire.

Contractors use it for restaurant and café signage, retail window displays, gym and salon logos, hotel corridors and office reception walls; homeowners love it in basements, home bars, gaming rooms, along kitchen toe-kicks, garage ceilings and covered patios where a warm line of light changes everything. Mount it straight, curved or vertical with the LCBRACK-FLEX-TV accessory kit for 10x10mm top view neon (sold in a pack of 2). Need a cooler look for the same shape? See the Flex Neon 14.4W/m top view 4000K. Order SKU LCLS24VFLX-TV-14W-27K-30M and start bending light your way.

Built to bend, built to last

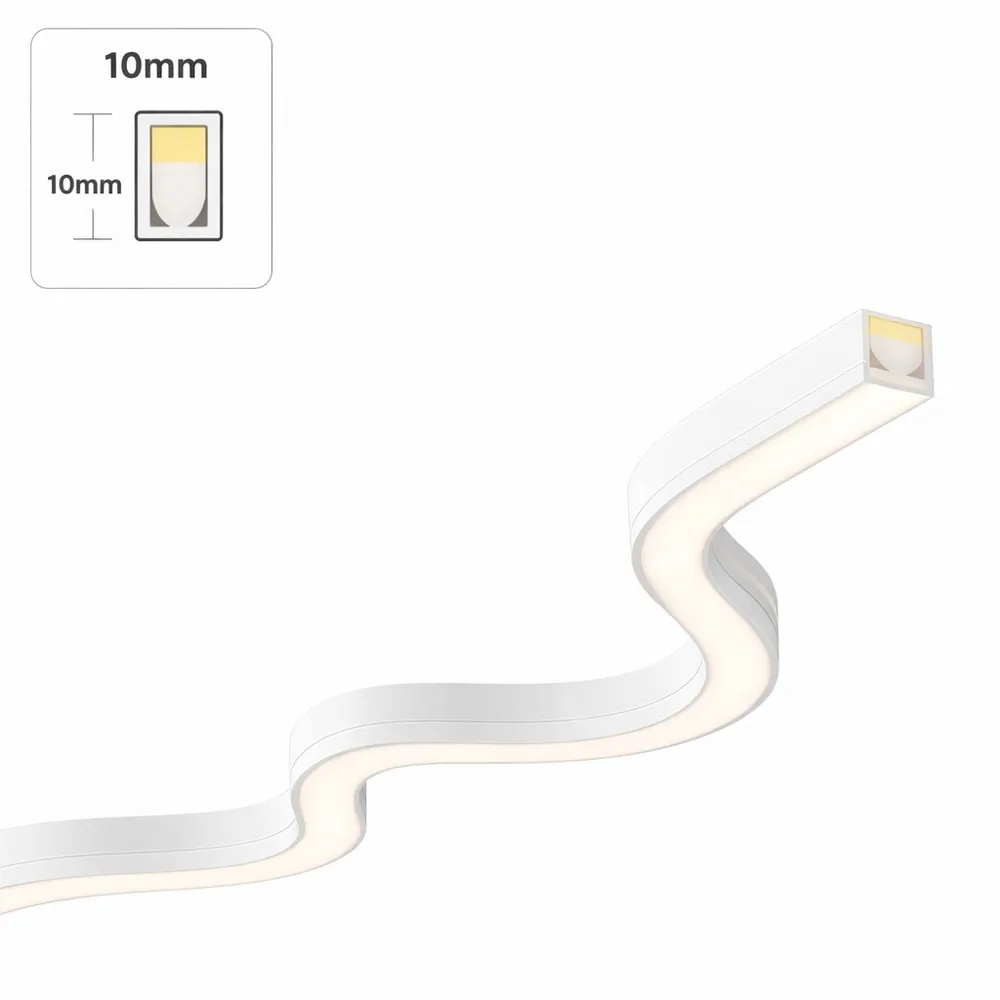

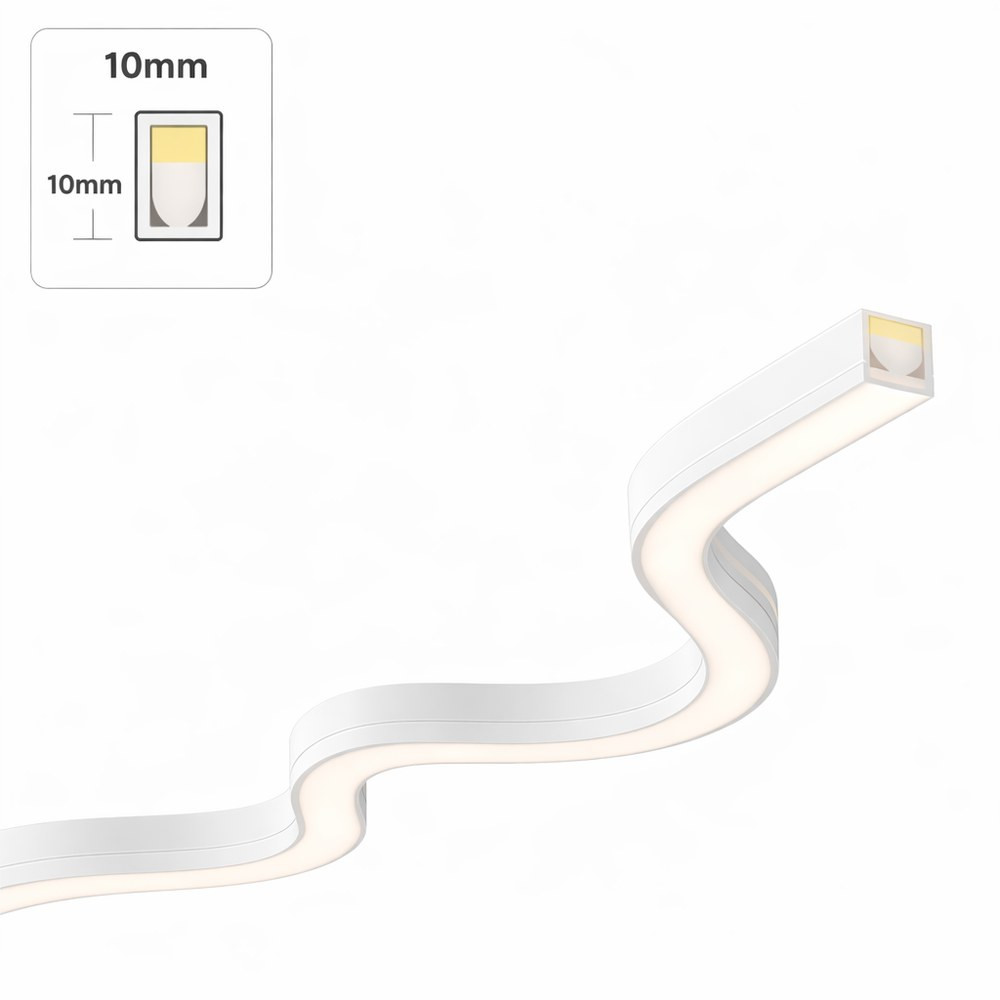

This LED neon flex is a flexible silicone-style profile housing a dense strip of LEDs, designed to imitate classic glass neon while surviving real-world installations. The body measures 10±0.5mm by 10±0.5mm and carries an 8mm wide PCB, with an internal spacing reference of 7.14±0.5mm and a 50±0.5mm structure pitch. Because it is a top view emitter, light leaves through the upper face, giving you a continuous ribbon of colour rather than a row of visible dots — the look people expect from a neon sign LED or an LED flex sign. The 30-metre roll is supplied with a 150±5mm lead wire and a usable section length of 5000±20mm.

Light quality that flatters a room
With 140 LEDs per meter and an output of 120 lm/W, the line stays bright and uniform through every curve. The 2700K warm white reads soft and welcoming — the right choice for hospitality, home bars, bedrooms and anywhere you want the light to feel like an old filament bulb. A CRI of 90 means colours around the light stay honest: wood grain, brick, fabric, menus and merchandise all keep their true tone. The product is dimmable, so you can drop the level for evening ambience using a compatible 24V dimming system on the driver side.

Technical specifications
SKU: LCLS24VFLX-TV-14W-27K-30M
Voltage: 24V DC
Power: 14.4W/M ±10%
LEDs per meter: 140pcs
Efficacy: 120lm/W
Colour temperature: 2700K
CRI: 90
PCB width: 8mm
Profile: 10±0.5mm
Cut size: 50mm
Max length: 5m
Dimmable: Yes
Ingress protection: IP66
Lifespan: 50 000+ hours
Compliance: RoHS, CE, IEC 62471 eye safety, EN 62031 / IEC 60598-1, EN 55015

Wiring, cutting and installation
Everything runs on 24V DC, so you need a 24V power supply sized for the load: multiply 14.4W by the number of metres you are feeding and leave headroom. Respect the maximum run of 5m per feed point — longer runs should be split and fed separately to avoid voltage drop and a faded end of line. Cut only on the marked 50mm cut points, seal any cut end properly, and keep the IP66 integrity intact if the run lives in a garage, a covered patio, a kitchen or a car wash bay. For mounting, the LCBRACK-FLEX-TV accessory kit is made specifically for 10x10mm top view neon and comes in a pack of 2 — exactly what people search for when they type "clip for neon".

Applications, alternatives and documentation
Think restaurant and bar signage, retail window lettering, gym logos, salon mirrors, hotel corridors, stair and handrail accents, coves in living rooms and basements, garage ceilings and Québec three-season rooms where a warm line beats a cold fluorescent tube. If you need the same profile in a neutral white, choose the Flex Neon 14.4W/m top view 4000K; for a shorter run of the same 2700K product, see the Flex Neon 14.4W/m top view. Slimmer profiles are available too, like the Neon Flex 9.6W/m 3x6mm for tight coves and letters, or the low-output Flex Neon 6W/m 6x6mm. The full technical PDF spec sheet is in the Documentation tab.
