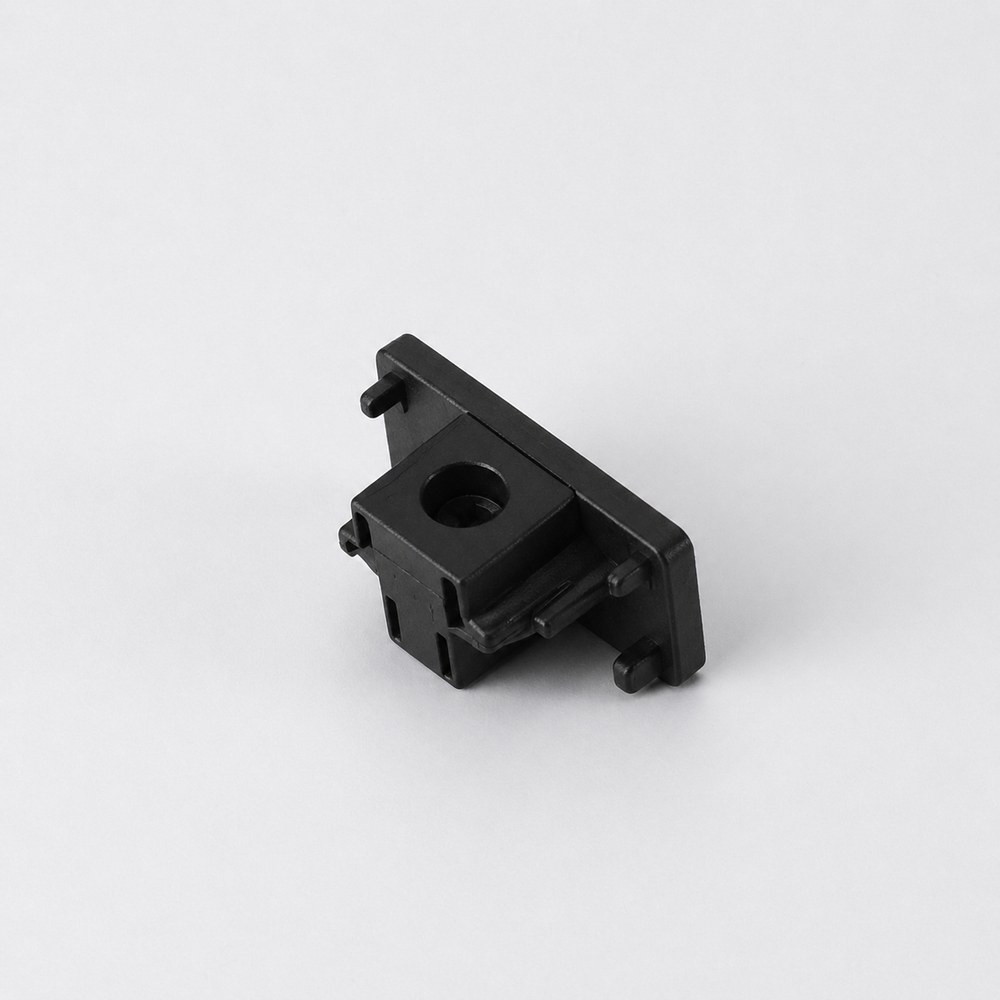

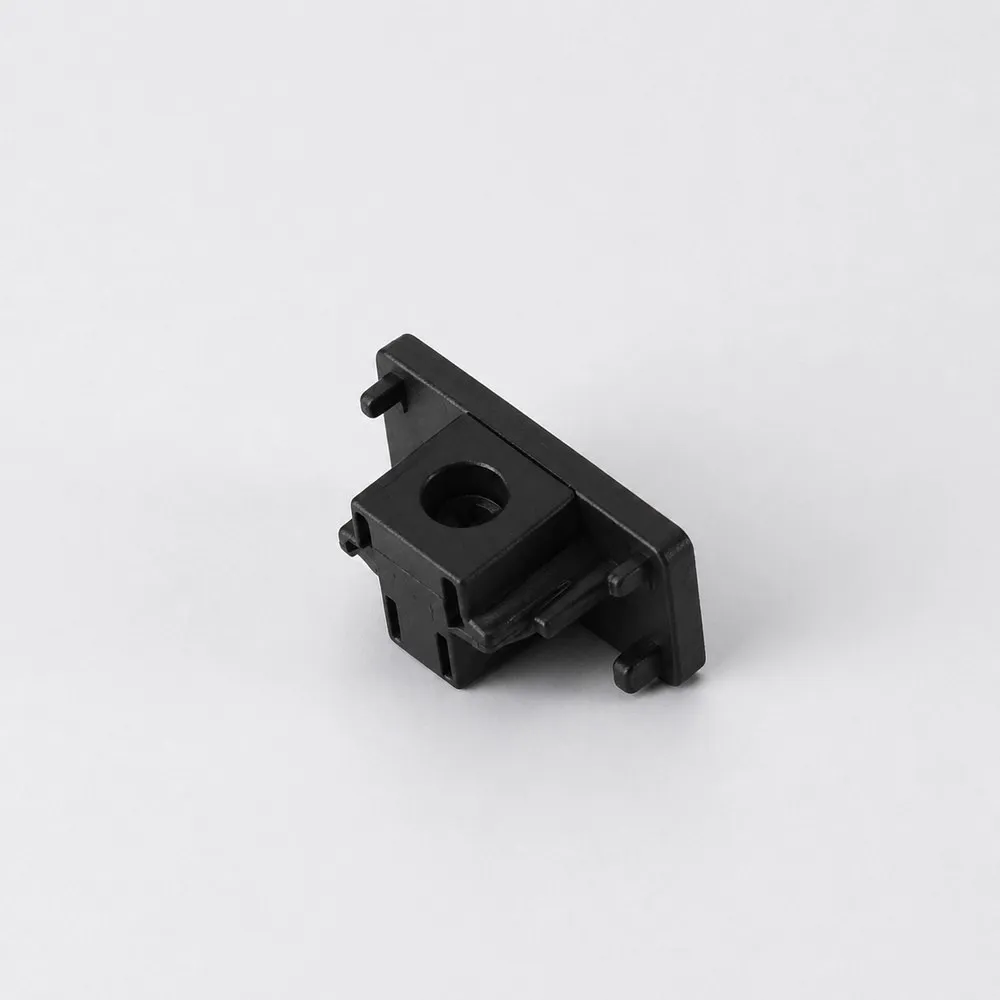

AST TRACK - END CAP - H TYPE - 1 CIRCUIT - BLACK

Name: AST TRACK - END CAP - H TYPE - 1 CIRCUIT - BLACK
Brand: TUROLIGHT
SKU: AST-TRK-H-EC-BK
Price: 5.97 CAD
Availability: InStock

SKU: AST-TRK-H-EC-BK

Brand: TUROLIGHT

Every track lighting run needs a clean, safe finish — and that is exactly what this little piece delivers. The AST TRACK end cap (SKU AST-TRK-H-EC-BK) from TUROLIGHT is the dead-end feed cap, also called a track end cap, end stop or closing cap, made for the ASTELLA H-type, single circuit track system. It slides into the open end of a track section and closes it off, so no one can touch a live conductor and no dust settles inside the channel. If you are searching for track lighting parts, track end caps or accessories for commercial LED track lighting, this black finish cap is the finishing touch that makes an installation look intentional instead of improvised.

Built for the ASTELLA track platform rated 120V, 60HZ, 20A, Class I, IP20, this end cap belongs to the same accessory family as the live end feed (AST-TRK-H-LEC), the straight connector, and the L, T, X and flexible joiners listed in the installation instructions. It is designed strictly for use with TUROLIGHT track — the instructions are clear that only fixture assemblies marked for use with this track should be installed on it. Installation is simple: with the power off at the panel, loosen the set screws, slide the dead-end connector into the open end of the track, then tighten the set screws before switching the main supply back on. The black finish matches black track sections and heads for a continuous, uninterrupted line across the ceiling.

This is the accessory that belongs in every quote: retail shops, boutiques, galleries, cafés and restaurants, offices, showrooms, salons — and at home, over kitchen islands, in hallways, basements and open-concept living rooms. It is made to finish runs built with the AST Track 2 ft H type black, AST Track 4 ft H type black and AST Track 6 ft H type black sections, and it works the same way on the white versions such as the AST Track 8 ft H type white when a two-tone look is wanted. Plan one end cap for every open track end on your project and close the job properly.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-BK, AST-TRK-H-04-BK, AST-TRK-H-06-BK, AST-TRK-H-08-BK, AST-TRK-H-12-BK

5.97$

Supplier availability: In stock (+50)

Learn more
Documentation

A small part that protects a whole installation
An open track end is an exposed conductor waiting for a problem. The AST-TRK-H-EC-BK dead-end cap plugs that opening on the ASTELLA H-type single circuit track, keeping fingers, dust and debris out of the copper channel. In the TUROLIGHT installation sheet it sits alongside the other system connectors — AST-TRK-H-LEC live end feed, AST-TRK-H-SC, AST-TRK-H-LC, AST-TRK-H-TC, AST-TRK-H-XC, AST-TRK-H-FC and AST-TRK-H-MJ — and it carries the same black finish as the black track sections, so the end of the run reads as one clean line instead of a raw cut.

Technical specifications
SKU: AST-TRK-H-EC-BK
Brand: TUROLIGHT
System: ASTELLA Track System, H-type, single circuit
Track voltage: 120V, 60HZ, 20A
Circuit: 1 way (P + N + PE)
Class: Class I
Ingress protection: IP20
Finish: Black
Applicable models: AST-TRK

Electrical and installation details
Always start by shutting off the main supply at the panel before touching track or accessories. Before sliding any connector into the track, loosen the set screws; the instructions insist on this for every connector type. The dead-end cap then slides into the open end of the track and is locked with its set screw. The same sheet reminds installers of the polarity rule for the system: the grounding tabs on connectors must be prepared before sliding onto the NON-GROUND conductor-side tab of the track section being joined, and a connector whose wrong tab has been removed must not be used, because grounding would no longer be maintained. Local installation requirements must be respected, and to reduce the risk of fire, every open end of the completed run must receive a dead-end fitting with its set screw tightened before power is restored.

Compatibility across the ASTELLA family
This cap is dedicated to the H-type single circuit track — it is not a universal part, and the safety notice is explicit that only fixture assemblies marked for use with this track should be installed on it. Use it to terminate runs assembled from the AST Track 2 ft black, AST Track 4 ft black and AST Track 6 ft black sections, or from the white family including the AST Track 12 ft white when a longer run is planned. Heads are mounted by aligning the polarity lines of the track and the lampholder, pushing the top of the adapter with its contact tabs into the track slot and turning 90°; if it does not turn easily, turn the other way rather than forcing it, and press the release lever to remove.

Where it earns its place, and documentation
Think of every project where track lighting runs stop at a wall, a bulkhead or mid-ceiling: a boutique wall of merchandise, a gallery picture wall, a café counter, a hair salon, an office reception, a showroom, or a home kitchen island and hallway. Each open end needs one cap, so count your terminations at quoting time and avoid a second trip. The technical PDF (AST-TRK-H-EC-BK Spec Sheet) with the full bilingual installation instructions is available in the Documentation tab of this page for your electrician or your permit file.
