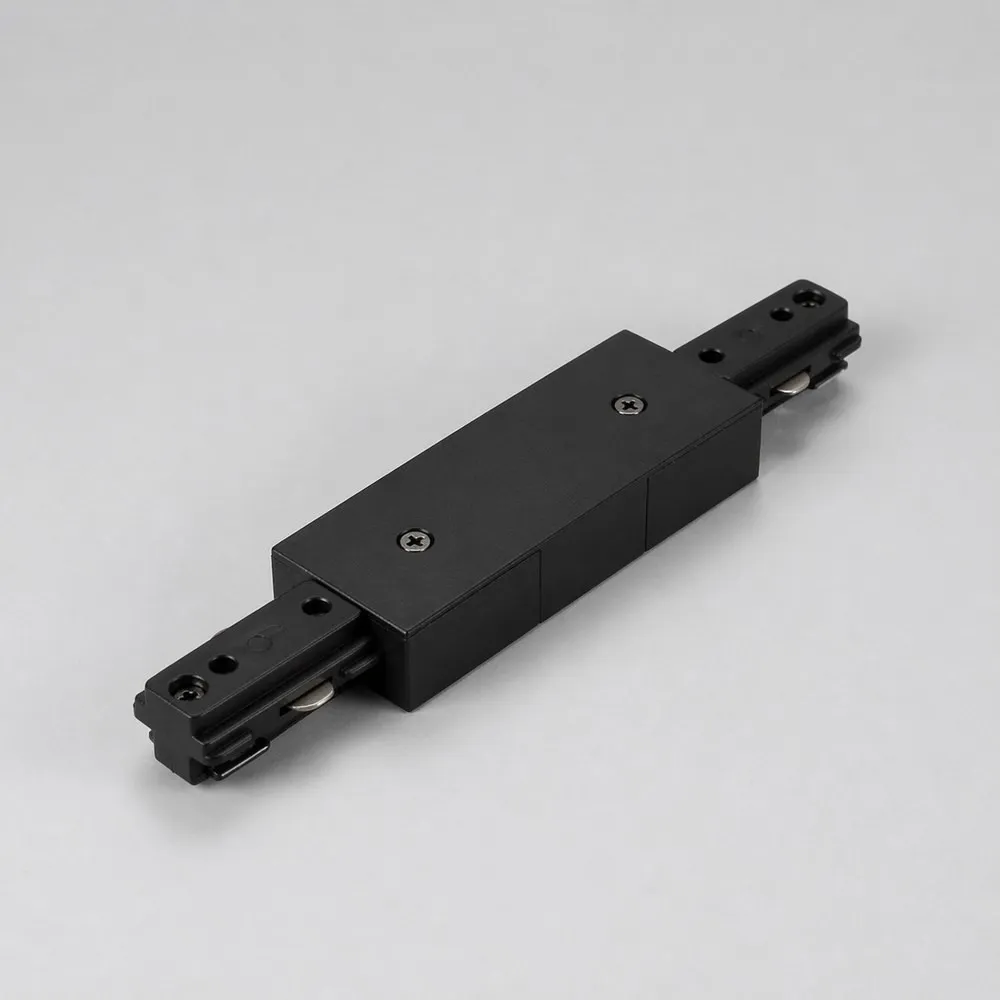

AST TRACK - STRAIGHT CONNECTOR - H TYPE - 1 CIRCUIT - BLACK

Name: AST TRACK - STRAIGHT CONNECTOR - H TYPE - 1 CIRCUIT - BLACK
Brand: TUROLIGHT
SKU: AST-TRK-H-SC-BK
Price: 30.97 CAD
Availability: InStock

SKU: AST-TRK-H-SC-BK

Brand: TUROLIGHT

Need to join two sections of track end to end without a visible break in the light line? The AST TRACK - STRAIGHT CONNECTOR - H TYPE - 1 CIRCUIT - BLACK is the little piece that makes a long, clean run possible. Often searched as a straight track connector, an inline coupler, a track joiner or simply a track lighting connector, this accessory belongs to the ASTELLA track system by TUROLIGHT and is made for H-type, single circuit track. It slides into the open ends of two track sections and keeps the circuit — and the polarity — running straight through, so you can extend a run over a kitchen island, a gallery wall, a display counter or a retail aisle exactly as long as the room asks for. SKU: AST-TRK-H-SC-BK.

Built for the ASTELLA H-type single circuit track, this connector works on a 120V, 60HZ, 20A system, Class I, rated IP20 for dry indoor locations. The black finish matches the black track sections and disappears against dark ceilings, exposed beams and modern black track light heads. Installation follows the same simple logic as the rest of the system: loosen the set screws before sliding the connector into the open end of the track, select and prepare the proper ground tab so circuit polarity is maintained, then tighten the set screws once everything is aligned. Wire connections are made to the screw terminals with 3/8" of insulation stripped — no need to wrap the wire around the screw. Local installation requirements must always be respected, and power must be off at the panel before you start.

This straight connector shines anywhere a single track length isn't enough: long kitchens and open-concept living rooms, basement renovations, boutiques, cafés, salons, art studios, showrooms and small offices across Canada. It is designed to join TUROLIGHT ASTELLA H-type single circuit track sections such as the AST Track 4 ft H type 1 circuit black, the AST Track 2 ft H type 1 circuit black and the AST Track 6 ft H type 1 circuit black. Plan your run, add the connectors you need, and light the whole space in one continuous line.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-BK, AST-TRK-H-04-BK, AST-TRK-H-06-BK, AST-TRK-H-08-BK, AST-TRK-H-12-BK

30.97$

Supplier availability: In stock (+100)

Learn more
Documentation

What this connector actually does
A track run is only as long as the pieces you can link together. The AST TRACK - STRAIGHT CONNECTOR - H TYPE - 1 CIRCUIT - BLACK is an inline joiner: it enters the open end of one track section and the open end of the next, carrying the conductors straight through so both lengths behave as one continuous circuit. That means one feed, one switch, and heads that can slide anywhere along the whole run. It belongs to the ASTELLA track system from TUROLIGHT and is part of the same accessory family as the end connectors, L connectors, T connectors, X connectors and mounting accessories listed for AST-TRK-H hardware.

Technical specifications
SKU: AST-TRK-H-SC-BK
Brand: TUROLIGHT
System: ASTELLA Track System, H-type, single circuit
Track type: 1 circuit (P + N + PE)
Voltage: 120V, 60HZ, 20A
Class: Class I
Protection: IP20
Finish: Black
Applicable models: AST-TRK

Installation, polarity and safety
Start by shutting off the power at the main panel (fuse or breaker box) before installing any track or accessory. Loosen the set screws on the connector before sliding it into the open end of the track — forcing it in with the screws tight is the most common cause of a bad joint. To maintain circuit polarity, the ground tabs on the connector must be prepared before sliding it onto the NON-GROUND conductor-side tab of the track section you are joining; if the wrong tab has been removed, do not use the connector, because grounding will not be maintained. For wire connections, cut and strip the wires from the box (3/8" strip) and secure them to the screw terminals in the connectors or live end feeds. Once all track and connectors are in place, make sure dead-end caps are slid into ALL open ends of the track and that the set screws are tightened before power is restored. To reduce the risk of fire and electric shock, use only fixture assemblies marked for use with TUROLIGHT track, and always follow basic safety precautions and local installation requirements.

Compatibility and how heads attach
This connector is made for H-type, single circuit ASTELLA track and is not interchangeable with other track profiles. Lampholders mount the usual way: align the polarity line of the track with the polarity line of the lampholder, push the top of the mounting adapter (with the contact tabs) into the track slot and turn 90°. If the adapter does not turn easily, don't force it — turn the other way. To remove a head, press the release lever with your index finger and turn 90°. Pair this connector with the black ASTELLA track lengths — AST Track 2 ft, AST Track 4 ft, AST Track 6 ft — or with the white versions such as the AST Track 8 ft H type 1 circuit white when the ceiling is light and the track has to disappear.

Real projects and documentation
Picture a long galley kitchen where a single track section stops short of the sink: one straight connector and a second section carry the line right to the end wall. Same story in a boutique where the display wall keeps growing, in a basement rec room, in a hair salon that needs even light at every chair, or in a small gallery where every canvas deserves its own adjustable head. Because the run stays on one circuit, the whole line still turns on with a single switch, and heads can be repositioned any time the layout changes. The full installation instruction sheet for the AST-TRK H-type single circuit system, in English and French, is available in the Documentation tab of this page — read it before you start, and keep it with your project file.
