AST TRACK - LIVE END CONNECTOR - H TYPE - 1 CIRCUIT - BLACK

Name: AST TRACK - LIVE END CONNECTOR - H TYPE - 1 CIRCUIT - BLACK
Brand: TUROLIGHT
SKU: AST-TRK-H-LEC-BK
Price: 16.97 CAD
Availability: InStock

SKU: AST-TRK-H-LEC-BK

Brand: TUROLIGHT

Every track lighting run needs a place to bring in the power, and that is exactly what this piece does. The AST TRACK live end connector (SKU AST-TRK-H-LEC-BK) from TUROLIGHT is the H-type, single circuit power feed that slides into the open end of an ASTELLA track section and wires it to your ceiling outlet box. People look for it under a lot of names — live end feed, end power connector, track power feed, live end cap, or simply the "track connector" — and they all point to the same small black part that turns a bare aluminum rail into a working track lighting system ready to carry your track heads. If you are planning a straight run above a kitchen island, a retail display wall, or a hallway of art, this is the starting point of the circuit.

Built for the ASTELLA H-type track family (applicable models: AST-TRK), this live end connector is rated 120V, 60Hz, 20A, which is plenty of headroom for a full run of LED track heads on a standard residential or commercial branch circuit. It is a Class I, IP20 device for dry indoor use, designed for a 1-circuit (P + N + PE) track, so line, neutral and ground are all carried through and the polarity of the run stays intact. Wiring is straightforward: cut and strip the supply wires to 3/8", land them on the screw terminals inside the connector — no need to wrap the wire around the screw — then slide the connector into the open end of the track with the set screws loosened, align the polarity line and tighten. The black finish matches black AST track sections and heads so the feed disappears into the run instead of standing out.

This is the connector to order whenever you build with black ASTELLA H-type track: kitchens, lofts, basements and stairwells at home, and boutiques, cafés, salons, galleries, showrooms and small offices on the commercial side. It works with the AST Track 2 ft H type 1 circuit black, AST Track 4 ft H type 1 circuit black and AST Track 6 ft H type 1 circuit black rails, and equally well with the white sections such as the AST Track 8 ft H type 1 circuit white if your run mixes finishes. One live end per powered run, then add your track heads — add it to your order and wire your project up right the first time.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-BK, AST-TRK-H-04-BK, AST-TRK-H-06-BK, AST-TRK-H-08-BK, AST-TRK-H-12-BK

16.97$

Supplier availability: In stock (+500)

Learn more
Documentation

What it is and how it is built

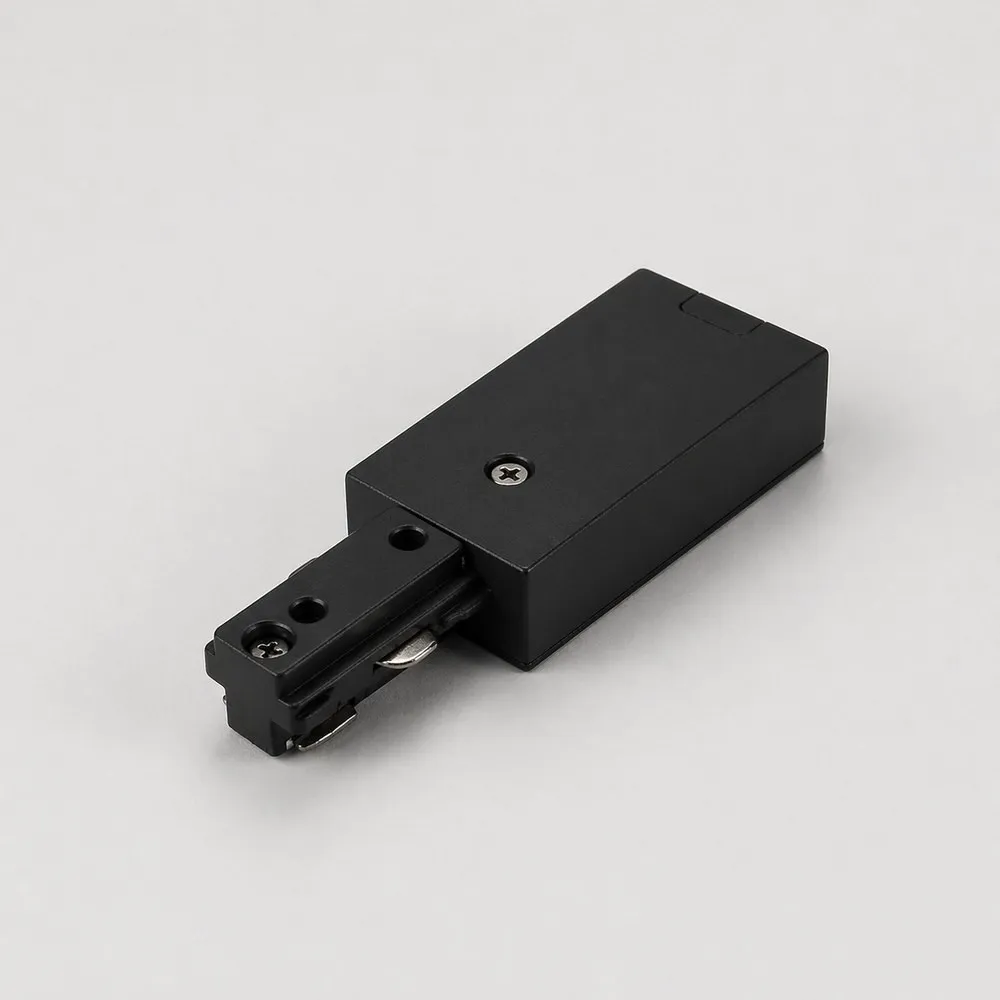

The AST-TRK-H-LEC-BK is a live end connector — the energized feed — for the TUROLIGHT ASTELLA track system in H-type, single circuit configuration. It slips into the open end of a track section and becomes the electrical entry point of the run. Inside the housing are screw terminals for line, neutral and ground; outside, set screws lock the connector mechanically to the rail so the copper contacts stay firmly engaged. The black finish is chosen to blend with black AST track, giving a continuous, uninterrupted line across a ceiling instead of a visible junction.

Electrical and installation details
Rated 120V, 60Hz, 20A, this feed serves a 1-circuit (P + N + PE) track, which means a single switched circuit powers every head on the run while ground is carried the full length. It is a Class I, IP20 component for dry, indoor locations. Installation follows the printed instructions: shut off power at the main panel or fuse box before touching the track or accessories; position the track over the outlet box and mark the mounting holes; on drywall or plaster drill 5/8" holes and use the supplied toggle bolts, or standard #10 wood screws (not supplied) on wood surfaces, with the smooth underside of the track facing the ceiling or wall. Then cut and strip the box wires to 3/8", secure them under the screw terminals, loosen the set screws, slide the connector into the open end of the rail respecting the polarity line, tighten, install your lampholders, and only then turn the power back on. Local installation requirements must be respected.

Polarity, grounding and safety
On H-type track the ground tabs of the connectors must be prepared before sliding onto the non-ground conductor tab of the section you are joining — select and cut the correct tab before insertion (copper on one side versus copper on both sides tells you which). If the wrong tab has been removed, the connector must not be used, because grounding will no longer be maintained. To reduce the risk of fire, once all rails and connectors are installed, make sure a dead-end fitting is slid into every open end of the track and that all set screws are tightened before energizing. Only use fixture assemblies marked for use with this track. To reduce the risk of fire and electric shock, use only fixture assemblies marked for use with TUROLIGHT track.

Technical specifications
SKU: AST-TRK-H-LEC-BK
Brand: TUROLIGHT
Type: live end connector (power feed)
Track system: ASTELLA, H-type, single circuit
Applicable models: AST-TRK
Voltage: 120V, 60Hz
Current rating: 20A
Circuit: 1 circuit (P + N + PE)
Class: Class I
Ingress protection: IP20
Wire strip length: 3/8"
Finish: black

Applications, compatibility and documentation
Use it anywhere you build a track lighting run: a 4 ft rail of adjustable heads over a kitchen island, a retail perimeter washing merchandise, a café counter, a hair salon mirror wall, a gallery hanging, a home office or a finished basement. Because the AST sections come in several lengths, one live end connector powers whichever layout you assemble — pair it with the AST Track 2 ft black, AST Track 4 ft black or AST Track 6 ft black, or with white sections like the AST Track 12 ft white for longer commercial runs. Other ASTELLA H-type accessories in the same family cover the rest of the layout, including end caps and straight, L, T, X and flexible joiners. The installation instructions and full details are in the technical PDF available in the Documentation tab of this page — worth a read before your electrician starts, so the polarity tabs are prepared correctly the first time.
