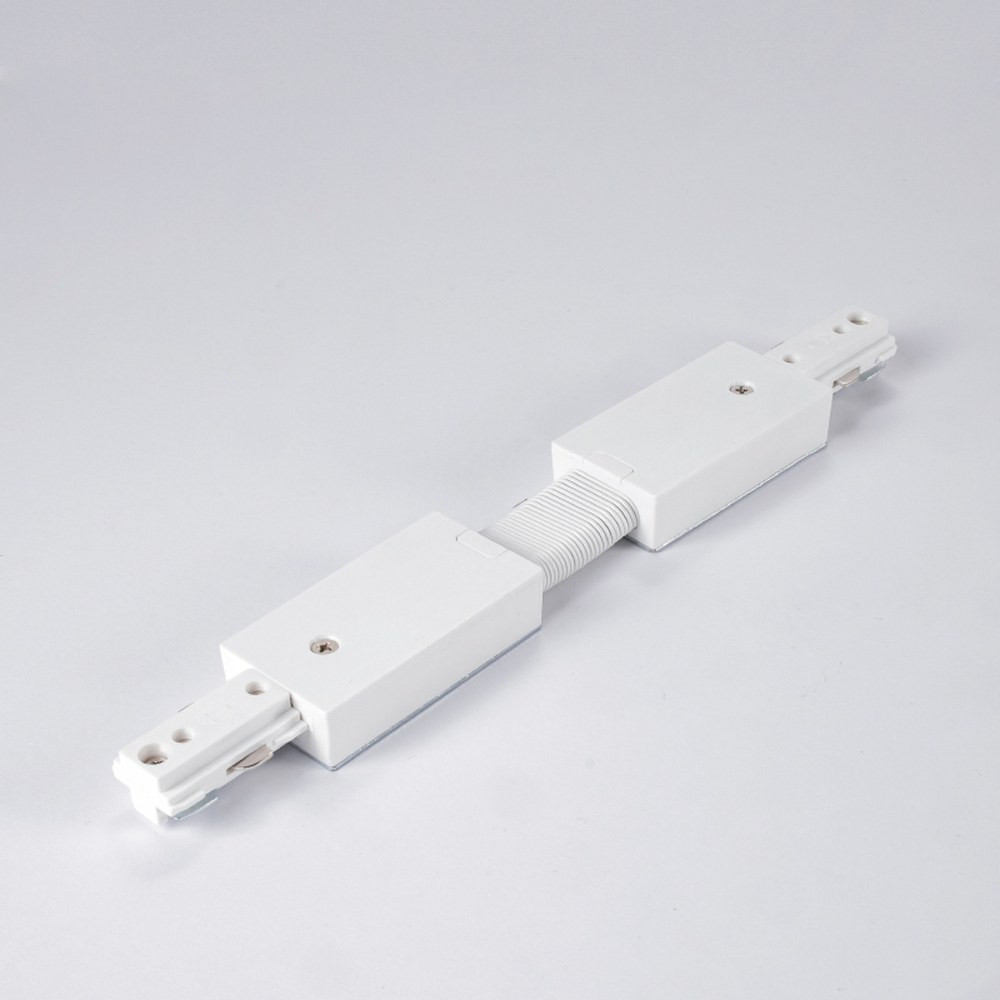

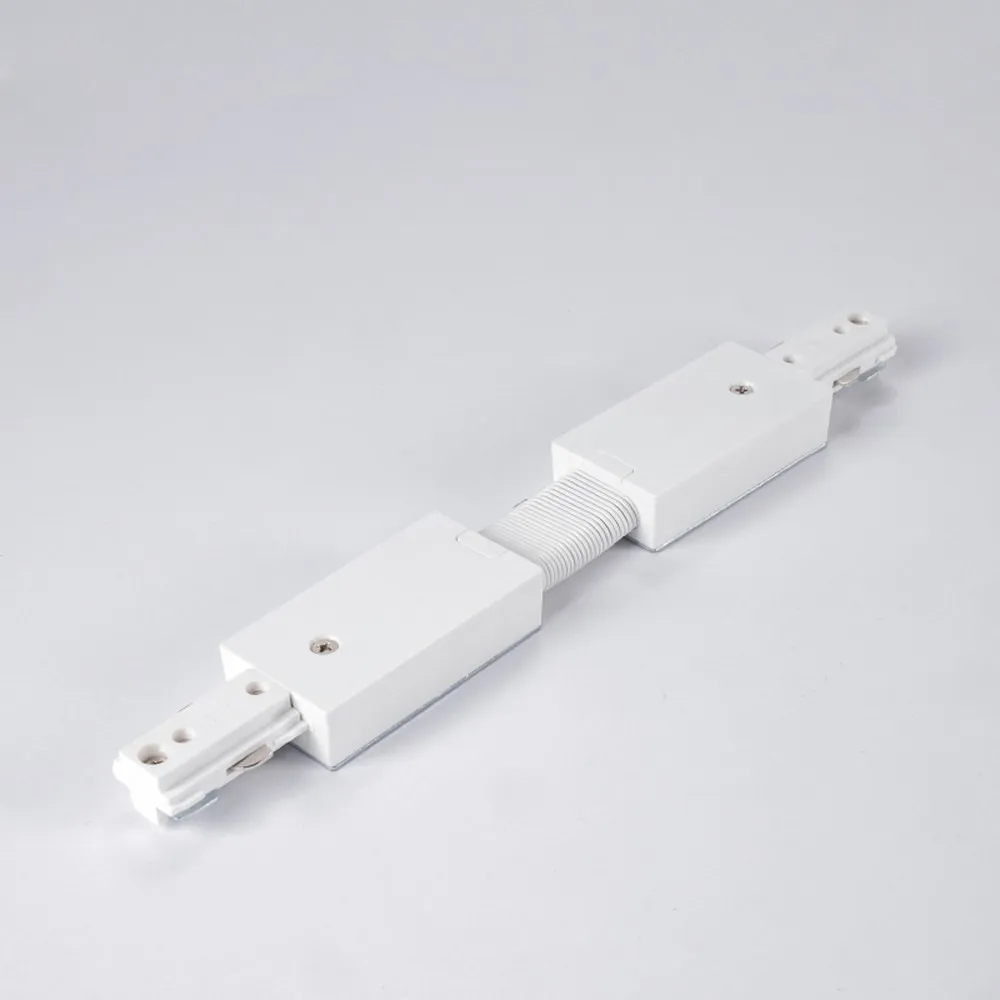

AST TRACK - FLEXIBLE CONNECTOR - H TYPE - 1 CIRCUIT - WHITE

Name: AST TRACK - FLEXIBLE CONNECTOR - H TYPE - 1 CIRCUIT - WHITE
Brand: TUROLIGHT
SKU: AST-TRK-H-FC-WH
Price: 53.97 CAD
Availability: InStock

SKU: AST-TRK-H-FC-WH

Brand: TUROLIGHT

Need to turn a corner that isn't a clean 90 degrees? The AST TRACK flexible connector from TUROLIGHT (SKU AST-TRK-H-FC-WH) is the little piece that makes a track lighting layout follow the room instead of fighting it. Also called a flexible track connector, flex joiner, bendable track coupler or simply an H type track connector, it links two sections of ASTELLA single-circuit track at the angle your ceiling actually needs — around a bulkhead, along a slanted wall, over a curved island or down a hallway that jogs. If you've been searching for flexible metal connectors or an l shape connector for a track rail, this is the accessory that does the job on an H-type system.

This connector belongs to the ASTELLA Track System, H-type, single circuit platform, rated 120V, 60HZ, 20A, Class I, IP20 for dry indoor use, on a 1-way (P + N + PE) track lighting system. It's finished in white to disappear into white ceilings and white track runs. Like every connector in the family, it carries set screws: you loosen them, slide the connector into the open end of the track, respect the polarity line, and tighten before energizing. The grounding tabs must be prepared correctly before sliding onto the NON-GROUND conductor side of the section you're joining — that's how circuit polarity and grounding stay intact from one run to the next. To reduce the risk of fire and electric shock, only fixture assemblies marked for use with TUROLIGHT track should be installed on the system.

It's a natural fit for retail displays, boutiques, galleries, cafés, salons, offices, showrooms, and for home projects like kitchens, living rooms, basements and loft spaces where track heads need to follow an odd angle. It works with the H-type single-circuit ASTELLA rails: AST Track 2 ft H type white, AST Track 4 ft H type white, AST Track 6 ft H type white and AST Track 12 ft H type white. Plan your run, add the flexible connector where the ceiling bends, and keep your lighting looking intentional.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-WH, AST-TRK-H-04-WH, AST-TRK-H-06-WH, AST-TRK-H-08-WH, AST-TRK-H-12-WH

53.97$

Supplier availability: In stock (+100)

Learn more
Documentation

Built for the ASTELLA H-type system
The AST-TRK-H-FC-WH is a flexible connector designed specifically for the ASTELLA Track System in its H-type, single-circuit configuration. Unlike a rigid L or T joiner, a flex connector lets you set the angle between two track sections, so a run can wrap a bulkhead, follow a non-square wall, or continue across a stepped ceiling without cutting the design short. Its white finish is chosen to match white ASTELLA track and blend into painted drywall or plaster ceilings, keeping the eye on the track light heads rather than on the hardware between them.

Technical specifications
SKU: AST-TRK-H-FC-WH
Brand: TUROLIGHT
System: ASTELLA Track System, H-type, single circuit
Voltage: 120V, 60HZ
Current rating: 20A
Track configuration: 1-way (P + N + PE)
Class: Class I
Ingress protection: IP20
Finish: White
Applicable models: AST-TRK

Electrical and installation details
Always shut off power at the main panel before installing track or accessories. Before sliding the connector in, loosen the set screws — this applies to all connector types in the family. Select the proper grounding tab: to maintain circuit polarity, the ground tabs on connectors must be prepared before sliding onto the NON-GROUND conductor side of the track section you are joining, and if the wrong tab has been removed, the connector must not be used because grounding will no longer be maintained. Slide the connector squarely into the open end of the rail, keep the polarity lines aligned, and tighten the set screws. Once all rails and connectors are in place, make sure dead-end fittings are slid into ALL open ends of the track and the set screws tightened before turning the power back on. With IP20 protection, this is an indoor, dry-location accessory — not for exterior or wet areas.

Compatibility and system planning
This connector joins H-type single-circuit ASTELLA rails and is part of the same accessory family as the live end, end, dead-end, L, T, X and mini-joiner fittings listed for the system (AST-TRK-H-LEC, AST-TRK-H-EC, AST-TRK-H-XC, AST-TRK-H-LC, AST-TRK-H-MJ, AST-TRK-H-TC, AST-TRK-H-SC, AST-TRK-H-FC). Pair it with AST Track 4 ft H type 1 circuit white or AST Track 8 ft H type 1 circuit white for longer runs, or with AST Track 2 ft H type 1 circuit black and AST Track 6 ft H type 1 circuit black when your project uses the black version of the rail. For safety, only fixture assemblies marked for use with TUROLIGHT track should be mounted on the system, and all local installation requirements must be respected.

Where it earns its keep, and documentation
Think of a boutique where the track lighting follows the perimeter and turns at an obtuse corner, a gallery wall that meets a sloped ceiling, a restaurant bar that bends, or a renovated basement where the beam layout is anything but square — that's where a flexible connector saves a redesign. Contractors like it because it absorbs the small angle errors that older Canadian homes and mid-century commercial spaces are full of. To mount the rail itself, holes are drilled in the ceiling or wall: on drywall or plaster, 5/8 mounting holes are drilled and toggle bolts (supplied) are used; on wood surfaces, standard #10 wood screws (not supplied) are used. Lampholders install by aligning the polarity lines, pushing the top of the mounting adapter with the contact tabs into the track slot and turning 90°; to remove, press the release lever and turn 90°. The full spec sheet and installation instructions (AST-TRK-H-FC-WH Spec Sheet) are available in the Documentation tab.
