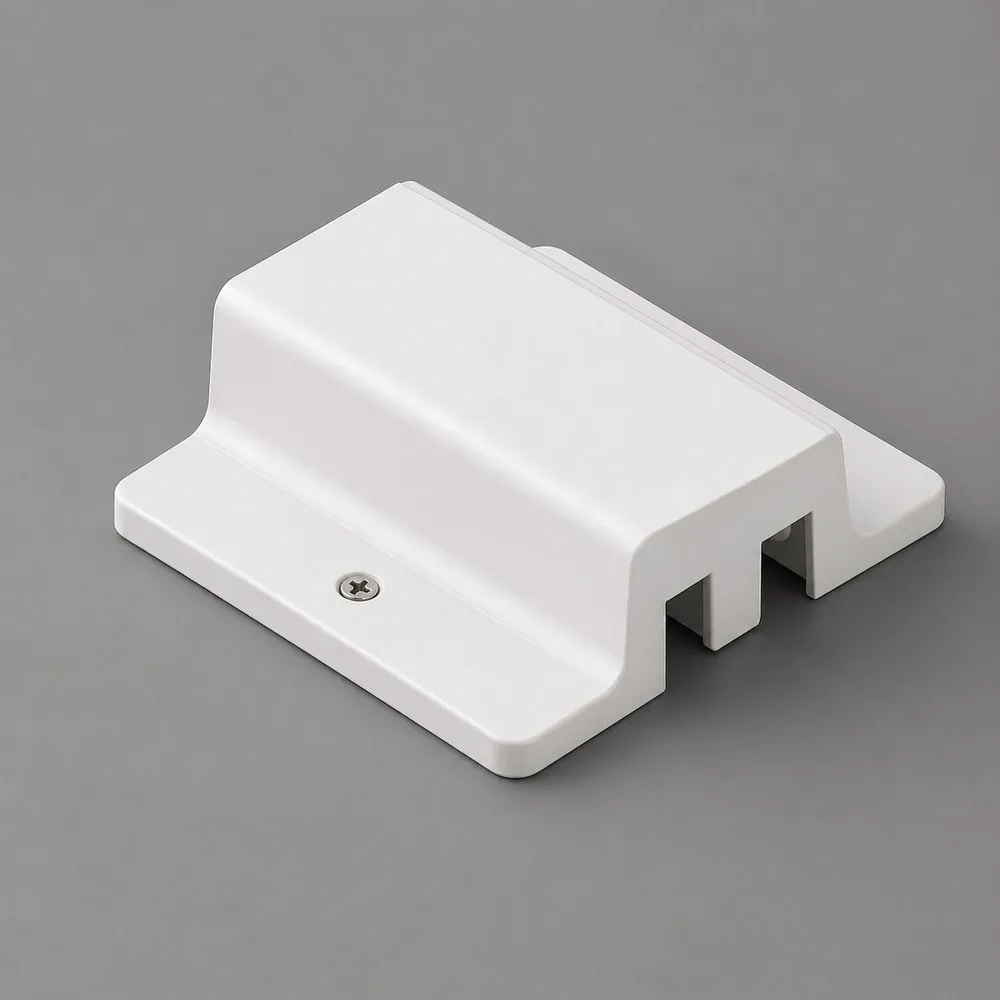

AST TRACK - FLOATING CANOPY - H TYPE - 1 CIRCUIT - WHITE

Name: AST TRACK - FLOATING CANOPY - H TYPE - 1 CIRCUIT - WHITE
Brand: TUROLIGHT
SKU: AST-TRK-H-FCNP-WH
Price: 41.97 CAD
Availability: InStock

SKU: AST-TRK-H-FCNP-WH

Brand: TUROLIGHT

Every track lighting run needs one clean, safe connection to the ceiling box — and that is exactly what this piece does. The AST TRACK - FLOATING CANOPY - H TYPE - 1 CIRCUIT - WHITE (SKU AST-TRK-H-FCNP-WH) is the floating canopy feed for the TUROLIGHT ASTELLA track system: the part people also call a track lighting canopy, a canopy feed kit, a track power feed or simply the ceiling plate that hides the junction box. It mounts over your outlet box, brings 120V power into the rail and keeps the wiring covered, so your track lighting heads can be placed anywhere along the run without a cord or a visible splice.

Built for the H-type, single circuit ASTELLA track platform, this canopy works on a 120V, 60Hz, 20A one-way circuit (P + N + PE), rated Class I, IP20 for indoor, dry interior use. The white finish blends into white ceilings and matches the white ASTELLA rails so the whole assembly reads as one continuous line. Installation follows the ASTELLA instructions: cut and strip the box wires, land them on the screw terminals of the connector, respect the polarity line, then slide the connector into the open end of the track and tighten the set screws. Because it is a floating canopy, you are not locked into centering the rail on the electrical box — you feed the track where the power is and let the rail land where the light is needed.

This is the piece that makes a track project look finished in a condo kitchen, a Montréal loft, a retail boutique, an art gallery, a hair salon, an office or a small showroom — anywhere a single-circuit rail replaces a tired ceiling fixture. It is designed to work with the H-type ASTELLA tracks such as the AST Track 4 ft H type 1 circuit white, the AST Track 2 ft H type 1 circuit white, the AST Track 6 ft H type 1 circuit white and the AST Track 8 ft H type 1 circuit white. Add it to your track order and wire your run the right way, the first time.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-WH, AST-TRK-H-04-WH, AST-TRK-H-06-WH, AST-TRK-H-08-WH, AST-TRK-H-12-WH

41.97$

Supplier availability: In stock (+10)

Learn more
Documentation

What this canopy actually does
A track rail has to get its power from somewhere, and on the ASTELLA system that job belongs to the floating canopy. AST-TRK-H-FCNP-WH covers the ceiling outlet box, holds the line connection and feeds the H-type single circuit track so every head you clip on afterwards is live. The word "floating" matters: the canopy is not fixed to the middle or to one fixed point of the rail, so the electrician can bring power to the track at the position that suits the room and the existing box, instead of moving the box or living with an off-centre run.

Technical specifications
SKU: AST-TRK-H-FCNP-WH
Brand: TUROLIGHT
System: ASTELLA Track System
Track type: H-type, single circuit
Circuit: 1 way (P + N + PE)
Voltage: 120V, 60Hz, 20A
Class: Class I
Ingress protection: IP20
Finish: White
Applicable models: AST-TRK

Wiring and installation
Always shut the power off at the panel before installing the track or any accessory, and follow local installation requirements — in Canada that means the work has to respect the electrical code in force in your province. To mount the rail, drill the fixing holes in the ceiling or the wall with the plain underside of the track facing the surface; on drywall or plaster, drill 5/8 fixing holes and secure with the toggle bolts supplied, and on wood surfaces use standard #10 wood screws (not supplied). For the feed, strip the wires 3/8" and land them on the screw terminals of the connector — no need to wrap the wire around the screw. Loosen the set screws on the connector before sliding it into the open end of the track, and keep the polarity line of the connector aligned with the polarity line of the rail so the circuit and the ground tab stay correct. Once everything is in place, tighten the set screws, slide a dead end into every open end of the rail, then turn the main power back on.

Compatibility and heads
This canopy belongs to the ASTELLA H-type single-circuit family and is meant to be paired with the matching rails: AST Track 2 ft H type white, AST Track 4 ft H type white, AST Track 6 ft H type white, AST Track 8 ft H type white and AST Track 12 ft H type white for longer runs. Black rails are available in the same H-type single-circuit format when the design calls for contrast. Very important safety note from the instructions: to reduce the risk of fire and electric shock, use only fixture assemblies marked for use with TUROLIGHT track. To install a lampholder, align the polarity lines of the rail and of the head, push the top of the mounting adapter (with the contact tabs) into the track slot and turn it 90°; if the adapter does not turn easily, do not force it — turn the other way. To remove a head, press the release lever with your index finger and turn 90°.

Where it earns its place
Single-circuit track lighting is the fastest way to light a space that keeps changing: a retail wall where the merchandising moves every season, a gallery where the artwork rotates, a kitchen island in a renovated bungalow, a basement office, a salon station or a café counter. One canopy, one rail, then as many heads as the run allows — and the layout can be redone in minutes without touching the ceiling again. The complete installation instructions for the ASTELLA H-type single-circuit system, in English and in French, are available as a technical PDF in the Documentation tab of this page; print it and keep it with the job file for the inspector and for the next person who works on that ceiling.
