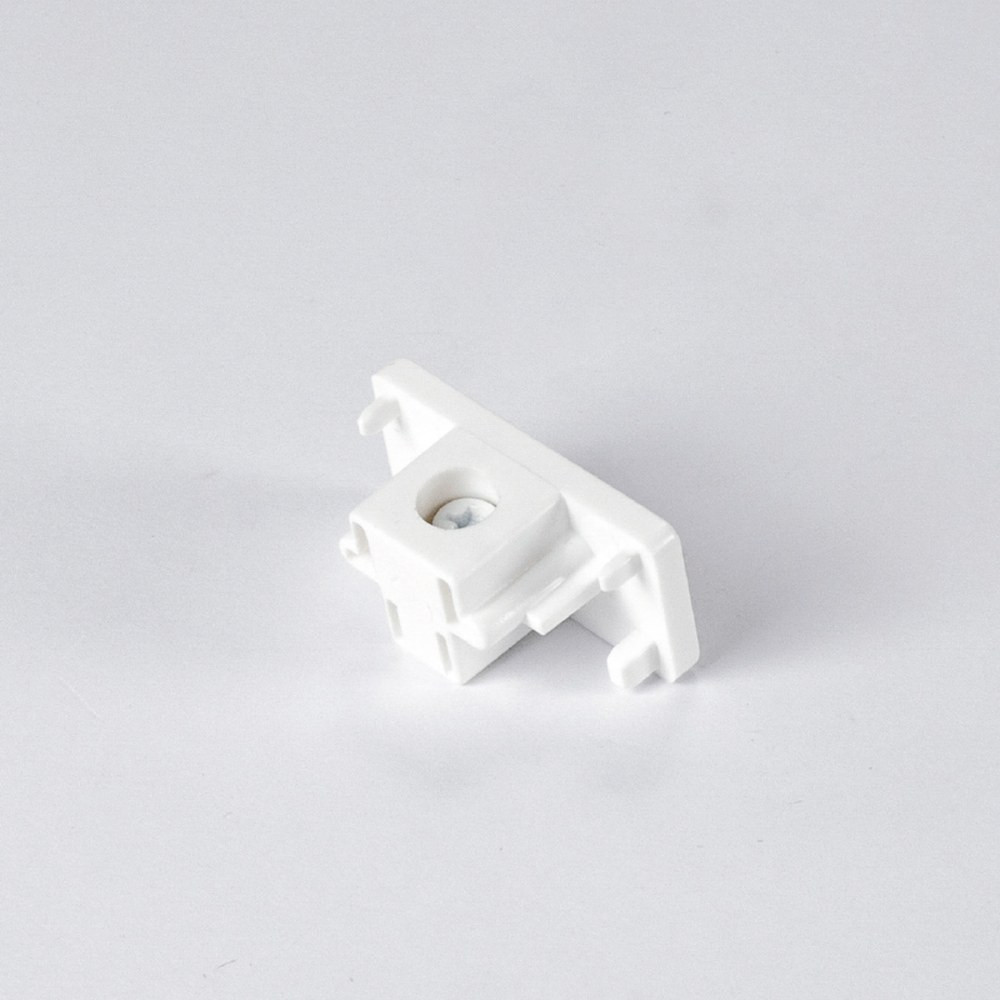

AST TRACK - END CAP - H TYPE - 1 CIRCUIT - WHITE

Name: AST TRACK - END CAP - H TYPE - 1 CIRCUIT - WHITE
Brand: TUROLIGHT
SKU: AST-TRK-H-EC-WH
Price: 5.97 CAD
Availability: InStock

SKU: AST-TRK-H-EC-WH

Brand: TUROLIGHT

Every track lighting run needs a clean, safe finish — and that is exactly the job of this track end cap. Also called a dead-end cap, end feed cap or simply a track lighting end cap, the AST-TRK-H-EC-WH from TUROLIGHT closes off the open end of an ASTELLA H-type single circuit track so no live copper conductor stays exposed. It snaps onto the cut or open end of your track rail, keeps dust and fingers out of the channel, and gives the whole installation that finished, made-to-measure look people expect from a professional rail d'éclairage job. Anyone searching for logistic track end caps, track lighting heads or track accessories to complete a system will want one of these at every open end of the run.

Built for the TUROLIGHT ASTELLA H-type track system, this end cap works on the single circuit 1-way track (P + N + PE) rated 120V, 60Hz, 20A, and carries the system's Class I, IP20 designation for dry indoor use. The white finish matches the white ASTELLA track sections so the cap disappears into the line of the rail instead of drawing the eye. Installation follows the manufacturer's instructions: cut power at the panel first, loosen the set screws before sliding the connector into the open end of the track, then tighten the set screws before energizing the circuit. The instruction sheet is clear on the safety logic — after all track sections and connectors are installed, make sure a dead-end cap is slid into ALL open ends of the track and the set screws are tightened before power is restored. Use only fixture assemblies marked for use with TUROLIGHT track.

This little part earns its keep in kitchens, hallways, basements and living rooms, and just as much in boutiques, galleries, cafés, salons, offices and showrooms across Canada, wherever track lighting replaces fixed pot lights. It is designed for the ASTELLA H-type 1-circuit rails, including the AST Track 2 ft H type white, AST Track 4 ft H type white, AST Track 6 ft H type white, AST Track 8 ft H type white and AST Track 12 ft H type white. Count your open ends, add the caps to your order and finish the job right the first time.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-WH, AST-TRK-H-04-WH, AST-TRK-H-06-WH, AST-TRK-H-08-WH, AST-TRK-H-12-WH

5.97$

Supplier availability: In stock (+100)

Learn more
Documentation

What this accessory does
The AST-TRK-H-EC-WH is the dead-end cap for the TUROLIGHT ASTELLA H-type single circuit track system. A track rail is an open extruded channel with copper conductors inside; wherever the run stops, that channel stays open. The end cap closes it. It blocks access to the conductors, keeps the inside of the rail free of dust and debris, and squares off the profile so the run reads as one deliberate line on the ceiling or wall. In white, it blends with white ASTELLA rails so your track lighting looks factory-finished rather than improvised.

Technical specifications
SKU: AST-TRK-H-EC-WH
Brand: TUROLIGHT
System: ASTELLA Track System, H-type, single circuit
Track type: 1-way (P + N + PE)
Electrical: 120V, 60Hz, 20A
Class / ingress: Class I, IP20
Colour: White
Applicable models: AST-TRK

Installation and electrical detail
Work safe and work in order. Shut off the breaker at the main panel before installing any track or accessory — the instructions are explicit about cutting power first. Before sliding any connector into the open end of the rail, loosen the set screws on the connector; forcing a tight connector into the channel is how conductors get damaged. Slide the cap into the open end of the track, then tighten the set screws. Polarity matters on this system: the polarity line on the rail and on the lampholder must be aligned, and on powered connectors the ground tabs have to be prepared before sliding onto the non-ground conductor side of the section you are joining — if the wrong tab has been removed, that connector must not be used because grounding will not be maintained. Local installation requirements must be respected, and to reduce the risk of fire and electric shock, only fixture assemblies marked for use with TUROLIGHT track should go on the rail.

Compatibility across the ASTELLA family
This cap belongs to a full accessory set for the H-type single circuit system, which also includes live end feeds, straight, L, T, X and flexible connectors and mounting joints (AST-TRK-H-LEC, AST-TRK-H-SC, AST-TRK-H-LC, AST-TRK-H-TC, AST-TRK-H-XC, AST-TRK-H-FC, AST-TRK-H-MJ). It fits the white H-type rails — the AST Track 4 ft H type white and AST Track 8 ft H type white being the most common lengths — and the same H-type profile is offered in black, such as the AST Track 2 ft H type black and AST Track 6 ft H type black, if you prefer a contrasting cap. Track heads must be H-type, single circuit, 120V.

Where it gets used, and documentation
Concrete examples: a 12 ft run down a retail wall needs a cap at each end; an L-shaped run over a kitchen island and sink uses an L connector at the corner and two caps at the extremities; a rail cut on site to fit between two beams in a basement renovation absolutely needs a cap on the freshly cut end. Contractors doing boutique, gallery, café and office fit-outs usually keep a handful in the van, since a missing cap can hold up an inspection. The spec sheet and installation instructions for AST-TRK are available in the Documentation tab of this page, in English and in French — download them before you start, and keep them with the job file.
