AST TRACK - MINI JOINER - H TYPE - 1 CIRCUIT - WHITE

Name: AST TRACK - MINI JOINER - H TYPE - 1 CIRCUIT - WHITE
Brand: TUROLIGHT
SKU: AST-TRK-H-MJ-WH
Price: 10.97 CAD
Availability: InStock

SKU: AST-TRK-H-MJ-WH

Brand: TUROLIGHT

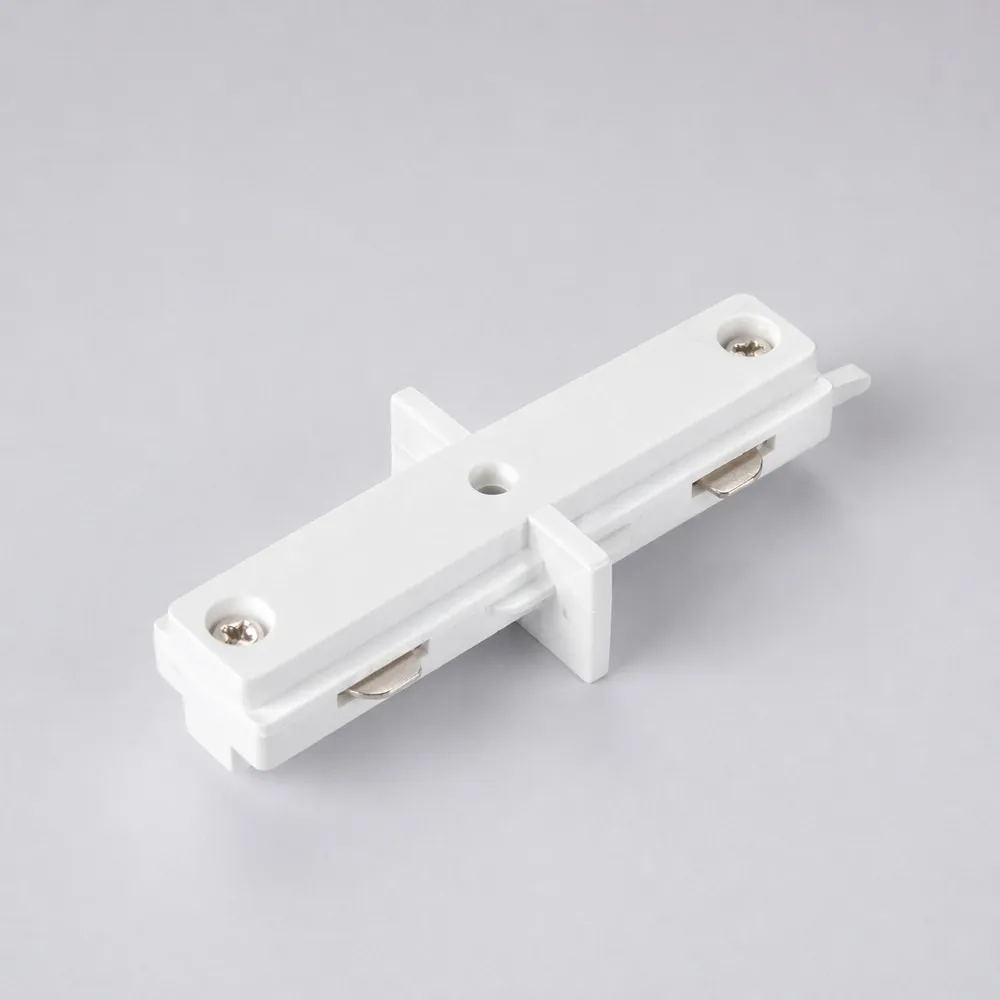

Two lengths of track, one clean line of light — that's exactly what the AST TRACK Mini Joiner does. This is the low-profile H-type track connector from the Turolight Astella (AST) system, the little piece people search for as a track joiner, track coupler, straight-line track connector or simply the "piece that joins two track rails together". It slips between two sections of Astella 1-circuit track rail and carries both the mechanical joint and the electrical continuity, so your run keeps going without a visible break, a bulky box or a gap in the ceiling line. If you're planning a long continuous run of track lighting over a kitchen island, a retail wall or a gallery corridor, this is the connector that makes it look like one single extrusion.

Built for the Astella framework, the Mini Joiner works with the H-type single circuit, 20A, 120V, 60Hz platform and matches the track's seamless low-profile size of 1 3/8" W × 11/16" H, so nothing sticks out or interrupts the shadow line. Its compact body measures 79.3 mm, keeping the junction as discreet as possible. Inside the system, 12-gauge flat copper conductor wiring keeps conductivity consistent across any run length, which means even brightness from the first head to the last — no dimming toward the end of the line, no flicker. The track itself is a 6063 aluminum extrusion with a consistent 1/32" wall thickness, and the high-performance PC housing is fire-safe, heat-stable, halogen-free and resists yellowing or embrittlement. The assembly is UL certified and backed by a 5 years warranty, in a white finish that blends into painted ceilings.

SKU AST-TRK-H-MJ-WH belongs on residential and commercial projects alike: open-concept condos and renovated basements, boutiques, cafés, showrooms, salons, offices and small galleries across Canada, wherever a single track length isn't long enough. It joins Astella H-type single-circuit sections end to end — pair it with the AST Track 4 ft H type white, the AST Track 6 ft H type white, the AST Track 8 ft H type white or the AST Track 12 ft H type white to build the exact length your room needs. Add one to your order and keep your track rail run looking seamless from end to end.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-WH, AST-TRK-H-04-WH, AST-TRK-H-06-WH, AST-TRK-H-08-WH, AST-TRK-H-12-WH

10.97$

Supplier availability: In stock (+100)

Learn more
Documentation

What the Mini Joiner actually does
The Mini Joiner is the straight, in-line connector of the Turolight Astella Track System. Where a standard straight connector adds a visible link between two rails, the mini version keeps the junction as short and as discreet as possible — a compact 79.3 mm body that mechanically locks two track sections together while transferring power from one to the next. That gives you one continuous H-type track circuit fed from a single live end, instead of several independent runs each needing their own feed. For designers and contractors, it's the simplest way to hit a length that no single rail delivers on its own.

Construction and materials
The Astella framework is built around a 6063 aluminum alloy extrusion with a consistent 1/32" wall thickness, which gives superior dimensional precision and strength — rails stay straight, and connectors seat tightly with no play at the joint. The electrical path uses 12-gauge flat copper conductor wiring, chosen so conductivity stays consistent across any run length; that's what keeps brightness even across the whole layout without dimming or flickering at the far end. The high-performance PC housing holds its geometry for life through years of thermal cycling: fire-safe, heat-stable, halogen-free, with no yellowing or embrittlement over time. Full-length tracks ship in paper tube packaging that protects them from bending, warping and scratching during transport and storage.

Technical specifications
SKU: AST-TRK-H-MJ-WH
Brand: Turolight
Type: Mini Joiner, Astella Track System accessory
System: H-type, single circuit
Electrical: 20A, 120V, 60Hz
Connector length: 79.3 mm
Track profile: 1 3/8" W × 11/16" H
Track extrusion: 6063 aluminum, 1/32" wall thickness
Conductors: 12-gauge flat copper wire
Finish: White
Certification: UL certified
Warranty: 5 years

Installation and compatibility
Plan the layout first: measure the wall or ceiling line, then combine Astella rail lengths — 4 ft (1219 mm), 6 ft (1829 mm), 8 ft (2438 mm) and 12 ft, with 2 ft made to order — and place a Mini Joiner at each straight junction. Power comes in through the live end connector, and the rest of the run is fed through the joiners. As always, cut power at the panel before working on a live circuit, and have the final connection made by a licensed electrician in accordance with the Canadian Electrical Code and your municipal requirements. Important: this accessory is designed for Astella H-type single-circuit track only — it is not a universal joiner, so keep the whole run within the AST family. The white finish matches the white rails and white accessories of the same series; black components exist for darker ceilings.

Where it earns its keep — and documentation
Think of a boutique in Montréal lighting a full merchandising wall, a Toronto condo where the island calls for a longer straight line than one rail can cover, a café counter, a hair salon, a photo studio, an office reception or a home gallery hallway. In all of these, the Mini Joiner lets you build exactly the length you need and keep the ceiling line clean. Choose your rails from the AST Track 2 ft H type white, AST Track 4 ft H type white, AST Track 6 ft H type white and AST Track 8 ft H type white. The full spec sheet — including the ordering guide, the accessory dimensions and the track profile drawings — is available in the Documentation tab of this page.
