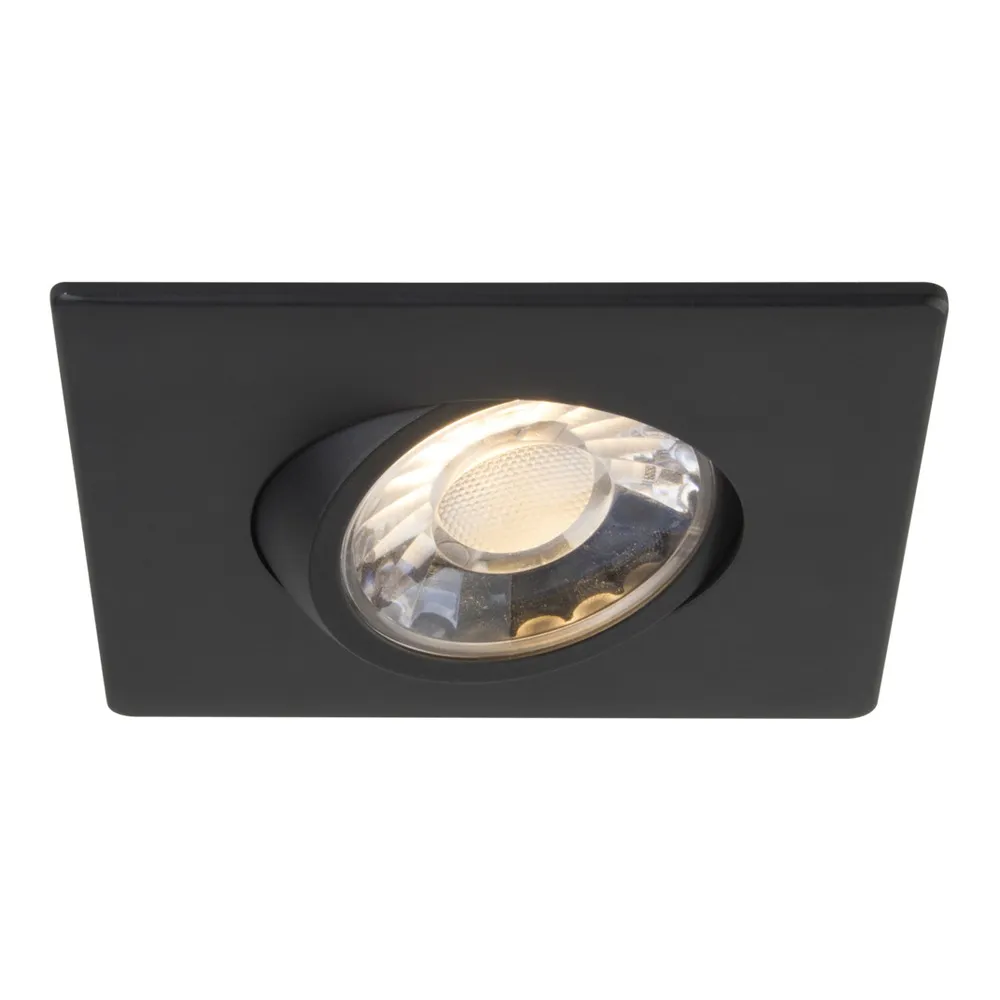

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-30K-90BK

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-30K-90BK
Brand: LITELINE
SKU: RA3S-7G-30K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-30K-90BK

Brand: LITELINE

Small aperture, big impact: the 3" LUNA LED square gimbal recessed fixture from LITELINE (SKU RA3S-7G-30K-90BK) is the little downlight that finally lets you aim your light exactly where you want it. People search for it as a square downlight, a square pot light, a 3 inch recessed LED gimbal or simply an adjustable recessed light — it is all of those in one tidy black trim. The gimbal head tilts inside the square frame, so the same fixture can wash a stone fireplace, graze a brick accent wall, highlight artwork, or drop clean task light over a kitchen island. With a compact profile and a small cut hole, it slips into tight ceilings where a bigger 4" or 6" pot light simply will not go, in both residential renovations and commercial fit-outs.

Under the hood there is a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a warm 3000 K colour temperature and a typical CRI of 90 that makes wood, paint, skin tones and merchandise look the way they should. The lens produces a 45° beam spread, tight enough to feel intentional and wide enough to cover a room in an even layout. The airtight aluminum body carries an anodized blue heat sink for maximum airflow around the LED, and the 170 mA class II electronic driver runs on 100-135 V AC, 50/60 Hz, with a 0.95 power factor. It is dimmable with standard TRIAC/ELV dimmers, cETLus certified, LM79 and LM80 tested, rated for wet locations and approved for direct contact with insulation, with a projected life of 70% at 33,000 hours and a lifetime warranty.

This trim earns its place in kitchens, hallways, bedrooms, closets, bathrooms and covered porches, and just as easily in boutiques, cafés, clinics and offices where a crisp black square trim disappears into a dark ceiling. Built for Canadian jobs, it handles operating temperatures from -40 °C to +40 °C and its insulated-ceiling approval suits our well-insulated attics. Two spring-loaded clips grip almost any ceiling material, and three quick-connect push-in terminals make wiring fast. Mix finishes and temperatures across a project with the 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90WH or the 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90BN, or go warmer on dimming with the 3" Luna dim-to-warm square gimbal RA3S-7G-DTW-90BK. Plan your layout and order your black Luna gimbals today.

Construction and design
The LUNA 3" square gimbal is built around a durable airtight aluminum body with an adjustable gimbal head, so you can point the light instead of settling for whatever the ceiling gives you. An anodized blue heat sink sits behind the LED source to provide maximum airflow, which is exactly what keeps output and colour stable year after year in a sealed ceiling cavity. The square trim in black gives a sharp, architectural look that reads as deliberate on white drywall and quietly vanishes on dark ceilings, which is why designers keep specifying this square recessed LED over a round aperture in modern interiors.

Light quality
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens, a genuinely useful level for a 3" aperture. A typical CRI of 90 renders colour honestly, so cabinetry, tile, fabric and food look natural rather than washed out, and the fixed 3000 K colour temperature stays in that comfortable warm-white zone most homeowners ask for. The lens delivers a 45° beam spread for controlled pools of light with soft edges, ideal for an even ceiling grid or for accenting a specific surface once the gimbal is tilted.

Technical specifications
Model: RA3S-7G-30K-90BK
Wattage: 7W
Lumens: 745
Efficacy: 96 lumens per watt
CCT: 3000 K
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Driver: 170mA dimmable class II electronic
Dimming: Yes, TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2 3/4" (70mm)
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Operating temperature: -40°C+40°C (-40°F+104°F)
Certification: cETLus, LM79, LM80
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime
Finish: Black

Electrical and installation
Wiring is refreshingly simple: an extruded aluminum hardwire box houses the class II electronic driver and offers three quick-connect push-in terminals for fast connections. An 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, a real advantage in commercial ceilings. Two spring-loaded clips let the trim attach to virtually any ceiling material, and the Ø 2 3/4" (70 mm) hole cut keeps drywall repairs minimal on a retrofit. Because it is wet location rated and approved for direct contact with insulation, it can go under a covered entry, in a shower ceiling or straight into an insulated attic without an extra enclosure. Pair it with any industry standard TRIAC/ELV dimmer for smooth control.

Applications, compatibility and documentation
Think kitchen perimeters and islands, hallways, walk-in closets, stairwells, bathrooms, covered porches, and on the commercial side retail displays, reception desks, restaurant booths and clinic corridors. Accessories such as vapour barrier extenders, a new construction mounting kit and a round pre-mounting plate for 3" LUNA LED fixtures are sold separately, which makes this 3 inch gimbal downlight equally at home in new construction and remodel work. Within the same family you can match finishes and temperatures using the 3" Luna LED square gimbal RA3S-7G-27K-90BK, the 3" Luna LED square gimbal RA3S-7G-35K-90BK, or the dim-to-warm 3" Luna square gimbal RA3S-7G-DTW-90WH in white. The full technical spec sheet is available in the Documentation tab for cut dimensions, driver details and certification references.
