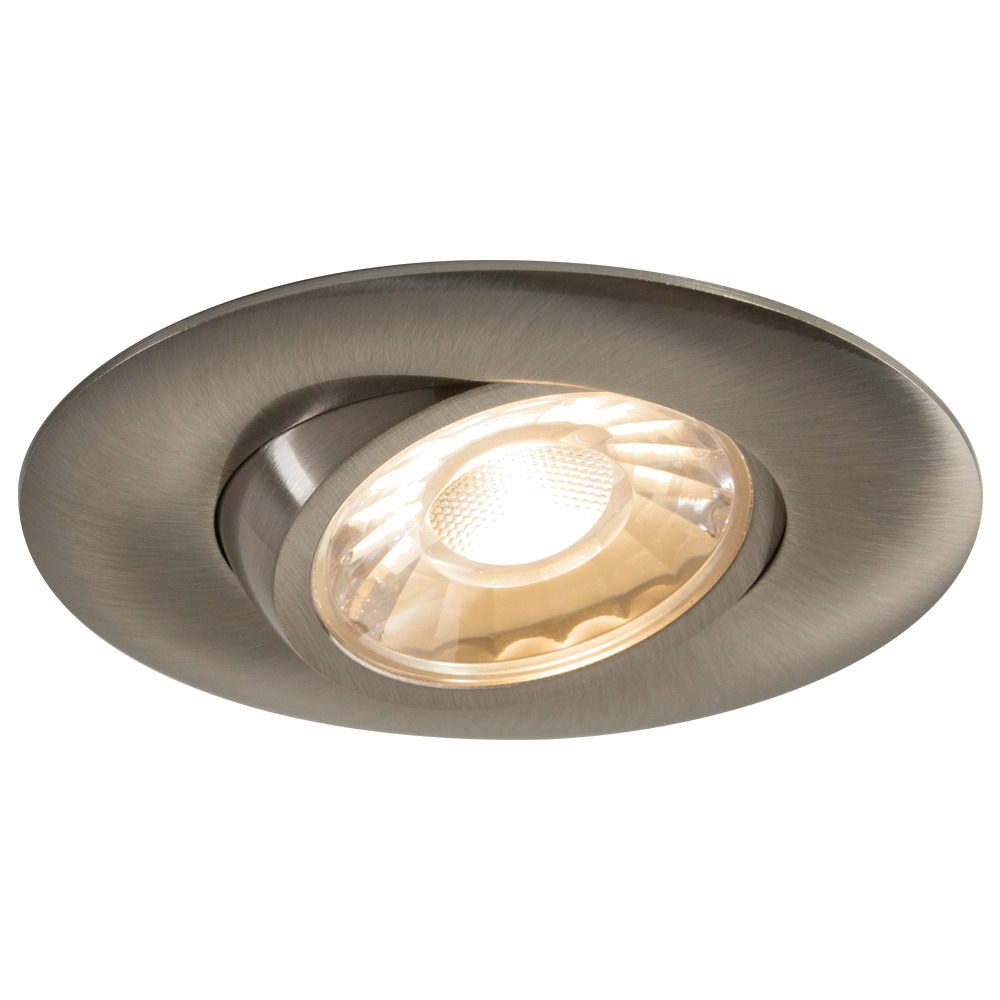

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-DTW-90BN

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-DTW-90BN
Brand: LITELINE
SKU: RA3-7G-DTW-90BN
Price: 79.97 CAD
Availability: InStock

SKU: RA3-7G-DTW-90BN

Brand: LITELINE

Warm, cozy light that dims like a candle — that is the magic of the 3" LUNA gimbal recessed fixture RA3-7G-DTW-90BN from LITELINE. This compact dim-to-warm LED downlight, also known as a 3-inch pot light, adjustable recessed light or gimbal recessed downlight, tilts so you can aim the beam exactly where you want it: on a stone fireplace, a gallery wall, a kitchen island or a sloped ceiling. Finished in Brushed Nickel, it is built for retrofit work, so you can upgrade tired halogen cans or add fresh recessed lighting to a renovation without tearing the ceiling apart.

Inside the durable airtight aluminum body sits a 7 watt LED module delivering up to 745 lumens, or 96 lumens per watt, with an anodized blue heat sink that keeps airflow moving around the light source. The colour temperature dims from 3000 K down to 1800 K, so the room glows warmer as you lower the light, and a typical CRI of 90 keeps skin tones, wood grain and paint colours true. Dimming is handled by a 170mA class II electronic driver with 100-135V AC input, compatible with industry standard TRIAC/ELV dimmers. The lens gives a 45° beam spread, the fixture is cETLus certified, rated for wet locations and approved for direct contact with insulation, with a projected life of 70% at 33,000 hrs and a lifetime warranty. Hole cut is Ø 2 3/4" (70mm), and it operates from -40°C to +40°C (-40°F to +104°F).

Put it over a bathtub or shower, in a covered porch ceiling, along a hallway, above kitchen counters, in a condo living room or in a boutique, clinic or café where soft, flattering light matters. Two spring loaded clips hold it in any ceiling material, and three quick connect push-in terminals make wiring quick on site — a real time saver on Canadian renovation days. Prefer another finish? The same fixture is offered as 3" Luna gimbal recessed fixture RA3-7G-DTW-90BK in black and 3" Luna gimbal recessed fixture RA3-7G-DTW-90WH in white. Order your LUNA gimbal downlights today and give every room a warmer glow.

Built to last, built to fit
The LUNA gimbal starts with a durable airtight aluminum body and an adjustable gimbal that lets you tilt the light source toward artwork, a headboard, a backsplash or a sloped ceiling. An anodized blue heat sink provides maximum airflow around the LED, which is exactly what keeps output and colour stable over the years. The trim is finished in Brushed Nickel, a warm neutral that blends with stainless appliances, nickel faucets and modern hardware. Two spring loaded clips let the fixture attach to any ceiling material, and the required hole cut is Ø 2 3/4" (70mm).

Dim-to-warm light quality
This general application fixture uses a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens with a typical CRI of 90. What sets the DTW version apart is colour temperature dimming from 3000 K down to 1800 K: turn the dimmer down and the light shifts from a clean warm white to a deep candle-like amber, the same behaviour people love from incandescent and halogen sources. The lens delivers a 45° beam spread, wide enough for general recessed downlighting yet controlled enough for accenting when you tilt the gimbal.

Electrical and installation
The extruded aluminum hardwire box holds a 170mA dimmable class II electronic LED driver with 100-135V AC, 50 / 60Hz input and a power factor of 0.95. An 18" FT6 rated cable with a DC 2.1 connector joins the driver to the fixture and is approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make wiring fast, whether you are doing one pot light or forty. The fixture is compatible with industry standard TRIAC/ELV dimmers; check the LITELINE dimmer compatibility list before pairing it with a controller.

Technical specifications
SKU: RA3-7G-DTW-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
CCT: 3000 K~1800 K
Certification: cETLus
Class II: Yes
Colour: Brushed Nickel (BN)
CRI: 90
Dimming: Yes, TRIAC/ELV
Hole Cut: Ø 2 3/4" (70mm)
Input: 100-135V AC, 50 / 60Hz
LM79 / LM80: Yes
Lumens: 745
Lumens per Watt: 96
Operating Temperature: -40°C+40°C (-40°F+104°F)
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 7W

Applications, accessories and documentation
Because it is suitable for wet locations and approved for direct contact with insulation, this gimbal recessed light works over showers and tubs, under covered entries and soffits, in basements with spray-foam ceilings, and throughout condos, offices, salons and restaurants. Accessories are sold separately: the SLM-60-FC 60" flexible connector, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders for new construction and remodel work. Smart control is possible with the LC-CRTL-DIM-1 Wi-Fi dimmer or the LC-CRTL-3WAY-1 3-way switch. Mixing finishes in one project? Match with the white DTW model or the black DTW model, or choose a fixed colour temperature in the same family such as RA3-7G-30K-90BN. The full technical PDF spec sheet is in the Documentation tab for your submittals and permit package.

Technical Files
