3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-50K-90BN

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-50K-90BN
Brand: LITELINE
SKU: RA3-7G-50K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3-7G-50K-90BN

Brand: LITELINE

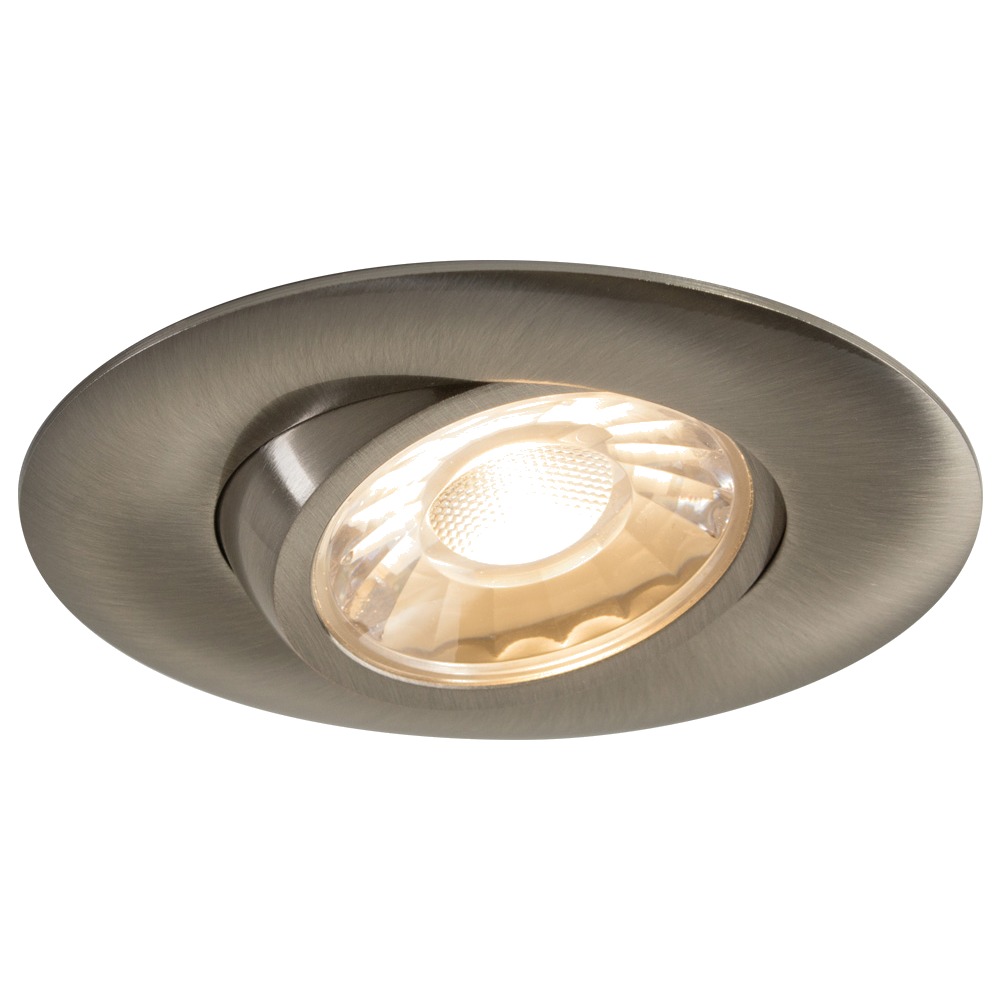

Small aperture, big impact: the 3" LUNA gimbal recessed fixture from LITELINE (SKU RA3-7G-50K-90BN) is the little adjustable downlight that lets you aim light exactly where you want it. People call it a recessed downlight, a 3-inch pot light, a gimbal trim or simply an LED recessed light — whatever you call it, it is a slim, airtight aluminum housing with a tilting gimbal that swivels so you can graze a stone wall, wash a piece of art, or line up a row of clean, even downlights over a kitchen island. It is built for retrofit work as much as new construction, and it suits both residential renovations and commercial fit-outs.

Under the hood, a 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, so you get real usable light from a tiny opening while sipping power. The typical CRI of 90 renders skin tones, wood, paint and fabrics honestly — a big deal in kitchens, bathrooms and retail displays. This is a dim-to-warm fixture: the colour temperature shifts from 3000 K down to 1800 K as you dim, for that cozy candlelight glow at night. Dimming is supported with industry standard TRIAC/ELV dimmers, driven by a 170mA dimmable class II electronic driver with 100-135V AC, 50 / 60Hz input. The lens gives a 45° beam spread, the hole cut is Ø 2 3/4" (70mm), and the 18" (457mm) FT6 rated cable with DC 2.1 connector is approved for use in plenums and suspended ceilings. It is cETLus certified, suitable for wet locations and approved for direct contact with insulation, with a power factor of 0.95, LM79 and LM80 data, a projected life of 70% @ 33,000 hrs and a lifetime warranty. Operating range: -40°C+40°C (-40°F+104°F). Trim finish: brushed nickel.

Put it in kitchens, hallways, bedrooms, ensuites and showers, covered porches and soffits, or in boutiques, cafés, clinics and offices — anywhere a Canadian winter means insulated ceilings and damp entries. Two spring loaded clips grip almost any ceiling material, and three quick connect push-in terminals make wiring fast. Prefer a warmer or cooler fixed colour? Compare the 3" LUNA gimbal recessed fixture RA3-7G-27K-90BN or the 3" LUNA gimbal recessed fixture RA3-7G-30K-90BN. Order your LUNA gimbals today and light your project the way you pictured it.

Built to last, built to fit
The LUNA gimbal starts with a durable airtight aluminum body and an adjustable gimbal, so the light source tilts and turns inside the trim instead of staring straight down. An anodized blue heat sink is included to provide maximum airflow for the LED light source, which is exactly what keeps output and colour stable year after year in a tight, insulated ceiling. The airtight recessed downlight body drops into a Ø 2 3/4" (70mm) hole cut and is held by two spring loaded clips that grip drywall, plywood, plaster or panelled ceilings. Finish on this model is brushed nickel.

Light quality you can see
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens with a typical CRI of 90, so colours stay true under the beam. The real signature here is dim-to-warm: colour temperature dims from 3000 K to 1800 K, following the dimmer the way an incandescent used to. Bright and neutral for cooking or reading, deep amber for a late evening in the living room. The fixture lens provides a 45° beam spread — tight enough to accent, wide enough to overlap into smooth general lighting.

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable class II electronic LED driver with 100-135V AC input. An 18" (457mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings, and three "Quick connect" push-in terminals make wiring fast on a crowded ceiling. The fixture is approved for wet locations and for direct contact with insulation, and the operating temperature range of -40°C+40°C (-40°F+104°F) covers unheated porches and soffits. Pair it with industry standard TRIAC/ELV dimmers only; Liteline publishes a compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
Model: RA3-7G-50K-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per Watt: 96
CCT: 3000 K~1800 K
CRI: 90
Beam Angle: 45°
Input: 100-135V AC, 50 / 60Hz
Dimming: Yes — TRIAC/ELV
Class II: Yes
Power Factor: 0.95
Hole Cut: Ø 2 3/4" (70mm)
Projected Life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime
Colour: Brushed Nickel

Applications, accessories and documentation
Use these small gimbal pot lights to wash a fireplace surround, aim into open shelving, light a shower or a covered entry, or build a discreet grid in a condo hallway; in commercial work they do well in boutiques, dental and medical clinics, restaurants and offices where a low-glare aperture matters. Listed accessories, sold separately, include the SLM-60-FC flexible connector for SlimLED and LUNA fixtures, the P-2810 round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders — very handy for recessed lighting vapour barrier requirements in Canadian builds. Smart control options include the LC-CRTL-DIM-1 OnCloud Smart Wi-Fi dimmer, 120V and the LC-CRTL-3WAY-1 OnCloud Smart Wi-Fi 3-Way Switch, both compatible with the WiZ App. Matching finishes and colour temperatures are available across the family, including the 3" LUNA gimbal recessed fixture RA3-7G-DTW-90BK and the 3" LUNA gimbal recessed fixture RA3-7G-DTW-90WH, plus the 3" LUNA gimbal recessed fixture RA3-7G-35K-90BN. The full technical PDF spec sheet for this model is in the Documentation tab — check the ordering guide and dimensions before you cut ceiling.

Technical Files
