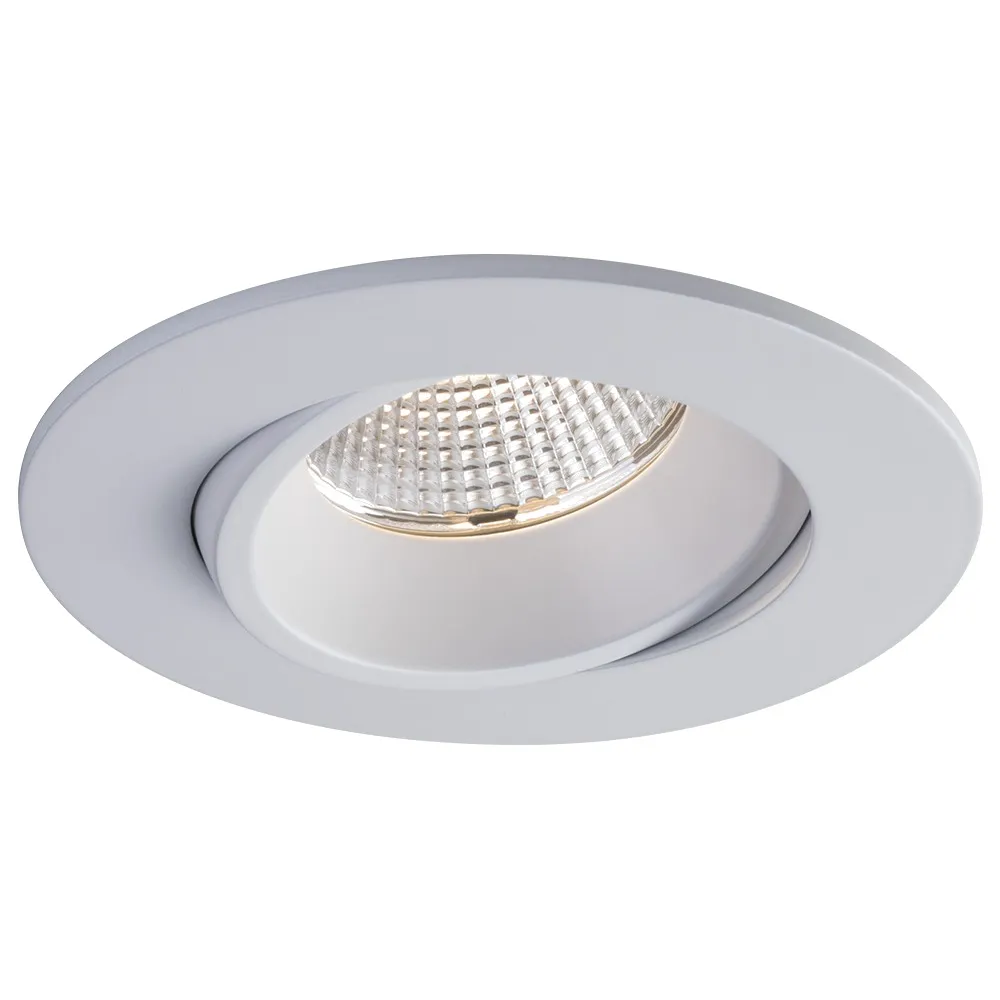

3.5" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA35-12RG-DTW90WH

Name: 3.5" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA35-12RG-DTW90WH
Brand: LITELINE
SKU: RA35-12RG-DTW90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12RG-DTW90WH

Brand: LITELINE

Say goodbye to glare with the 3.5" LUNA LED Round Regressed Gimbal Recessed Fixture, model RA35-12RG-DTW90WH. Call it a recessed downlight, a pot light, a 3.5-inch gimbal trim or simply a round LED light — this is the compact, aimable version of the LUNA Designer Series, built with regressed optics that push the light source deep into the housing so you see the glow, not the diode. The adjustable gimbal tilts 40°, which means you can wash a stone fireplace, graze a feature wall or aim light onto a kitchen island instead of settling for a flat, static ceiling grid. With a white trim finish and a colour selectable switch right on the fixture, it suits both new construction and renovation work in homes, condos, offices and retail spaces.

This 12 watt fixture delivers up to 1160 lumens and up to 102 lumens per watt, with a typical CRI of 95+ so wood tones, paint colours, food and skin tones all look the way they should. The on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — with measured output of 1040 lumens at 2700 K, 1090 at 3000 K, 1135 at 3500 K, 1160 at 4000 K and 1145 at 5000 K. The 38° beam spread keeps the light directional and controlled. Dimming runs from 100% down to 10% on standard forward-phase / reverse-phase and TRIAC/ELV dimmers. Input is 100-135V AC, 50/60Hz, power factor greater than 0.90, Class II, with a projected life of 70% at 50,000 hours, cETLus certification, Energy Star listing and a lifetime warranty. The airtight aluminum body with anodized blue heat sink is suitable for wet locations and approved for direct contact with insulation.

Use it over a shower or a soaker tub, along a hallway, in a covered porch ceiling, above retail shelving, in a reception area or as accent lighting in a restaurant. The Ø 3 5/8" (92 mm) hole cut and two spring-loaded clips make retrofits quick, and the 18" cable with DC 2.1 connector keeps the driver box tidy above the ceiling. Pair it with the matching fixed version 3.5" LUNA LED round recessed fixture RA35-12G-90WH or the white gimbal RA35-12RG-90WH, and go black with RA35-12RG-DTW90BK where you want the trim to disappear. Order yours and light the room the way you actually want it.

Built to last, built to disappear
The LUNA RA35-12RG-DTW90WH is built around a durable airtight aluminum body with an adjustable regressed gimbal and an anodized blue heat sink that maximizes airflow around the LED light source — the kind of thermal design that protects output and colour over the long haul. The regressed optic is the star here: by setting the LED deep inside the aperture, the fixture cuts direct glare and gives ceilings a clean, quiet look. The gimbal tilts 40° and the trim carries a white finish, so it blends into most ceilings while still letting you aim exactly where the light is needed. Hole cut is Ø 3 5/8" (92 mm).

Light quality you can see
This general application LED downlight produces up to 1160 lumens with a typical CRI of 95+, which matters enormously in kitchens, bathrooms, boutiques and galleries where colour rendering is the difference between "nice" and "wow". The LED module maintains uniform intensity, and the lens delivers a 38° beam spread for controlled, directional pools of light. The on-fixture colour selectable switch lets you choose between five colour temperatures — 2700 K (1040 lumens), 3000 K (1090), 3500 K (1135), 4000 K (1160) and 5000 K (1145) — so one SKU covers a warm living room and a crisp commercial corridor in the same order.

Driver, dimming and wiring
The fixture ships with an extruded aluminum hardwire box housing a 12 watt (300mA) dimmable Class II electronic LED driver with 100-135V AC input. Three "Quick connect" push-in terminals speed up wiring, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings. Dimming runs 100%-10% with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for the list of compatible dimmers). Two spring-loaded clips attach the fixture to virtually any ceiling material, making both new construction and remodel installs straightforward. Operating temperature range is -20°C~40°C (-4°F~104°F).

Technical specifications
Model: RA35-12RG-DTW90WH
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60Hz
Power factor: >0.90
Dimming tech: Forward/reverse-phase TRIAC/ELV
Class II: Yes
Hole cut: Ø 3 5/8" (92 mm)
Projected life: 70% @ 50,000 hrs
Certification: cETLus
Energy Star: Yes
Colour: WH (white)
Warranty: Lifetime

Where it works and what goes with it
Because it is airtight, wet location rated and approved for direct contact with insulation, this fixture is a natural fit for Canadian homes: insulated ceilings, bathrooms and showers, covered entries, three-season rooms, basements and open-plan kitchens. On the commercial side, think retail display, hotel corridors, dental and medical offices, cafés and boardrooms where low glare and high CRI are non-negotiable. Accessories such as pre-mounting plates, new construction plates and mounting kits, reducer rings and vapour barrier extenders are sold separately and are designed for 3 1/2" LUNA LED fixtures. To mix aimable and fixed optics on the same ceiling, look at 3.5" LUNA LED round recessed fixture RA35-12F-30K-90WH, or match finishes with RA35-12RG-90BN in brushed nickel and RA35-12RG-90BK in black. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit package.
