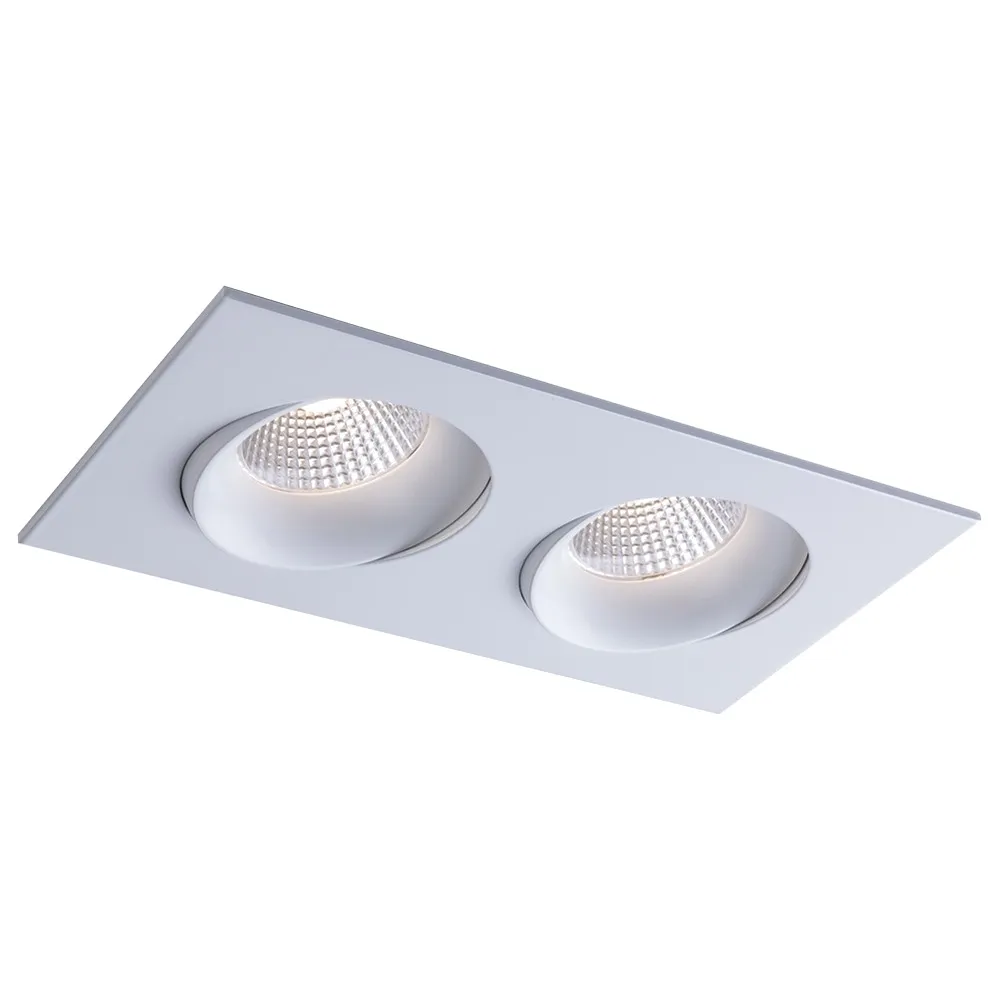

3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-2L-9G-90WH

Name: 3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-2L-9G-90WH
Brand: LITELINE
SKU: RA35M-2L-9G-90WH
Price: 178.97 CAD
Availability: InStock

SKU: RA35M-2L-9G-90WH

Brand: LITELINE

Two beams, one clean slot in the ceiling: the 3.5" LUNA LED 2-Light Linear Gimbal Color Selectable Recessed Fixture by LITELINE gives you the aiming freedom of a spotlight with the crisp look of linear LED lighting. People search for it as a linear pot light, a двух-head gimbal downlight, a directional recessed lighting bar or simply an adjustable recessed fixture — it is all of those. Two independently tiltable gimbals sit in a single airtight aluminum housing, so you can wash a stone fireplace, graze a feature wall, light artwork or aim task light onto a kitchen island, all from one opening. SKU RA35M-2L-9G-90WH comes in a white trim finish that disappears into a painted ceiling.

This is a serious light engine, not a decorative gadget. The 18 W LED module delivers up to 1675 lumens (up to 101 lumens per watt) with a typical CRI of 94, so wood, paint, fabric and skin tones look the way they should. An on-fixture color selectable switch lets you choose between five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — and the 38° beam spread keeps the light focused where you aim it. Dimming runs from 100% down to 10% on standard forward-phase / reverse-phase and TRIAC/ELV dimmers, input is 100-135V AC, 50/60Hz, power factor is greater than 0.90, and the fixture is Class II, Energy Star qualified and cETLus certified. It is airtight, approved for direct contact with insulation, suitable for wet locations, rated for operation from -20°C to 40°C, projected at 70% output at 50,000 hours, and backed by a lifetime warranty.

Put it over a kitchen island, in a hallway, above a vanity or a shower, in a covered porch or soffit, in a boutique, a café or a reception desk — anywhere a Canadian home or small business needs punchy, aimable light that survives cold, damp and insulated attics. Need a longer run of light or a darker trim? Look at the 3.5" Luna 3-light linear gimbal recessed fixture in white, the 2-light version in black or the 2-light version in brushed nickel. Add it to your cart and give your ceiling a line of light you can actually aim.

Built to last, built to breathe
The LUNA linear gimbal starts with a durable airtight aluminum body fitted with adjustable gimbals, plus an anodized blue heat sink that keeps airflow moving around the LED light source. That thermal design is what protects lumen output and colour over the long haul — the fixture is projected to hold 70% of its output at 50,000 hours and carries a lifetime warranty. The housing is airtight, approved for direct contact with insulation and suitable for wet locations, and it operates from -20°C to 40°C, so it handles a sealed attic ceiling in Winnipeg as comfortably as a covered patio soffit on the coast.

Light quality you can trust
This general-application recessed fixture uses an 18 W LED module that maintains uniform intensity and produces up to 1675 lumens with a typical CRI of 94 — a level of colour rendering that flatters millwork, paint, merchandise and people. The on-fixture color selectable switch gives you five colour temperatures with real, measured output behind each one: 2700 K at 1490 lumens, 3000 K at 1544, 3500 K at 1666, 4000 K at 1676 and 5000 K at 1638. The lens delivers a 38° beam spread, tight enough to shape a wall or a countertop, wide enough to layer comfortably with other surface mount lighting or downlights in the same room.

Technical specifications
SKU: RA35M-2L-9G-90WH
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 18W
Lumens: Up to 1675
Efficacy: Up to 101 lumens per watt
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 94
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: Greater than 0.90
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 50,000 hrs
Certification: cETLus, Energy Star, Class II
Trim finish: White
Warranty: Lifetime

Wiring and installation
The fixture includes four spring-loaded clips that grip any ceiling material, which makes retrofit work fast and clean. Power comes from an extruded aluminum hardwire box holding two 210mA dimmable Class II electronic LED drivers with 100-135V AC input, connected to the fixture by an 18" FT6 rated cable with a DC 2.1 connector that is approved for use in plenums and suspended ceilings. "Quick connect" push-in terminals speed up the wiring. Pair it with industry-standard forward-phase / reverse-phase and TRIAC/ELV dimmers for smooth 100% to 10% control; a compatible dimmer list is available from the factory. Accessories such as a premounting plate for the LUNA 2-light linear gimbal, a new construction mounting kit with hanger bars, brackets and screws, and a vapour barrier extender are sold separately.

Where to use it and what else to look at
Think kitchen islands and countertops, hallways and stairwells, bathrooms and shower ceilings, basement renos, covered entries and porches, plus commercial jobs like boutiques, cafés, clinics and offices where aimable linear LED lighting replaces rows of fixed pot lights. The technical spec sheet for RA35M-2L-9G-90WH is available in the Documentation tab with dimensions, the ordering guide and the full lumen-per-CCT table. If your layout calls for more light per opening, the 3-light Luna linear gimbal in white keeps the same look, while the 3-light black and 3-light brushed nickel versions match darker or metallic ceiling details.
