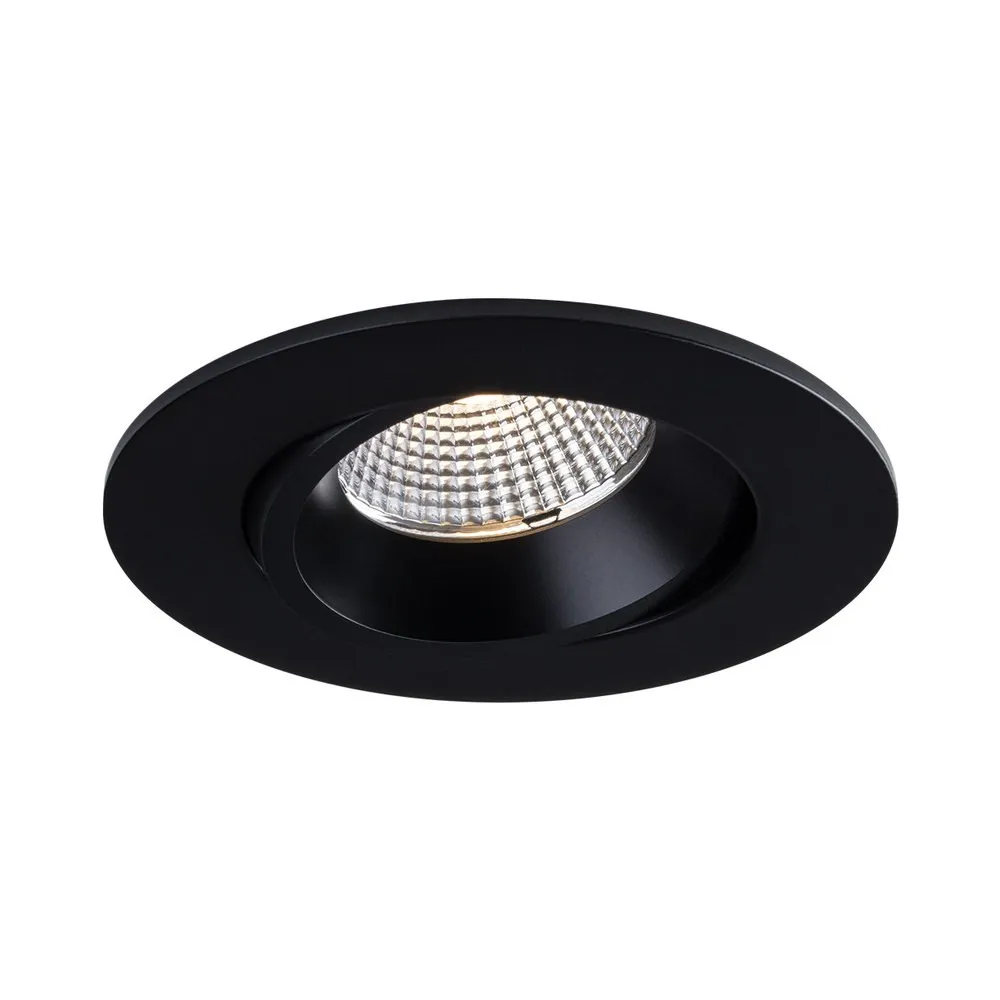

3.5" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA35-12RG-90BK

Name: 3.5" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA35-12RG-90BK
Brand: LITELINE
SKU: RA35-12RG-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12RG-90BK

Brand: LITELINE

Some ceilings deserve better than a bright white ring staring back at you. The 3.5" LUNA LED Round Regressed Gimbal Recessed Fixture (SKU RA35-12RG-90BK) hides its light source deep inside a black trim, so you see the glow and not the glare. People search for it as a recessed light, a pot light, a round LED downlight, an aimable gimbal recessed light or simply a 3.5-inch LED insert — and it is all of those in one compact, airtight package. The adjustable regressed gimbal lets you aim the beam exactly where it matters: artwork, a stone feature wall, a kitchen island, a reception desk or a row of retail shelves. Because the colour temperature is selected right on the fixture, one box covers warm residential living rooms and crisp commercial spaces alike.

Inside the durable airtight aluminum body sits an LED module delivering up to 1160 lumens at 12 watts — up to 102 lumens per watt — with an anodized blue heat sink that keeps airflow moving around the diodes. The on-fixture colour selectable switch steps through five colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K and 5000 K (1040, 1090, 1135, 1160 and 1145 lumens respectively). A typical CRI of 95+ makes skin tones, wood grain and paint colours look honest, while the 38° beam spread and 40° tilt give you controlled, directional light. It runs on 100-135V AC with a Class II dimmable electronic driver, dims from 100% to 10% on forward-phase / reverse-phase and TRIAC/ELV dimmers, is cETLus certified and Energy Star listed, suitable for wet locations, approved for direct contact with insulation, rated for -20°C to 40°C, projected at 70% @ 50,000 hrs and backed by a lifetime warranty.

This black-trim LUNA is at home in condo kitchens, hallways, bedrooms, covered porches and bathrooms, and just as convincing in boutiques, cafés, clinics and offices. The Ø 3 5/8" (92 mm) hole cut and two spring-loaded clips make retrofits painless in Canadian homes, and the wet location plus insulated-ceiling approval suits our winters and tight attic assemblies. Need matching looks elsewhere in the project? Pair it with the 3.5" LUNA LED round regressed gimbal recessed fixture in brushed nickel or in white, or mix in the fixed 3.5" LUNA LED round recessed fixture for general ceilings. Aim it once, and enjoy it for years.

Built to disappear into the ceiling
The LUNA Designer Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and RA35-12RG-90BK shows it. The housing is a durable airtight aluminum body with an adjustable regressed gimbal, and an anodized blue heat sink provides maximum airflow for the LED light source — the kind of thermal design that protects lumen output over the long haul. The black trim finish reads as a clean dark aperture in a white ceiling, which is exactly why designers specify it over shiny reflectors. The fixture measures 4 3/8" (111 mm) and 3 3/8" (85 mm) across the visible profile, with a 4 3/16" (106 mm) / 3 1/16" (78 mm) body and a 15/16" (34 mm) depth detail, for a recessed downlight that stays discreet.

Light quality you can see
This general application light fixture features an LED module that maintains uniform intensity producing up to 1160 lumens, with a typical CRI of 95+. The on-fixture colour selectable switch — a 5CCT system, meaning five selectable colour temperatures — moves between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, so you can warm up a den or cool down a workspace without reordering. At 12W the output reads 1040 lm at 2700 K, 1090 lm at 3000 K, 1135 lm at 3500 K, 1160 lm at 4000 K and 1145 lm at 5000 K. The lens delivers a 38° beam spread and the gimbal tilts up to 40°, ideal for accenting rather than flooding.

Technical specifications
SKU: RA35-12RG-90BK
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K (colour selectable)
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Operating temperature: -20°C ~ 40°C (-4°F ~ 104°F)
Projected life: 70% @ 50,000 hrs
Certification: cETLus, Energy Star, Class II
Warranty: Lifetime

Wiring and installation
The fixture ships with an extruded aluminum hardwire box housing a 12 watt (300mA) dimmable Class II electronic LED driver with 100-135V AC input, plus an 18" (457 mm) FT6 rated cable with DC 2.1 connector between driver and fixture, approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make wiring fast on site, and two spring-loaded clips attach the fixture to any ceiling material — no housing or can required. Cut a Ø 3 5/8" (92 mm) hole, push in, twist the gimbal into position and you are done. Dimming runs 100% to 10% on industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers; contact the factory for the list of compatible dimmers.

Where it works and what pairs with it
Use it over kitchen counters and islands, along hallways, in bedrooms and ensuites, on covered porches and soffits thanks to the wet location rating, and in retail, café, clinic and office ceilings where a low-glare gimbal recessed light keeps the focus on the merchandise or the millwork. The airtight build and insulation-contact approval suit insulated Canadian ceilings and air barrier requirements. Within the same family you can mix apertures and finishes: the brushed nickel version, the white version, the dim-to-warm RA35-12RG-DTW90BK, or the fixed 3.5" LUNA LED round recessed fixture in black for general ambient zones. Accessories such as pre-mounting plates, new construction plates, vapour barrier extenders and reducer rings for 3 1/2" LUNA fixtures are sold separately. The full technical spec sheet is available in the Documentation tab for dimensions, ordering codes and installation details.
