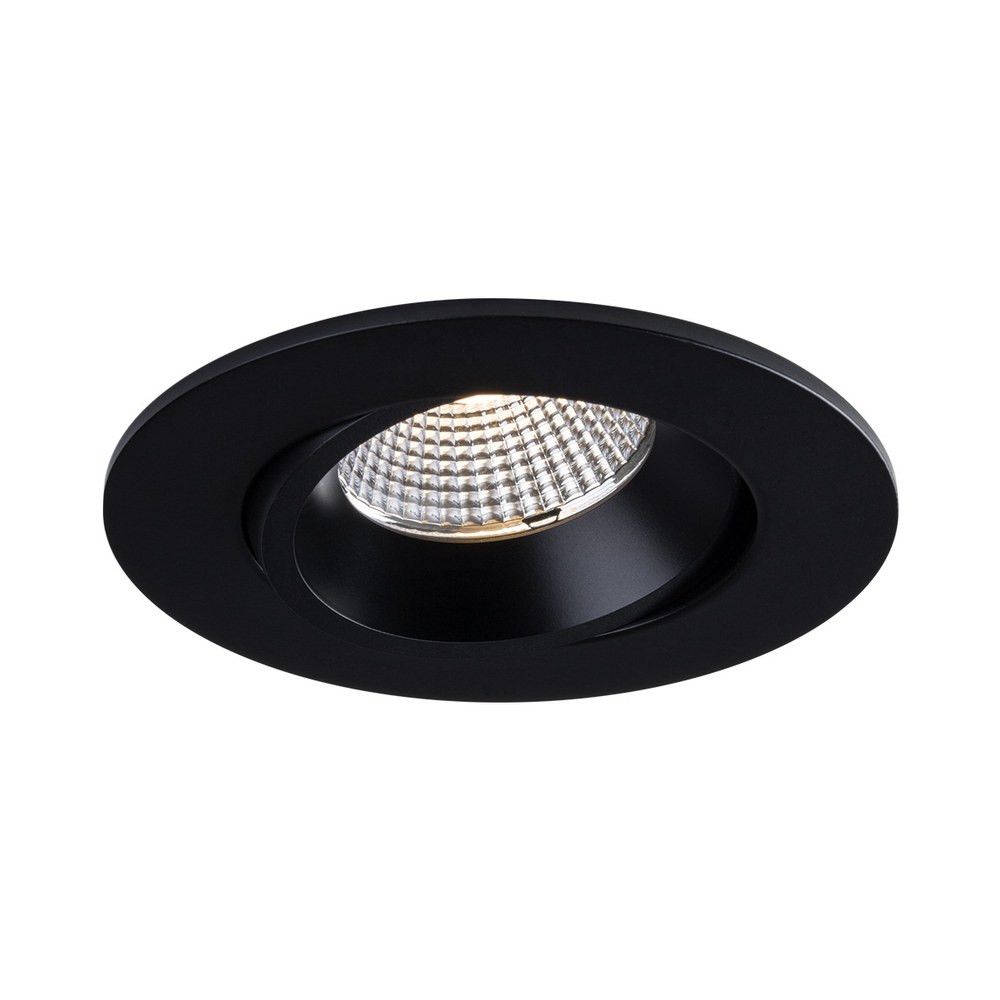

3.5" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA35-12RG-DTW90BK

Name: 3.5" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA35-12RG-DTW90BK
Brand: LITELINE
SKU: RA35-12RG-DTW90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12RG-DTW90BK

Brand: LITELINE

Say goodbye to glare bombs in the ceiling. The 3.5" LUNA LED Round Regressed Gimbal Recessed Fixture (SKU RA35-12RG-DTW90BK) is a compact recessed downlight — what most people call a pot light or round LED light — with an adjustable gimbal set deep inside the trim so you see the light, not the source. Because the optic is regressed and the black trim swallows stray reflections, this LUNA aims where you want it without washing out the ceiling. Tilt it to graze a stone wall, angle it down a sloped ceiling, or line up a row over a kitchen island and let the beam do the work. It's a true general-application luminaire from LITELINE, equally at home in a basement renovation, a condo hallway, a boutique or an office refresh.

Under the hood, this is a colour selectable LED downlight: an on-fixture switch lets you pick between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, so one box covers warm living spaces and crisp work areas alike. The 12 W module delivers up to 1160 lumens (1040 lm at 2700 K, 1090 lm at 3000 K, 1135 lm at 3500 K, 1160 lm at 4000 K, 1145 lm at 5000 K) at up to 102 lumens per watt, with a typical CRI of 95+ that keeps skin tones, wood grain and paint colours honest. The 38° beam spread and 40° tilt give you real aiming control. Dimming runs smoothly from 100% to 10% on standard forward-phase / reverse-phase and TRIAC/ELV dimmers, on 100-135V AC, 50/60 Hz input. The airtight aluminum body carries an anodized blue heat sink, it is suitable for wet locations, approved for direct contact with insulation, cETLus certified, Energy Star, Class II, rated 70% @ 50,000 hrs and backed by a Lifetime warranty.

Fits a Ø 3 5/8" (92 mm) hole cut, so it slips into new construction or a remodel with the two included spring-loaded clips. Perfect over showers and tubs, on covered porches, in hallways, retail displays, restaurants and offices — anywhere Canadian homeowners and contractors want clean, low-glare, directional light. Matching fixed and gimbal versions round out the plan: see the 3.5" Luna LED round regressed gimbal recessed fixture RA35-12RG-90BK, the brushed nickel 3.5" Luna LED round regressed gimbal recessed fixture RA35-12RG-DTW90BN, or the fixed 3.5" Luna LED round recessed fixture RA35-12F-27K-90BK. Plan your layout and order your black LUNA gimbals today.

Built to disappear into the ceiling
The LUNA Designer Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and the regressed gimbal version is the proof. A durable airtight aluminum body houses an adjustable regressed gimbal, while an anodized blue heat sink keeps maximum airflow around the LED light source — the single best way to protect lumen output and colour over the years. The black trim finish (BK) sinks visually into dark ceilings and cuts reflected sparkle, which is exactly what you want in a media room, a restaurant or a hotel corridor. Two spring-loaded clips are included and grip any ceiling material, and the fixture is approved for direct contact with insulation, so no standoff boxes to build.

Light quality and aiming
This is a colour selectable (5CCT) recessed downlight: an on-fixture switch steps through 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, so a single SKU handles a warm master bedroom and a cool garage workbench on the same job site. Output tracks the setting — 1040 lumens at 2700 K, 1090 at 3000 K, 1135 at 3500 K, 1160 at 4000 K and 1145 at 5000 K — for up to 102 lumens per watt. With a typical CRI of 95+, merchandise, artwork and finishes read true. The lens delivers a 38° beam spread and the gimbal tilts up to 40°, so you can wall-wash, accent a fireplace or correct for a sloped ceiling without buying a second fixture type.

Technical specifications
Model: RA35-12RG-DTW90BK
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K (colour selectable)
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60 Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Dimensions: 4 3/8" (111 mm) and 3 3/8" (85 mm); 4 3/16" (106 mm) / 3 1/16" (78 mm); 15/16" (34 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Colour: BK (also available BN / OB / WH)
Class II: Yes
Certification: cETLus, Energy Star
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Wiring and installation
The extruded aluminum hardwire box holds a 12 watt (300mA) dimmable Class II electronic LED driver with 100-135V AC input. Three "Quick connect" push-in terminals make wiring fast, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings, which matters for commercial inspections. Cut a Ø 3 5/8" (92 mm) hole, clip it in, aim, done. Pair it with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers for smooth 100%-10% control; contact factory for the list of compatible dimmers. Accessories such as pre-mounting plates, new construction plates and mounting kits, vapour barrier extenders and reducer rings are listed on the spec sheet and sold separately.

Where it works, and what pairs with it
Because it is airtight, IC-rated for insulation contact and suitable for wet locations, this LUNA suits Canadian realities: insulated attics, bathrooms and shower ceilings, covered entries and soffits, basements, open-plan kitchens, plus retail, offices, clinics and hospitality. Build a consistent ceiling by mixing this gimbal with the fixed-trim 3.5" Luna LED round recessed fixture RA35-12F-30K-90WH for general lighting, or stay in the gimbal family with 3.5" Luna LED round regressed gimbal recessed fixture RA35-12RG-90WH and 3.5" Luna LED round regressed gimbal recessed fixture RA35-12RG-90BN for other finishes — all share the same Ø 3 5/8" (92 mm) hole cut. The full technical PDF (RA35-12RG-DTW90BK Spec Sheet) is in the Documentation tab with dimensions, lumen table and the complete ordering guide.
