3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-2L-9G-90BN

Name: 3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-2L-9G-90BN
Brand: LITELINE
SKU: RA35M-2L-9G-90BN
Price: 190.97 CAD
Availability: InStock

SKU: RA35M-2L-9G-90BN

Brand: LITELINE

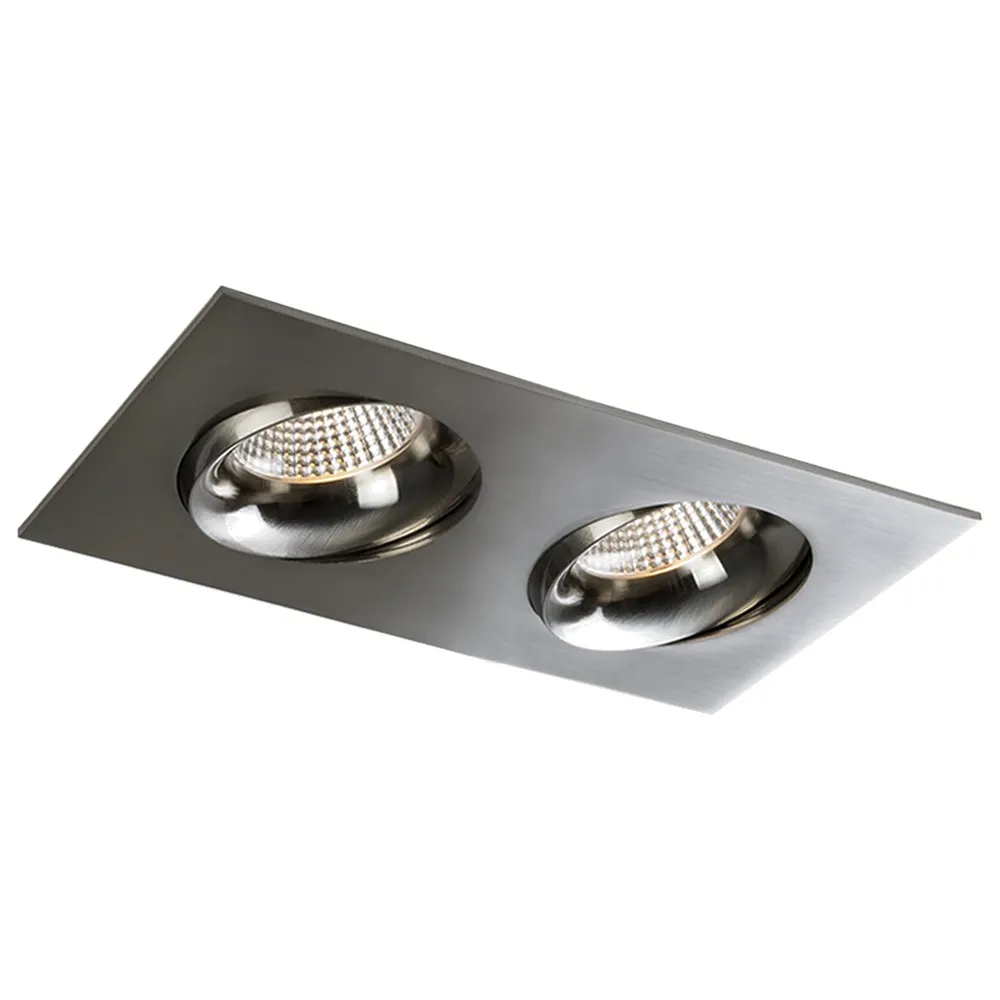

Two adjustable heads, one clean slot in the ceiling: the LUNA 3.5" LED 2-light linear gimbal recessed fixture gives you directional light without the bulk of a track. People look for it as a linear LED recessed light, a double gimbal pot light, an adjustable downlight or simply a recessed lighting bar for accenting art, islands and feature walls — this is that fixture, in a warm brushed nickel trim. Each of the two heads tilts and rotates independently, so you can wash a stone fireplace with one and drop a pool of light on a counter with the other, from the same housing. It is built for retrofit work, which means you can upgrade a dated ceiling without tearing it apart, and it suits both homes and storefronts.

Under the hood, the 18W LED module puts out up to 1675 lumens (up to 101 lumens per watt) with a typical CRI of 94, so wood grain, paint, skin tones and merchandise all read true. The on-fixture colour selectable switch covers five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — letting you match the rest of the room on site instead of guessing at the counter. The 38° beam spread keeps light focused where you aim it. It dims from 100% to 10% on standard forward-phase / reverse-phase and TRIAC/ELV dimmers, runs on 100-135V AC 50/60Hz, is cETLus certified and Energy Star qualified, and is rated for wet locations, airtight, and approved for direct contact with insulation. Projected life is 70% at 50,000 hrs, backed by a lifetime warranty. Model RA35M-2L-9G-90BN.

Put it over a kitchen island, along a hallway of framed photos, above a bathroom vanity, in a covered entry or soffit, or in a boutique, café or clinic where displays need real punch. The wet location rating and airtight, insulation-contact construction make it a sound choice for Canadian ceilings where humidity and blown-in insulation are part of the job. Need a longer run of light? Step up to the 3.5" LUNA 3-light linear gimbal in brushed nickel, or match another trim with the black and white versions. Add it to your order and give your ceiling a modern, aimable upgrade.

Built to last, built to breathe
The LUNA linear gimbal starts with a durable airtight aluminum body and an adjustable gimbal at each of the two heads. Inside, an anodized blue heat sink keeps airflow moving around the LED light source, which is exactly what you want from a recessed LED fixture that will spend its life buried in insulation. The brushed nickel (BN) trim finish of this model brings a soft metallic edge that pairs well with stainless appliances, modern hardware and warm wood cabinetry, while the low-profile linear shape reads as architectural rather than utilitarian.

Light quality you can actually see
This general application fixture uses an 18 watt LED module that maintains uniform intensity and produces up to 1675 lumens with a typical CRI of 94 — high enough that reds stay red and whites stay clean, which matters over a kitchen counter, in a retail display or in a bathroom mirror zone. The on-fixture colour selectable switch gives you five colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, with measured output of 1490 lumens at 2700 K, 1544 at 3000 K, 1666 at 3500 K, 1676 at 4000 K and 1638 at 5000 K. The lens delivers a 38° beam spread, tight enough to accent and wide enough to light a working surface.

Wiring, dimming and driver
An extruded aluminum hardwire box houses two 210mA dimmable class II electronic LED drivers with 100-135V AC input, connected to the fixture by an 18" FT6 rated cable with a DC 2.1 connector that is approved for use in plenums and suspended ceilings. "Quick connect" push-in terminals make wiring fast on site. Dimming runs from 100% down to 10% with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers; contact factory for the list of compatible dimmers. Power factor is greater than 0.90 and operating temperature range is -20°C~40°C (-4°F~104°F). Mounting is handled by four spring loaded clips that grip any ceiling material.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Beam angle: 38°
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Colour: BN (Brushed Nickel)
CRI: 94
Dimming: Yes, 100%-10%
Dimming tech: Forward/reverse-phase TRIAC/ELV
Energy Star: Yes
Input: 100-135V AC, 50/60Hz
Lumens: Up to 1675
Lumens per watt: Up to 101
Power factor: >0.90
Projected life: 70% @ 50,000 hrs
Wattage: 18W
Warranty: Lifetime

Where to use it and what pairs with it
Think kitchen islands and peninsulas, gallery hallways, fireplace and feature walls, home offices, covered porches and soffits, plus commercial rooms such as boutiques, cafés, salons, dental clinics and reception desks where adjustable recessed lighting has to make products and faces look right. Because it is suitable for wet locations, airtight and approved for direct contact with insulation, it also works in bathrooms and exterior overhangs. Accessories are sold separately, including a premounting plate for the LUNA 2-light linear gimbal and a new construction mounting kit with hanger bars, brackets and screws, plus a vapour barrier extender for new construction. Within the same family you can mix the 3-light brushed nickel version for longer runs or the 3-light white version to blend into a painted ceiling. The full technical PDF (RA35M-2L-9G-90BN Spec Sheet) is in the Documentation tab with dimensions, cut-out details and the ordering guide.
