3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-2L-9G-90BK

Name: 3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-2L-9G-90BK
Brand: LITELINE
SKU: RA35M-2L-9G-90BK
Price: 178.97 CAD
Availability: InStock

SKU: RA35M-2L-9G-90BK

Brand: LITELINE

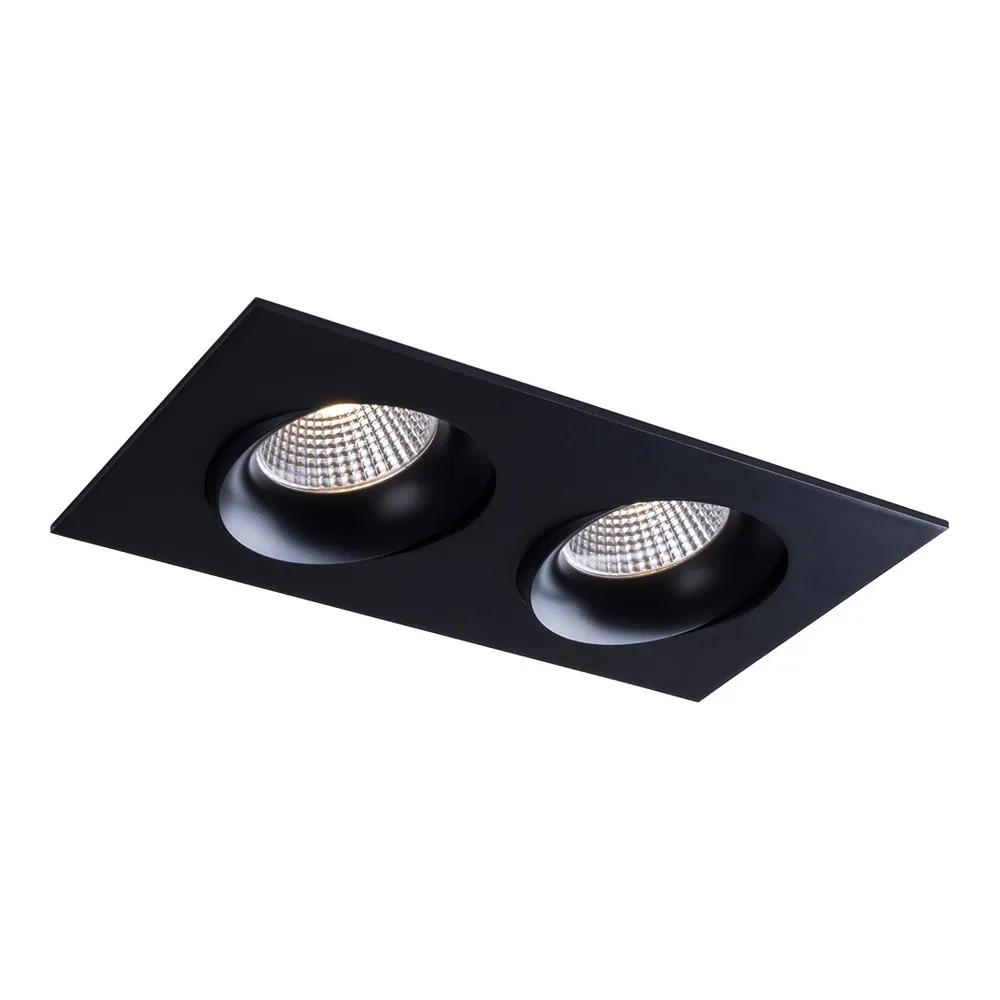

Two crisp beams of light in one slim recessed housing — that is the promise of the 3.5" LUNA LED Linear Gimbal Color Selectable Recessed Fixture, model RA35M-2L-9G-90BK in a sharp black trim finish. People look for it as a linear LED recessed light, a double gimbal pot light, a 2-light directional downlight or simply a modern recessed lighting bar for kitchens and hallways. Its two aiming heads let you wash an island, graze a brick wall, highlight artwork or point light exactly where the work happens, all from a single cut in the ceiling. It is designed for retrofit and renovation work as much as for new residential and commercial projects, and its streamlined shape keeps the ceiling looking clean and intentional instead of dotted with random holes.

Behind the anodized blue heat sink sits an 18W LED module that delivers up to 1675 lumens, up to 101 lumens per watt, with a typical CRI of 94 so skin tones, wood grain and paint colours read true. The on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — with measured output of 1490, 1544, 1666, 1676 and 1638 lumens respectively. The lens produces a controlled 38° beam spread. Two 210mA class II electronic drivers run on 100-135V AC, 50/60Hz, with smooth 100%-10% dimming on standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The durable airtight aluminum body is rated for wet locations, approved for direct contact with insulation, cETLus certified, Energy Star qualified, projected at 70% output at 50,000 hours, and backed by a lifetime warranty.

Put it over a kitchen island, along a hallway, above a bathroom vanity, in a covered porch or soffit, in a boutique, café or office reception where adjustable accent light matters. It handles Canadian realities well: airtight construction for insulated ceilings, an operating range of -20°C to 40°C, and four spring loaded clips that grip any ceiling material. Prefer another finish? The same fixture comes in brushed nickel or white, and a longer 3-light black version continues the same line. Order your LUNA linear gimbal today and light the room the way you actually use it.

Built to last, built to disappear into the ceiling
The LUNA linear gimbal starts with a durable airtight aluminum body holding two adjustable gimbals, so each head can be aimed independently after installation. An anodized blue heat sink keeps airflow around the LED light source, which protects lumen output and colour over the long run — the projected life is 70% at 50,000 hours, and the fixture carries a lifetime warranty. The black trim of this SKU keeps the openings visually quiet in a dark ceiling or above a feature wall, while the 2-light linear gimbal format replaces two separate pot lights with one continuous, deliberate shape.

Light quality you can actually see
The 18W LED module produces up to 1675 lumens at up to 101 lumens per watt, with a typical CRI of 94 — the level you want over a kitchen counter, a display shelf or a bathroom mirror. The on-fixture switch selects 2700 K, 3000 K, 3500 K, 4000 K or 5000 K, so one box covers a warm living room and a crisp work area; lumen output per setting is 1490 lm at 2700 K, 1544 lm at 3000 K, 1666 lm at 3500 K, 1676 lm at 4000 K and 1638 lm at 5000 K. A 38° beam spread from the lens gives controlled accent light rather than a flat wash, and the gimbals let you tilt that beam onto the surfaces that deserve it.

Wiring, dimming and installation
The extruded aluminum hardwire box holds two 210mA dimmable class II electronic drivers with 100-135V AC input, joined to the fixture by an 18" FT6 rated cable with a DC 2.1 connector, approved for use in plenums and suspended ceilings. "Quick connect" push-in terminals make wiring fast, and four spring loaded clips let the housing grab any ceiling material. Dimming runs from 100% down to 10% with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for the list of compatible dimmers). Power factor is greater than 0.90 and the operating temperature range is -20°C to 40°C (-4°F to 104°F).

Technical specifications
Model: RA35M-2L-9G-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 18W
Lumens: Up to 1675
Lumens per watt: Up to 101
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 94
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Class II: Yes
Power factor: >0.90
Colour: BK (black)
Certification: cETLus
Energy Star: Yes
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Where it fits, and what to look at next
Because it is suitable for wet locations, airtight and approved for direct contact with insulation, this fixture works over a shower, in a covered entry or soffit, and in insulated ceilings where air leakage matters in a Canadian winter. Contractors use it over kitchen islands and bar counters, in retail displays, in café seating areas and in office corridors where two aimed beams beat one static downlight. Note that accessories are sold separately. The full page Documentation tab carries the RA35M-2L-9G-90BK spec sheet with the ordering guide, dimensions and lumen table. To match finishes across a project, compare the brushed nickel 2-light version and the white 2-light version, or step up to the 3-light black LUNA and the 3-light white LUNA for longer runs.

Technical Files
