3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-3L-9G-90BK

Name: 3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-3L-9G-90BK
Brand: LITELINE
SKU: RA35M-3L-9G-90BK
Price: 267.97 CAD
Availability: InStock

SKU: RA35M-3L-9G-90BK

Brand: LITELINE

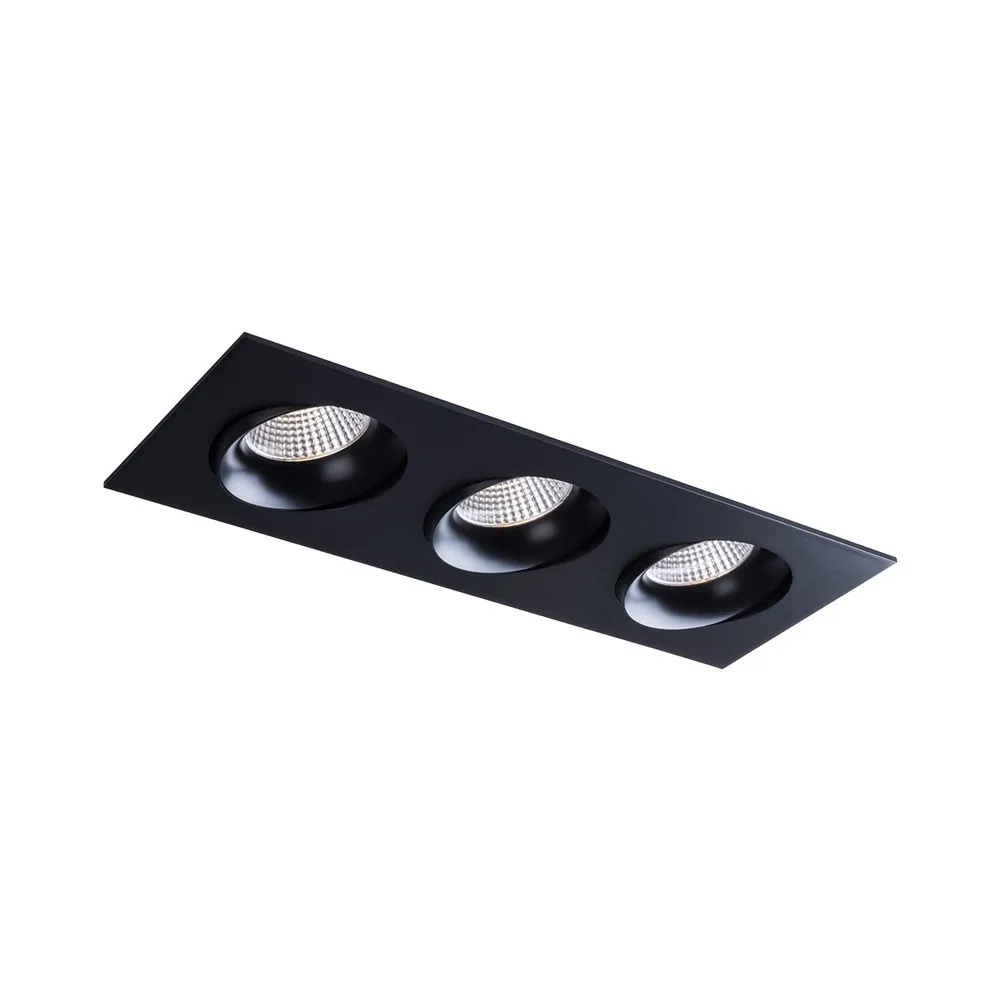

Three adjustable beams in one clean, narrow opening: the 3.5" LUNA LED Linear Gimbal Color Selectable Recessed Fixture (SKU RA35M-3L-9G-90BK) puts a row of aimable light exactly where you want it. People look for it as a linear LED recessed light, a 3-light gimbal pot light, a multiple-head downlight or simply a luminaire encastré with tilting heads — whatever you call it, it replaces three separate holes in the ceiling with one tidy black trim. Because each head pivots, you can wash an art wall, graze a stone fireplace, light a kitchen island or aim down a reception desk, all from the same fixture. It is a true recessed downlight built for both retrofit work and new construction, and it suits residential and commercial projects alike.

The 27W LED module delivers up to 2515 lumens, up to 101 lumens per watt, with a typical CRI of 94 so skin tones, wood, paint and merchandise look the way they should. An on-fixture color selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so one fixture covers a warm living room or a crisp workspace: 2235 lumens at 2700 K, 2316 at 3000 K, 2499 at 3500 K, 2514 at 4000 K and 2457 at 5000 K. The lens gives a 38° beam spread, and dimming runs from 100% down to 10% on standard forward-phase / reverse-phase and TRIAC/ELV dimmers. Input is 100-135V AC, 50/60 Hz, power factor greater than 0.90, with cETLus certification, Energy Star listing, Class II construction, an airtight durable aluminum body, wet location approval, direct contact with insulation, a projected life of 70% at 50,000 hrs and a lifetime warranty.

This one earns its place over kitchen counters, in hallways, above bathroom vanities and covered porches (wet location approved), in retail displays, restaurants, offices and condo renovations across Canada — including insulated ceilings where airtight fixtures matter. Prefer a different finish or a shorter run? See the Luna 3-light linear gimbal in white, the brushed nickel version or the 2-light black model. Add it to your cart and give your ceiling one clean line of light.

Built to last, built to aim
The LUNA RA35M-3L-9G-90BK uses a durable airtight aluminum body with adjustable gimbals, so each of the three heads tilts to put light on the surface that matters instead of the middle of the floor. An anodized blue heat sink keeps airflow around the LED light source, which is what protects lumen output and colour over the long haul. The black trim finish (BK) keeps the aperture visually quiet against dark ceilings and in spaces where you want the light, not the fixture, to be noticed. This is a linear gimbal recessed light designed for retrofit applications, and it is approved for wet locations and for direct contact with insulation.

Light quality and colour selection
A 27W LED module produces up to 2515 lumens with a typical CRI of 94 — high enough that colours in a kitchen, a boutique or a gallery stay honest. The on-fixture color selectable switch steps through 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, so you can standardize a whole floor on site rather than ordering multiple SKUs: 2700 K gives 2235 lumens, 3000 K gives 2316, 3500 K gives 2499, 4000 K gives 2514 and 5000 K gives 2457. The lens delivers a 38° beam spread, a controlled cone that works well for accenting and for general downlighting alike.

Electrical and installation
Wiring is handled by an extruded aluminum hardwire box with three 210mA dimmable class II electronic LED drivers, 100-135V AC input, plus an 18" FT6 rated cable with a DC 2.1 connector between driver and fixture, approved for use in plenums and suspended ceilings. "Quick connect" push-in terminals speed up the rough-in, and four spring loaded clips let the housing grip virtually any ceiling material. Dimming runs 100%-10% with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for the list of compatible dimmers). Operating temperature range is -20°C~40°C (-4°F~104°F).

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38°
CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Color: BK
CRI: 94
Dimming: Yes
Dimming Tech: Forward/reverse-phase TRIAC/ELV
Energy Star: Yes
Input: 100-135V AC, 50 / 60Hz
Lumens: Up to 2515
Lumens per Watt: Up to 101
Power Factor: >0.90
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 27W

Where it works and what to read
Think kitchen islands and long counters, a bank of three beams over a dining table, corridors in a condo tower, covered entrances and soffits, bathroom ceilings, hotel lobbies, cafés and retail feature walls — anywhere a single clean aperture beats a row of separate pot lights. Accessories are sold separately, and new construction jobs are typically handled with a premounting plate, a vapour barrier extender or a new construction mounting kit. Need the same look in another finish or a shorter two-head version? Compare the Luna 3-light gimbal in brushed nickel, the 2-light white model or the 3-light dim-to-warm white version. The full technical PDF (RA35M-3L-9G-90BK Spec Sheet) is in the Documentation tab for dimensions, cut-out details and the complete ordering guide.
